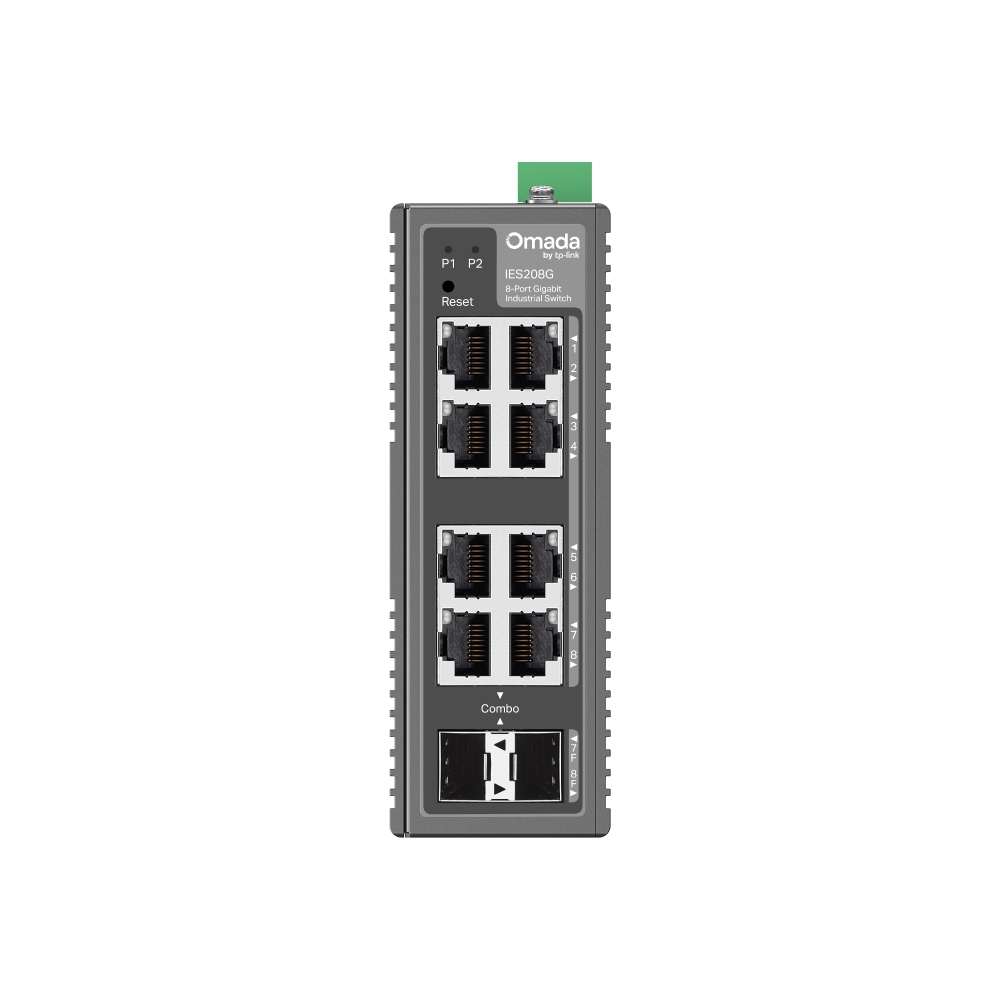

Thiết bị chuyển mạch TP-Link IES208G | Omada 8-Port Gigabit Industrial Easy Managed Switch

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng - New 100% (CO, CQ đầy đủ)
Part Number: IES208G
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0905663191 - 0901188385 - 0777621381 để có giá tốt.
Mô tả: Omada 8-Port Gigabit Industrial Easy Managed Switch

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng của Viettel Post, Nasco, 247Express và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

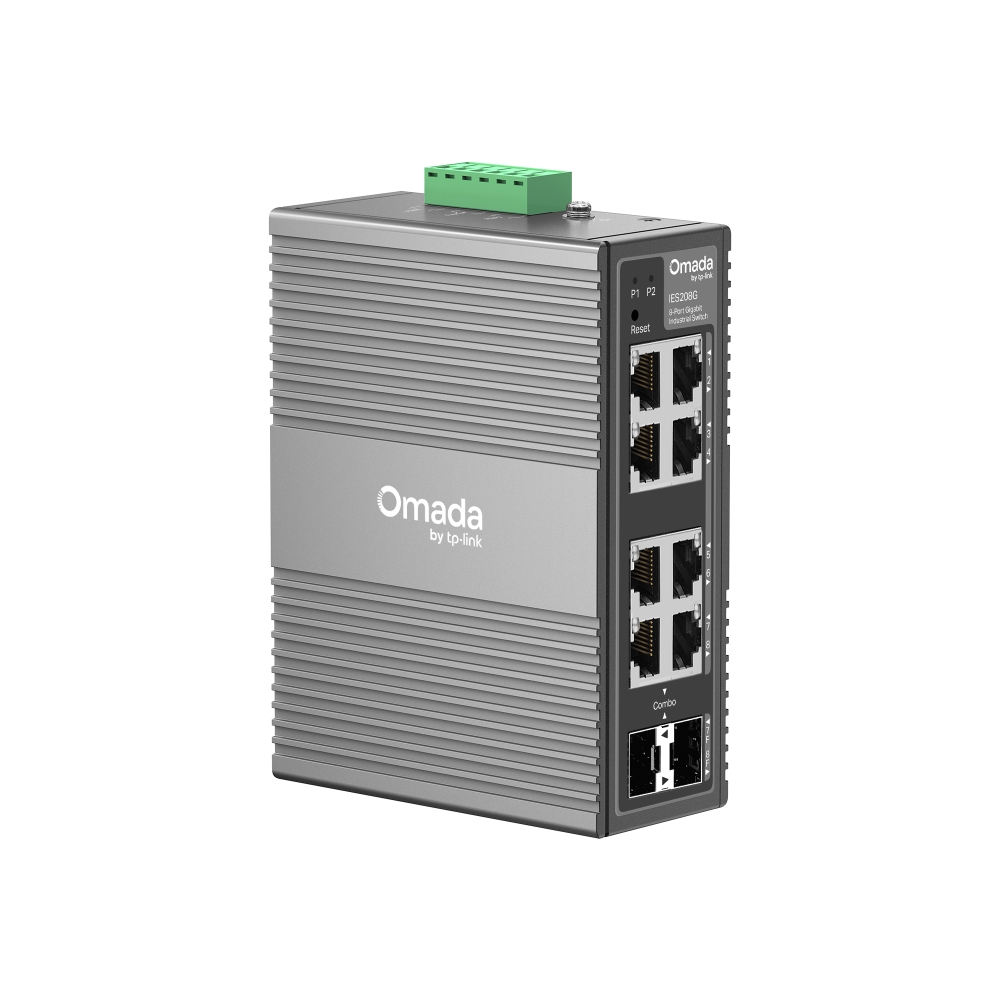

Omada Industrial 8-Port
Gigabit Easy Managed Switch

IES208G

8× Gigabit Ports
(6× RJ45, 2× RJ45/SFP Combo)
-40°C to 75°C Operating Temperature
9.6~60VDC 1+1 Redundant Power Input
Industrial-Grade IP40 Aluminum Casing
Easy Centralized Management
VLAN for Traffic Separation
STP/RSTP for Reliable Networking
DIN-Rail & Wall Mounting

Industrial-Grade Protection Built for Harsh Environments

-40°C to 75°C Operating Temperature
6kV Lightning Protection
Industrial-Grade IP40 Aluminum Casing

Enhanced Networking Stability and Security

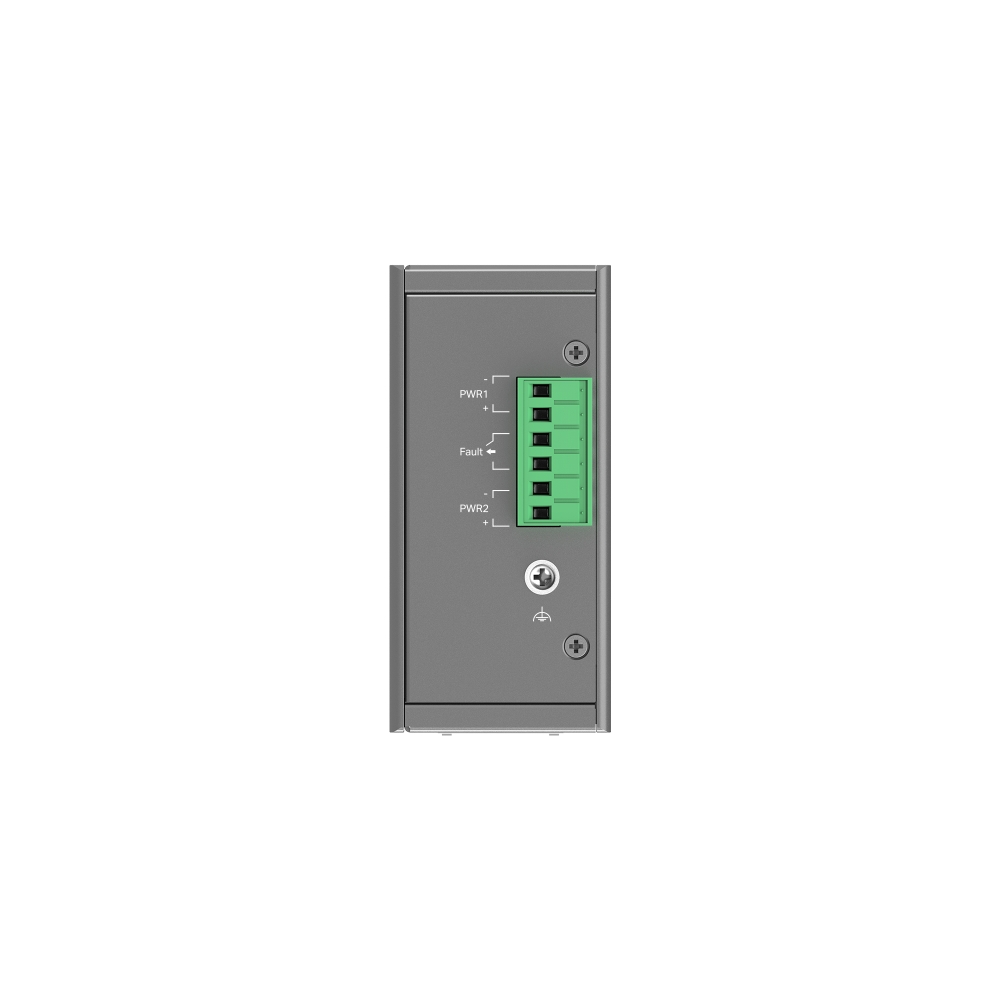

1+1 Redundant Power Input

Equipped with dual power input ports and a wide 9.6-60V DC voltage range, ensuring continuous operation even if one power supply fails.
Real-Time Fault Alarm

Connected to an external alarm, the switch outputs an alarm signal promptly if a port is disconnected or power input is abnormal.

Easy Operation and Maintenance with Omada’s Free Cloud Management

Easy to Use with
Plug-and-Play Design
and Simple
Configuration
Free and Easy
Centralized Cloud
Management via
Omada Central
Essentials
Access Logs and
Receive Alert
Notifications at Any
Time
Intelligent Network Monitoring for
Instant Topology
Views and Effortless
Troubleshooting

Flexible Deployment Options

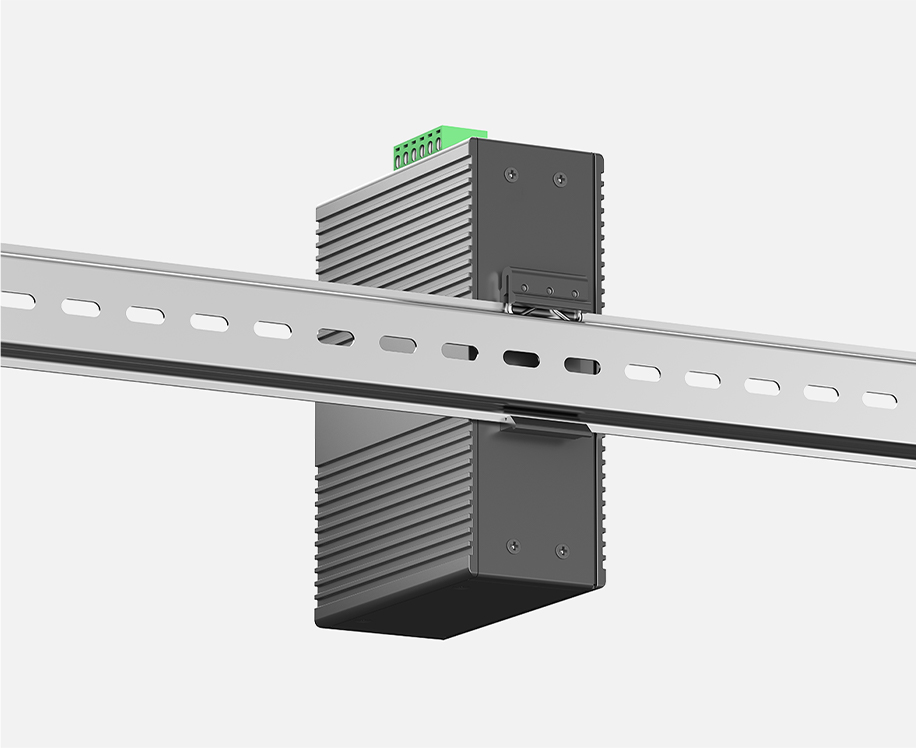

DIN-rail

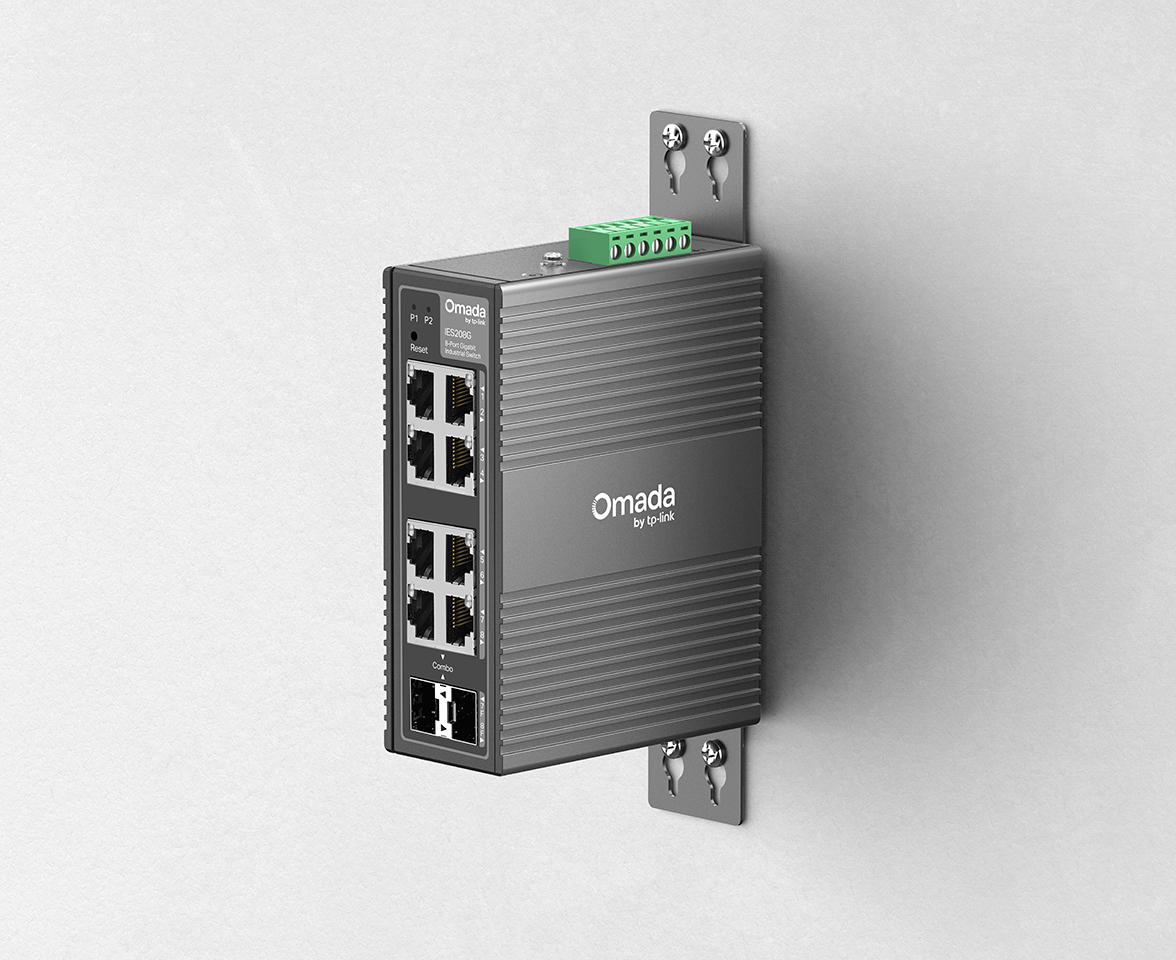

Wall-mount

Diverse Industry Applications

Surveillance
Industrial Automation

Energy
Smart Buildings

TÍNH NĂNG PHẦN CỨNG
Giao diện	• 6× 10/100/1000 Mbps RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX
Số lượng quạt	Fanless
Cài đặt	• DIN-rail mounting • Wall mounting
Bộ cấp nguồn	9.6-60V 1+1 Redundant DC Power Input
Kích thước ( R x D x C )	5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection	• ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports
HIỆU SUẤT
Switching Capacity	16 Gbps
Tốc độ chuyển gói	11.9 Mpps
Bảng địa chỉ MAC	8K
Bộ nhớ đệm gói	4 Mbit
Khung Jumbo	15 KB
TÍNH NĂNG PHẦN MỀM
Chất lượng dịch vụ	• 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control
L2 Features	• Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w)
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward
QUẢN LÝ
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Unified Configuration †
KHÁC
Chứng chỉ	FCC, CE, RoHS
Sản phẩm bao gồm	• IES208G • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide
Môi trường	• Operating Temperature: -40℃~75℃ (-40℉~167℉) • Storage Temperature: -40℃~85℃ (-40℉~185℉) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing
