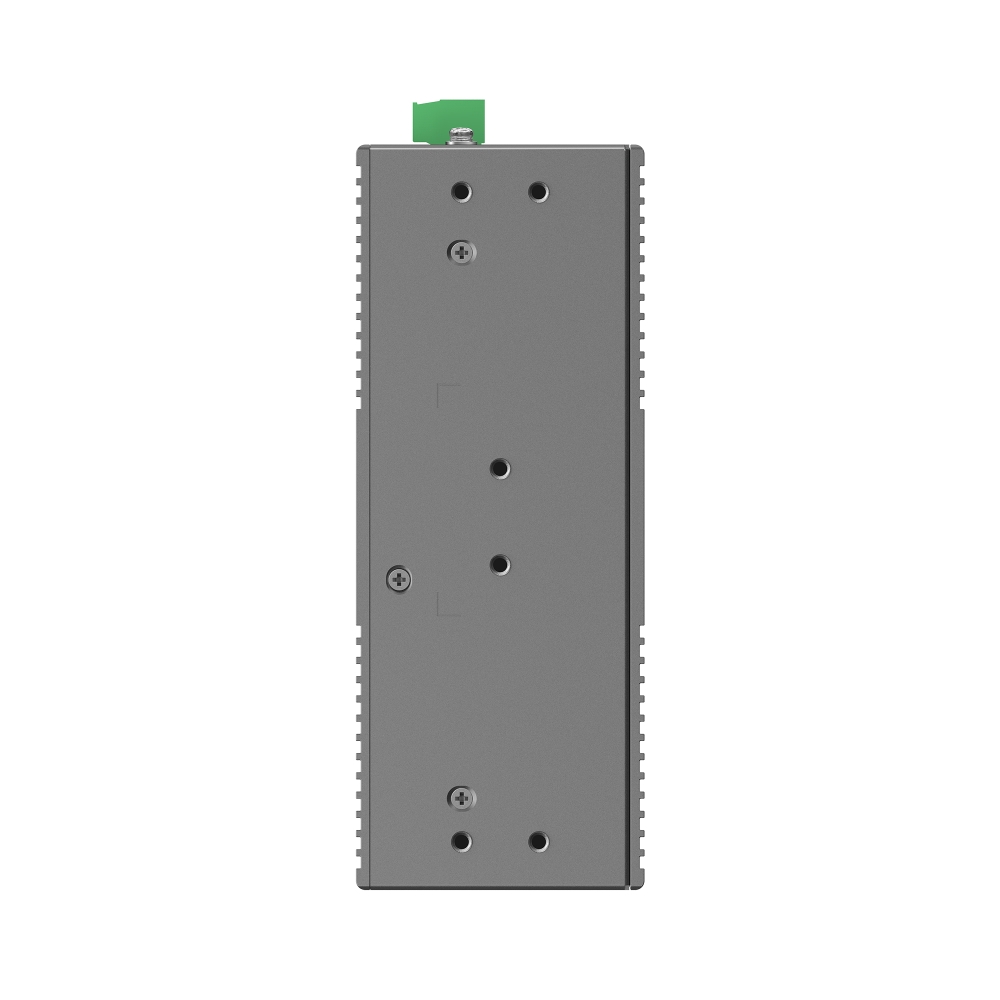

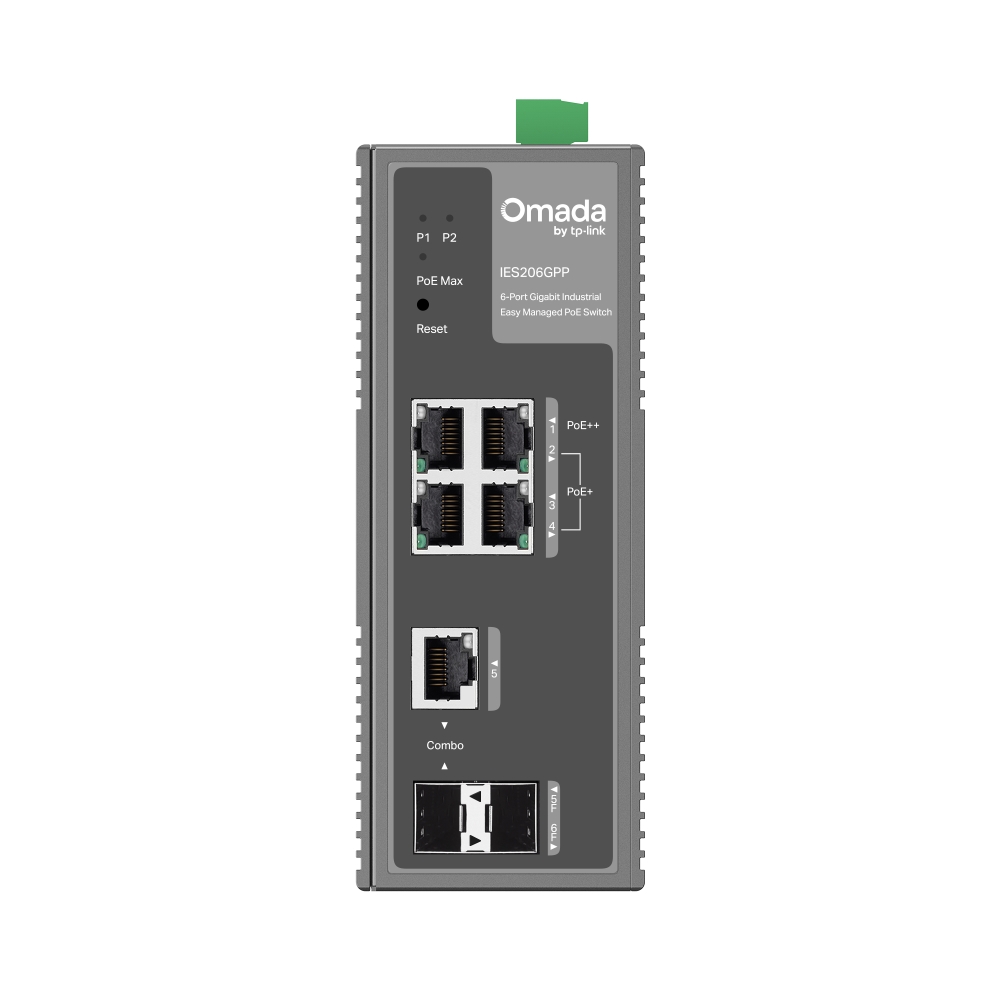

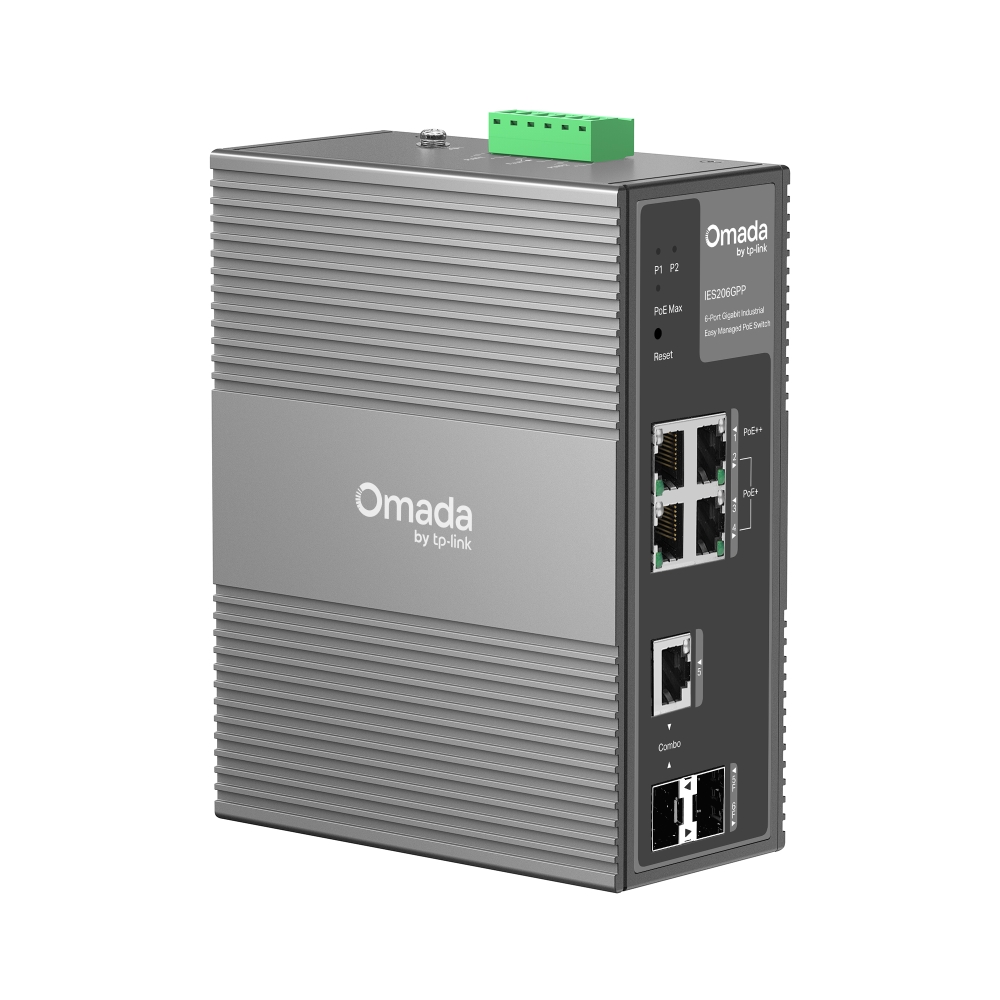

Thiết bị chuyển mạch TP-Link IES206GPP | Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng - New 100% (CO, CQ đầy đủ)
Part Number: IES206GPP
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0905663191 - 0901188385 - 0777621381 để có giá tốt.
Mô tả: Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng của Viettel Post, Nasco, 247Express và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Omada Industrial 6-Port
Gigabit Easy Managed
PoE++ Switch

IES206GPP

6× Gigabit Ports
(1× PoE++, 3× PoE+, 1× RJ45/SFP Combo, 1× SFP)
120W Total PoE
Budget*
-40°C to 75°C Operating Temperature
12~57VDC 1+1
Redundant Power
Input
Industrial-Grade IP40 Aluminum Casing
Abundant Functions for CCTV Networking
Easy Centralized Management
DIN-Rail & Wall Mounting

Industrial-Grade Protection Built for Harsh Environments

-40°C to 75°C Operating Temperature
6kV Lightning Protection
Industrial-Grade IP40 Aluminum Casing

Enhanced Networking Stability and Security

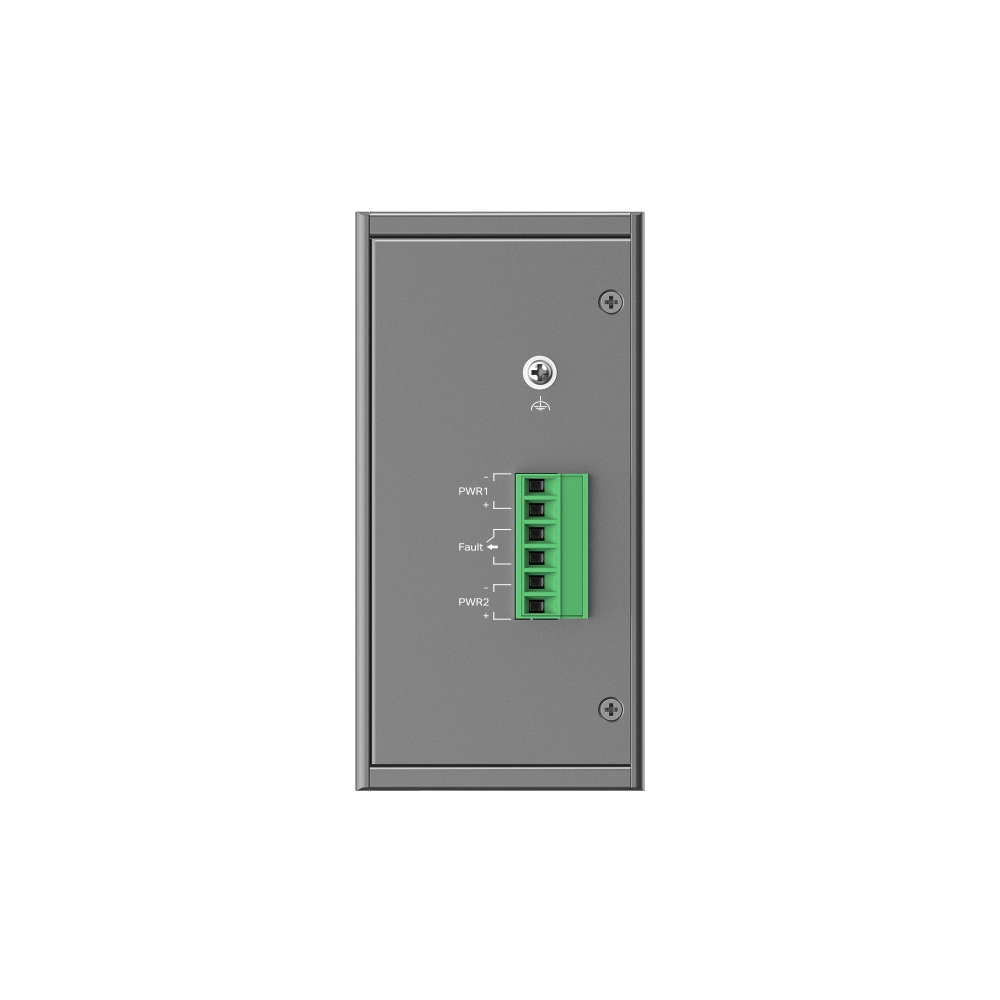

1+1 Redundant Power Input

Equipped with dual power input ports and a wide 12-57V DC voltage range, ensuring continuous operation even if one power supply fails.
Real-Time Fault Alarm

Connected to an external alarm, the switch outputs an alarm signal promptly if a port is disconnected or power input is abnormal.

Gigabit PoE++ Ports for Reliable
High-Power Device Support

1× Gigabit

PoE++

RJ45 Ports
3× Gigabit

PoE+

RJ45 Ports
Budget up to

60W

per PoE++ Port
Total

120W

PoE Power*

Easy Operation and Maintenance with Omada’s Free Cloud Management

Easy to Use with
Plug-and-Play Design
and Simple
Configuration
Free and Easy
Centralized Cloud
Management via
Omada Central
Essentials
Access Logs and
Receive Alert
Notifications at Any
Time
Easily Configure Surveillance Features
Like 24/7 Camera
Monitoring &
Automatic Recovery

Flexible Deployment Options

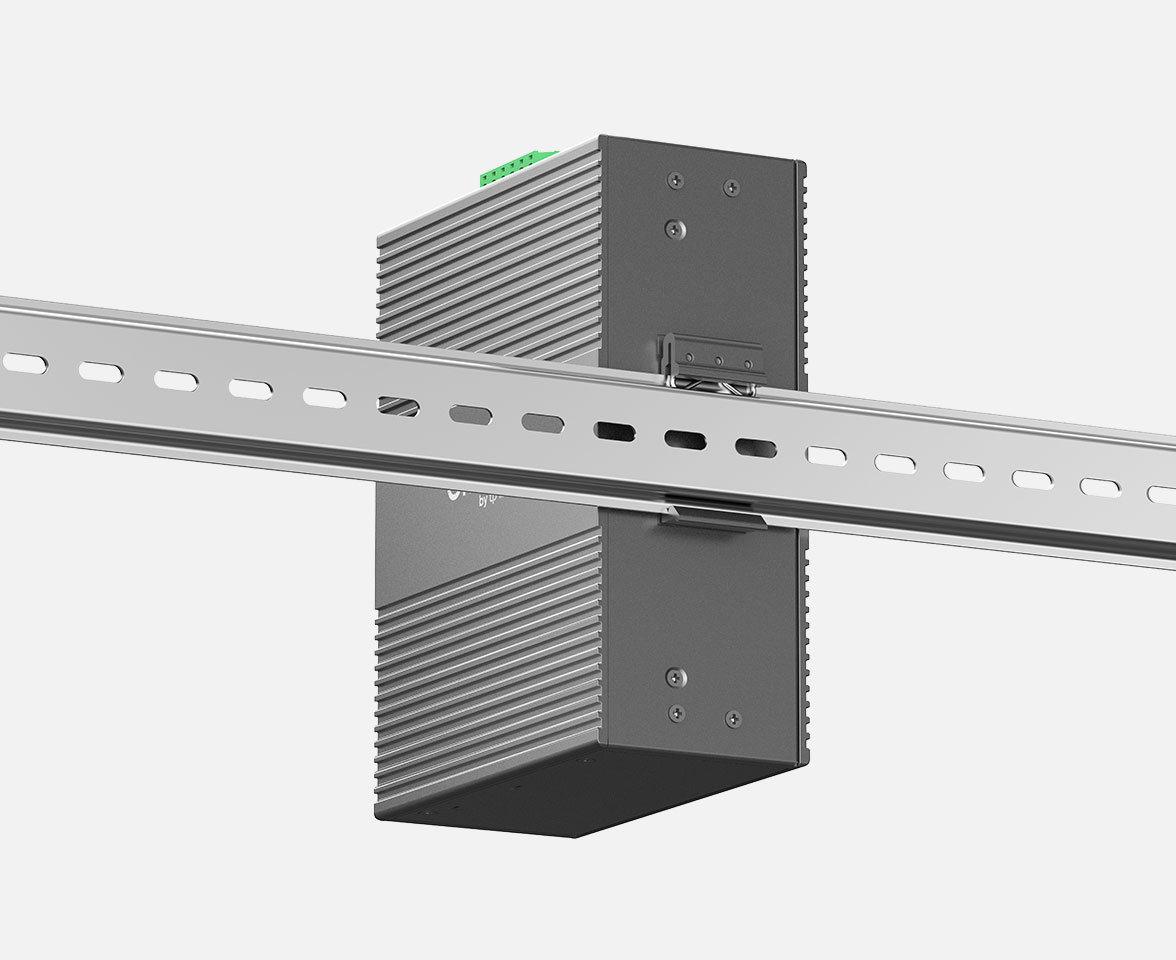

DIN-rail

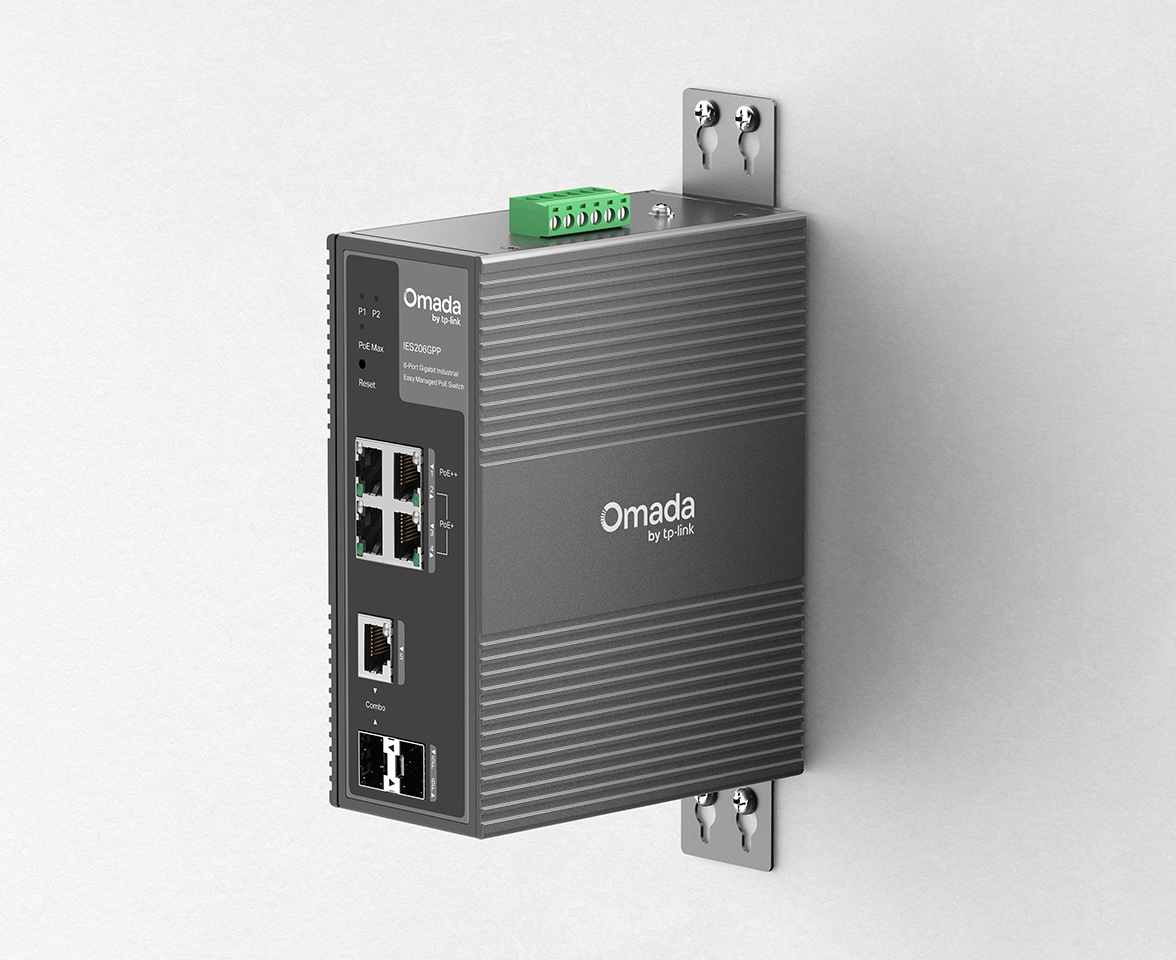

Wall-mount

Diverse Industry Applications

Surveillance
Industrial Automation

Energy
Smart Buildings

TÍNH NĂNG PHẦN CỨNG
Giao diện	• 1× 10/100/1000 Mbps PoE++ RJ45 Ports • 3× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× Gigabit SFP/RJ45 Combo Slot • 1× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX
Số lượng quạt	Fanless
Cài đặt	• DIN-rail mounting • Wall mounting
Khóa bảo mật vật lý	√
Bộ cấp nguồn	12-57V 1+1 Redundant DC Power Input
Cổng PoE (RJ45)	• Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port • PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.0A - 21V / 3.5A)) - 120W (Input: 21V / 6.5A - 57V / 2.3A)
Kích thước ( R x D x C )	6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
Surge Protection	• ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports
HIỆU SUẤT
Switching Capacity	12 Gbps
Tốc độ chuyển gói	8.93 Mpps
Bảng địa chỉ MAC	8K
Bộ nhớ đệm gói	4 Mbit
Khung Jumbo	15 KB
TÍNH NĂNG PHẦN MỀM
Chất lượng dịch vụ	• 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control
L2 Features	• Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w)
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward
QUẢN LÝ
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery † • Batch Configuration † • Batch Firmware Upgrading † • Unified Configuration †
KHÁC
Chứng chỉ	FCC, CE, RoHS
Sản phẩm bao gồm	• IES206GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide
Môi trường	• Operating Temperature: -40℃~75℃ (-40℉~167℉) • Storage Temperature: -40℃~85℃ (-40℉~185℉) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing
