Easy Managed Switch Omada 20 cổng Gigabit với 16 cổng PoE+
- 16 cổng RJ45 PoE+ Gigabit tương thích 802.3af/at
- 2 cổng RJ45 Gigabit, 2 cổng SFP Gigabit
- Nguồn điện 250W, với tối đa 30W cho mỗi cổng PoE*
Easy Managed Switch Omada 20 cổng Gigabit với 16 cổng PoE+
Mới ra mắt

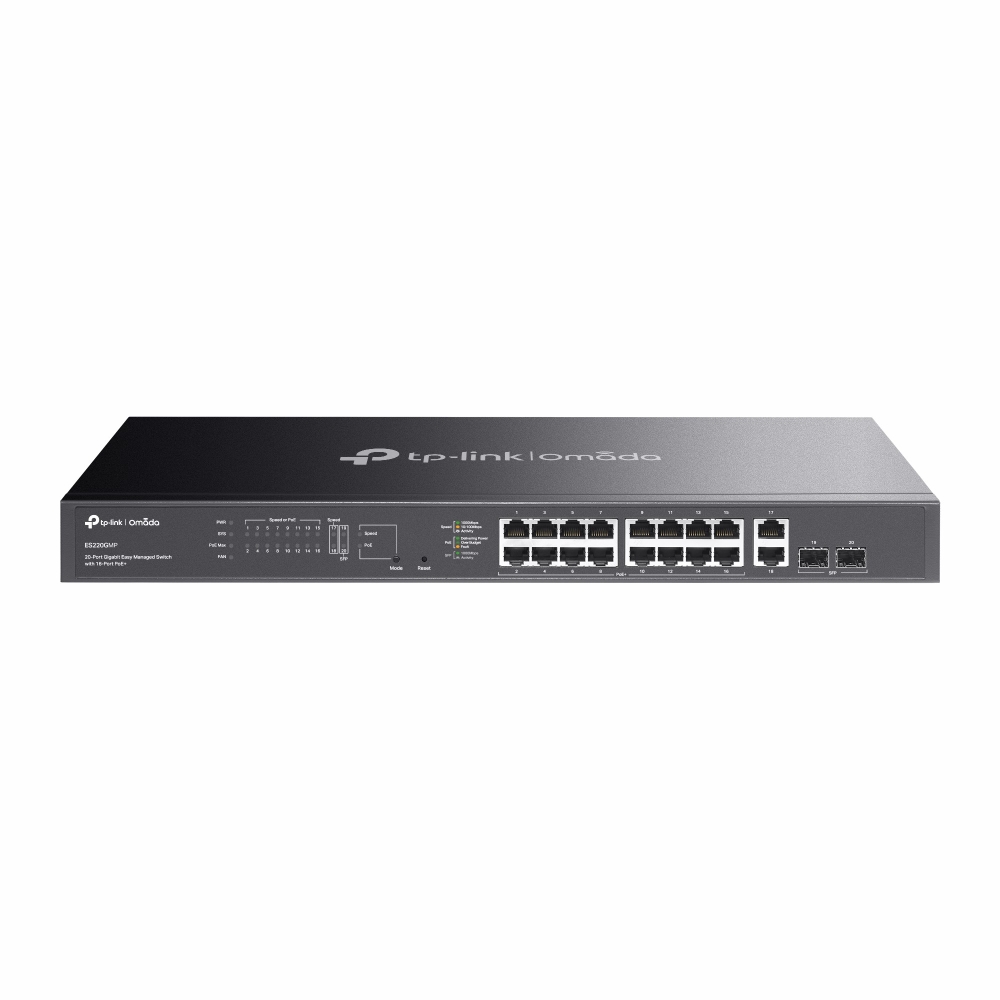

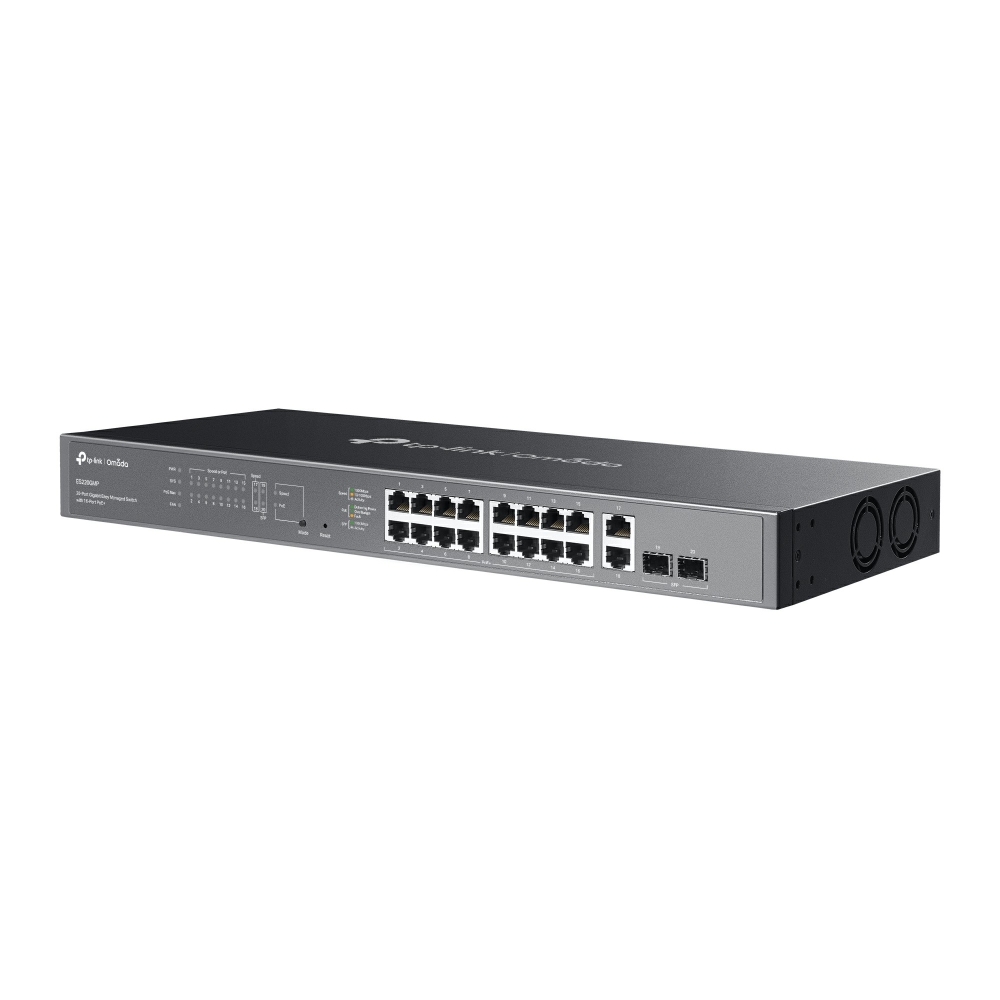

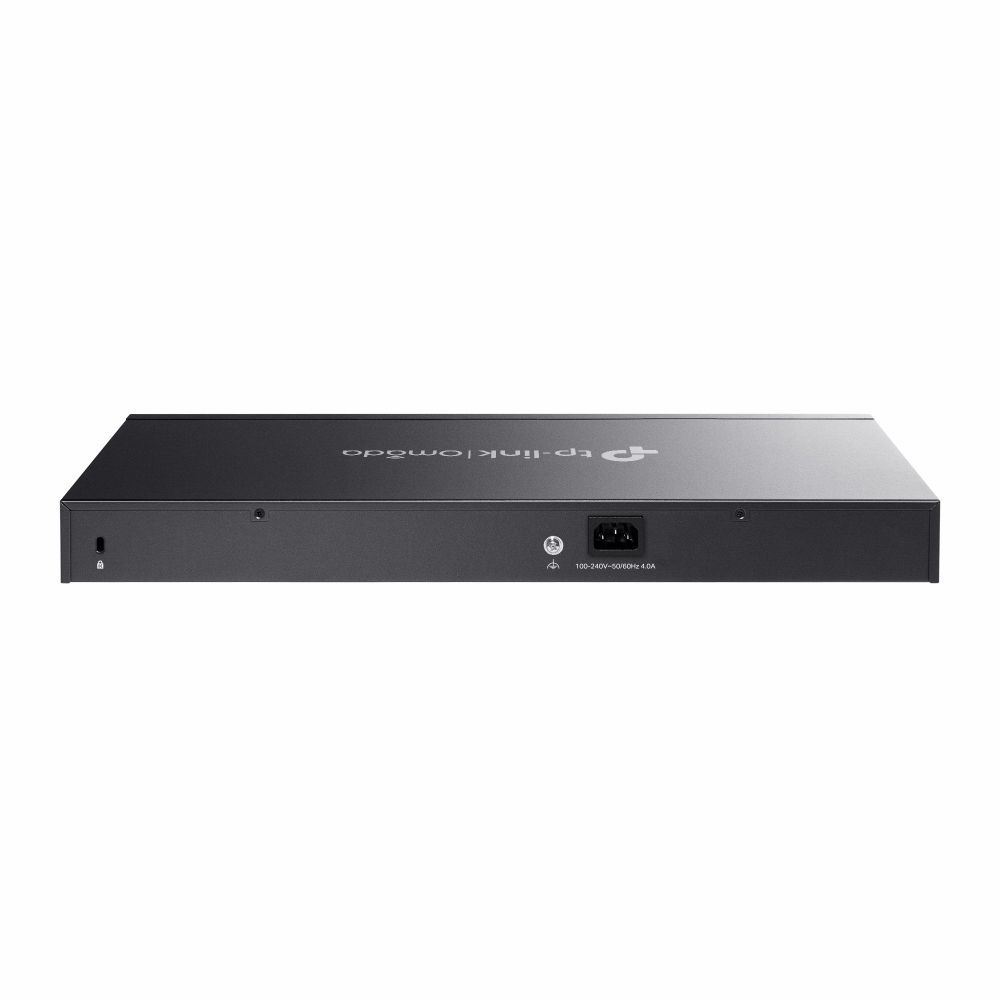

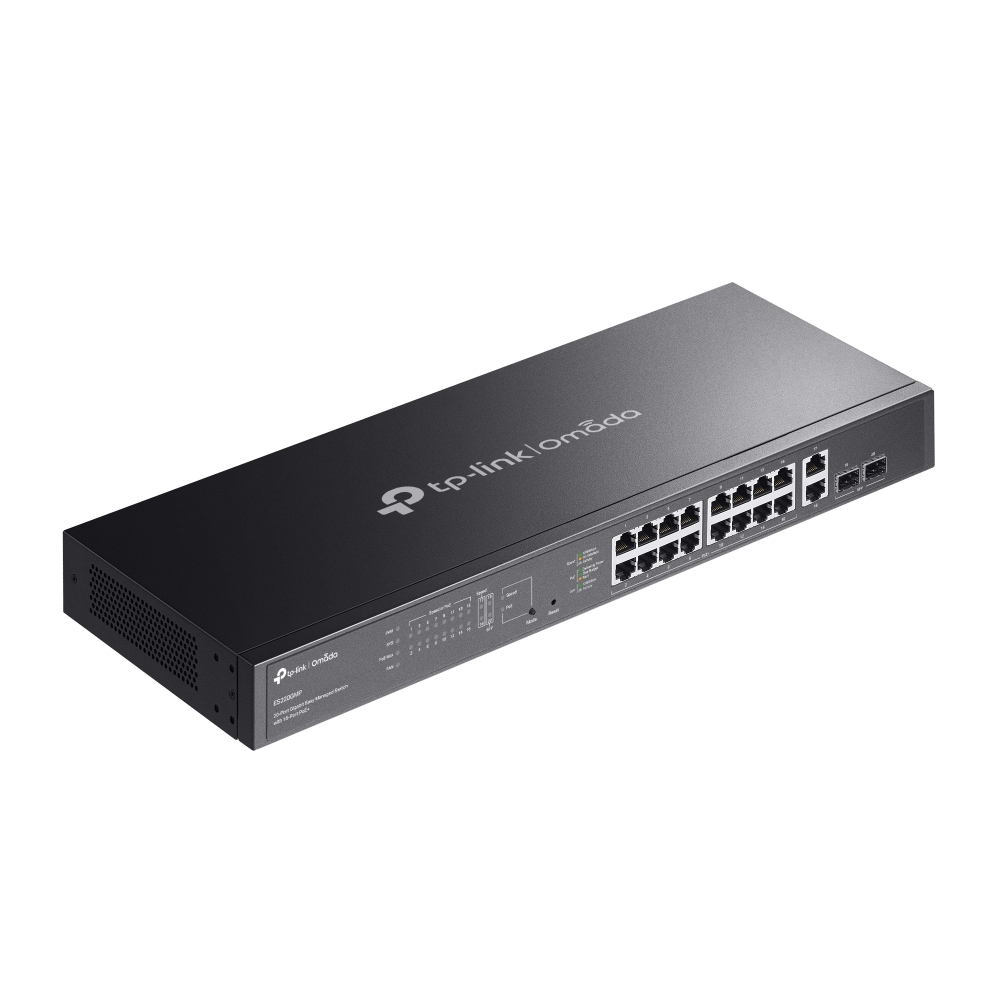

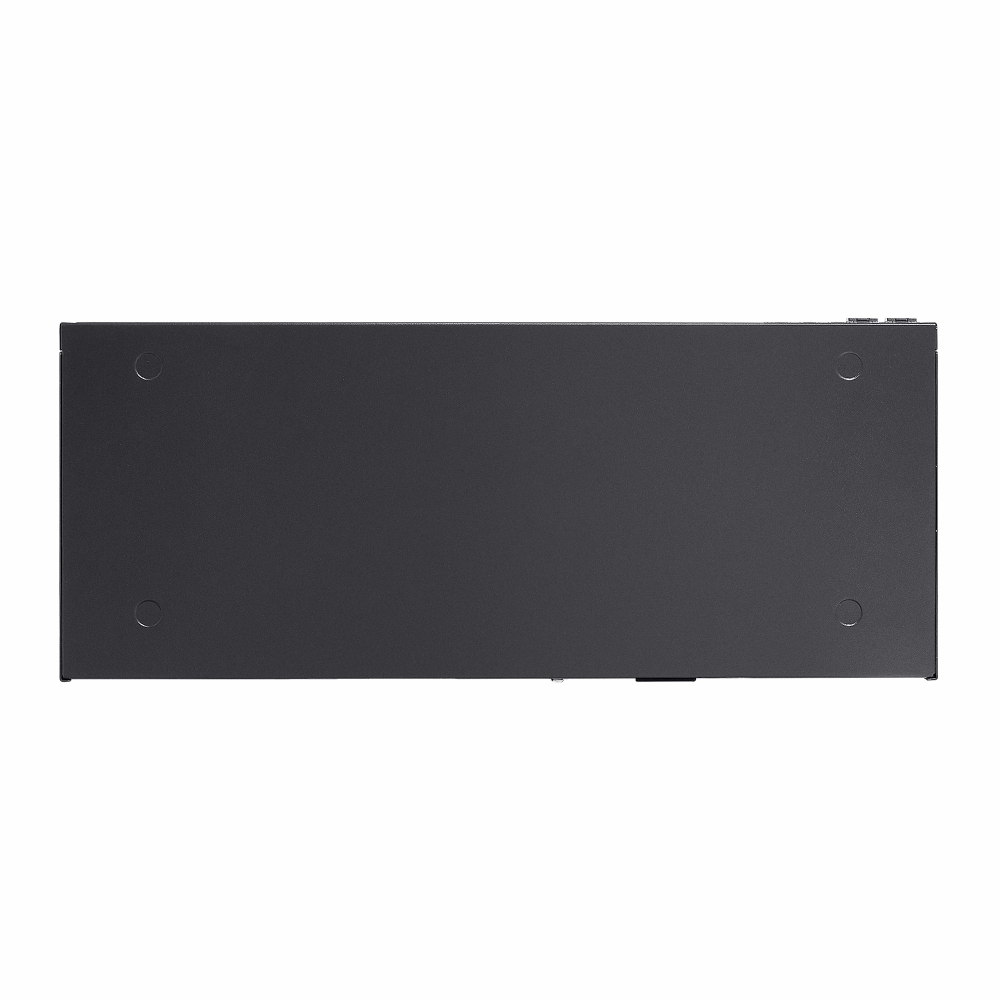

Easy Managed Switch Omada 20 cổng Gigabit với 16 cổng PoE+
ES220GMP
Mới ra mắtTÍNH NĂNG PHẦN CỨNG | |
---|---|
Giao diện | • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 2× 10/100/1000 Mbps RJ45 Port • 2× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX |
Số lượng quạt | 2 |
Cài đặt | Rackmountable |
Khóa bảo mật vật lý | √ |
Bộ cấp nguồn | 100–240V AC, 50/60Hz |
Cổng PoE (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 16 ports • PoE Budget: 250W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** |
Kích thước ( R x D x C ) | 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm) |
Surge Protection | ±6kV |
HIỆU SUẤT | |
---|---|
Switching Capacity | 40 Gbps |
Tốc độ chuyển gói | 29.76 Mpps |
Bảng địa chỉ MAC | 8K |
Bộ nhớ đệm gói | 4 Mbit |
Khung Jumbo | 15 KB |
TÍNH NĂNG PHẦN MỀM | |
---|---|
Chất lượng dịch vụ | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ |
L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
Transmission Method | Store-And-Forward |
QUẢN LÝ | |
---|---|
Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
KHÁC | |
---|---|
Chứng chỉ | FCC, CE, RoHS |
Sản phẩm bao gồm | • ES220GMP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide |
Môi trường | • Operating Temperature: -5℃~50℃ (23℉~122℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
