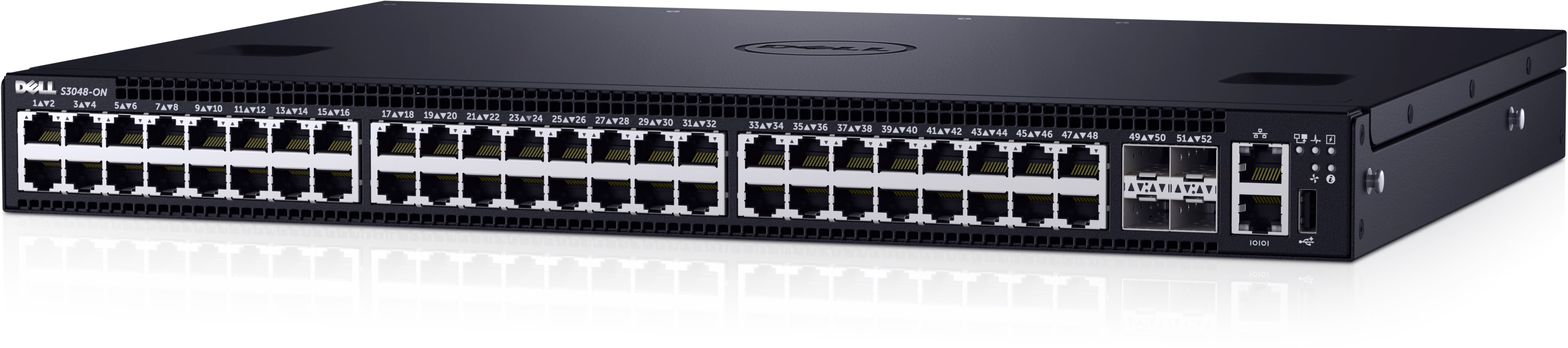

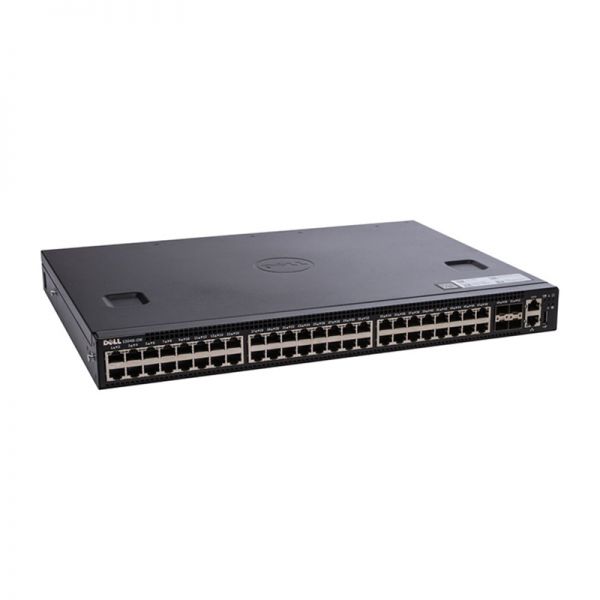

Thiết bị chuyển mạch switch Dell S3048-ON

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: S3048-ON
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0396827937 - 0901188385 để có giá tốt.
Mô tả: Thiết bị chuyển mạch Switch Dell EMC Networking S3048-ON S Series with 48x RJ45 auto-sensing (1Gb/100Mb/10Mb) fixed ports, 4x 10GbE SFP+ Uplink, 1 x AC PSU.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Thiết bị chuyển mạch Switch Dell EMC Networking S3048-ON S Series with 48x RJ45 auto-sensing (1Gb/100Mb/10Mb) fixed ports, 4x 10GbE SFP+ Uplink, 1 x AC PSU.

Thông số kỹ thuật Dell EMC S3048-ON

Product	Description

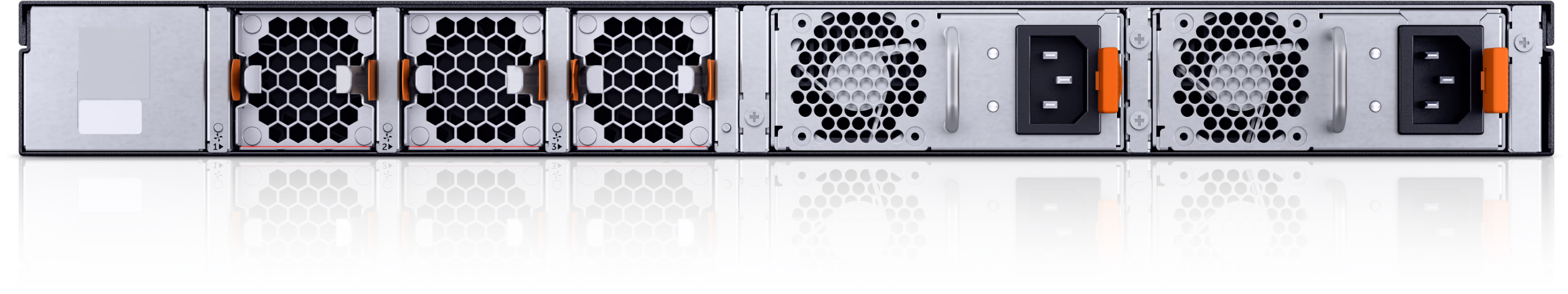

S3048-ON	S3048-ON 1000BASE-T, 48 x 1000BASE-T, 4 x SFP+, 1 x AC PSU, 3 x Fans, IO I/O Panel to PSU Airflow S3048-ON 1000BASE-T, 48 x 1000BASE-T, 4 x SFP+, 1 x AC PSU, 3 x Fans, PSU to I/O Panel Airflow S3048-ON 1000BASE-T, 48 x 1000BASE-T, 4 x SFP+, 1 x AC PSU, 3 x Fans, I/O Panel to PSU Airflow, TAA S3048-ON 1000BASE-T, 48 x 1000BASE-T, 4 x SFP+, 1 x AC PSU, 3 x Fans, PSU to I/O Panel Airflow, TAA
Performance
Switching capacity (full duplex)	260Gbps (full-duplex) 130 Gbps (half-duplex
Forwarding Capacity (Mpps)	131 Mpps
Buffer size	4MB
Latency (microseconds)	3.7 microseconds
CPU memory	2GB
Flash Memory	8GB SSD
Ports
1GBase-T	48
1GbE SFP	4
10 GbE SFP+	4
Chassis
Optics	Transceiver, SFP, 100BASE-FX, 1310nm wavelength, up to 2km reach Transceiver, SFP, 1000BASE-T Transceiver, SFP, 1000BASE-SX, 850nm wavelength, up to 550m reach Transceiver, SFP, 1000BASE-LX, 1310nm wavelength, up to 10km reach Transceiver, SFP, 1000BASE-ZX, 1550nm wavelength, up to 80km reach Transceiver, SFP+, 10GbE, LRM, 1310nm wavelength, up to 220m reach Transceiver, SFP+, 10GbE, SR, 850nm wavelength, up to 300m reach Transceiver, SFP+, 10GbE, LR, 1310nm wavelength, up to 10km reach Transceiver, SFP+, 10GbE, ER, 1550nm wavelength, up to 40km reach Transceiver, SFP+, 10GbE, ZR, 1550nm wavelength, up to 80km reach
Cables	Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 0.5m Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 1m Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 3m Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 5m Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 7m Dell Networking Cable, SFP+ to SFP+, 10GbE, Active Optical Cable, 15m
Dimensions in inches (H x W x D)	1.7126 x 17.0866 x 16.0236
Dimensions in millimeters (H X W X D)	43.5 x 434.0 x 407.0
Approximate Weight in pounds (without modules)	12.8 pounds
Approximate Weight in kilograms (without modules)	5.8 kilograms
Max Thermal Output (BTU/hr)	290 BTU/hr (Max, 87W, 216 BTU/hr) (Typical, 65W)
Power Consumption Max (Watts)	87 W
Environmental Operating Conditions
Operating Temperature in Celsius	0° to 45° C
Operating Temperature in Fahrenheit	32° to 113° F
Storage Temperature in Celsius	-40° to 65° C
Storage Temperature in Fahrenheit	-40° to 149° F
Operating Relative Humidity	95%
Storage Relative Humidity	85%
Power Supply Efficiency	80% or better in all operating modes
