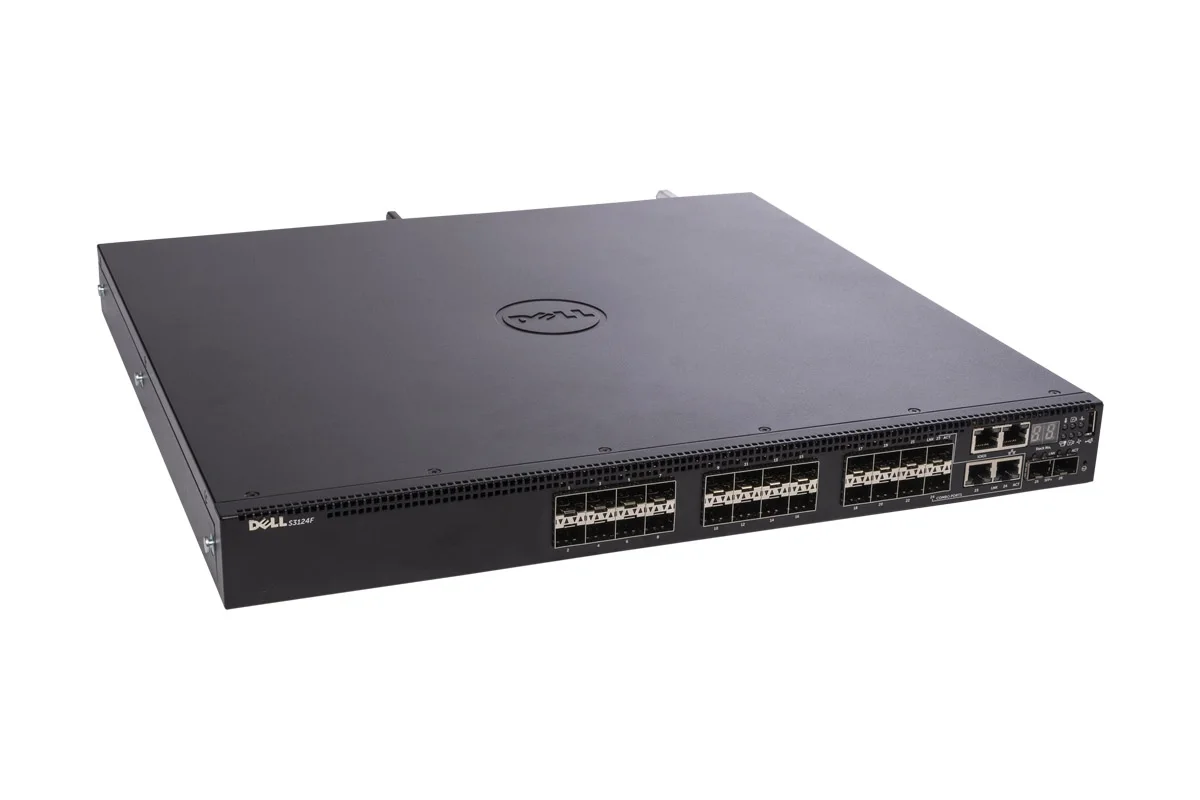

Thiết bị chuyển mạch Dell PowerSwitch S3124F

NONE

Giá: Liên hệ

Tình trạng: Hàng chính hãng, new 100%, fullbox
Part Number: S3124F
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0396827937 - 0901188385 để có giá tốt.
Mô tả: Thiết bị chuyển mạch Switch Dell EMC Networking S3124F S Series Stackable with 24 Ports 1GE SFP, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 200W PSU included.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Thiết bị chuyển mạch Switch Dell EMC Networking S3124F S Series Stackable with 24 Ports 1GE SFP Layer 3, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 200W PSU included.

Thông số kỹ thuật Dell EMC S3124F

Product	Description
S3124F	L3, 24x 1GbE SFP, 2xCombo, 2x 10GbE SFP+ fixed ports, Stacking, IO to PSU air, 1x AC PSU
Performance
Switch fabric capacity	212Gbps
Forwarding rate	158Mpps
Flash memory	1G
Packet buffer memory	4MB
CPU memory	2GB DDR3
Physical	2 rear stacking ports (21Gbps) supporting up to 84Gbps (full- duplex) 2 integrated front 10GbE SFP+ dedicated ports Out-of-band management port (10/100/1000BASE-T) USB (Type A) port for configuration via USB flash drive Auto-negotiation for speed and flow control Auto-MDI/MDIX, port mirroring Energy-Efficient Ethernet per port settings Redundant variable speed fans Air flow: I/O to power supply RJ45 console/management port with RS232 signaling (RJ-45 to female DB-9 connector cable included) Dual firmware images on-board Switching engine model: Store and forward
Chassis
Modules (optional)	2-port 10GBASE-T RJ-45 hot swappable uplink module 2-port 10GbE SFP+ hot swappable uplink module
Power supplies	200W AC hot swappable with V-Lock, adds redundancy to non-PoE switches
Optics (optional)	Transceiver, SFP, 100BASE-FX, 1310nm wavelength, up to 2km reach Transceiver, SFP, 1000BASE-T Transceiver, SFP, 1000BASE-SX, 850nm wavelength, up to 550m reach Transceiver, SFP, 1000BASE-LX, 1310nm wavelength, up to 10km reach Transceiver, SFP, 1000BASE-ZX, 1550nm wavelength, up to 80km reach Transceiver, SFP+, 10GbE, LRM, 1310nm wavelength, up to 220m reach Transceiver, SFP+, 10GbE, SR, 850nm wavelength, up to 300m reach Transceiver, SFP+, 10GbE, LR, 1310nm wavelength, up to 10km reach Transceiver, SFP+, 10GbE, ER, 1550nm wavelength, up to 40km reach
Cables (optional)	Stacking cable 0.25m, 1m and 3m Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 0.5m, 1m, 3m, 5m and 7m
Size (1RU)	1.7126in x 17.0866in x 16.0236in (43.5mm x 434.0mm x 407.0mm) (H x W x D)
Weight	6kg

Thông số kỹ thuật Dell EMC S3124F

Product	Description
S3124F	L3, 24x 1GbE SFP, 2xCombo, 2x 10GbE SFP+ fixed ports, Stacking, IO to PSU air, 1x AC PSU
Performance
Switch fabric capacity	212Gbps
Forwarding rate	158Mpps
Flash memory	1G
Packet buffer memory	4MB
CPU memory	2GB DDR3
Physical	2 rear stacking ports (21Gbps) supporting up to 84Gbps (full- duplex) 2 integrated front 10GbE SFP+ dedicated ports Out-of-band management port (10/100/1000BASE-T) USB (Type A) port for configuration via USB flash drive Auto-negotiation for speed and flow control Auto-MDI/MDIX, port mirroring Energy-Efficient Ethernet per port settings Redundant variable speed fans Air flow: I/O to power supply RJ45 console/management port with RS232 signaling (RJ-45 to female DB-9 connector cable included) Dual firmware images on-board Switching engine model: Store and forward
Chassis
Modules (optional)	2-port 10GBASE-T RJ-45 hot swappable uplink module 2-port 10GbE SFP+ hot swappable uplink module
Power supplies	200W AC hot swappable with V-Lock, adds redundancy to non-PoE switches
Optics (optional)	Transceiver, SFP, 100BASE-FX, 1310nm wavelength, up to 2km reach Transceiver, SFP, 1000BASE-T Transceiver, SFP, 1000BASE-SX, 850nm wavelength, up to 550m reach Transceiver, SFP, 1000BASE-LX, 1310nm wavelength, up to 10km reach Transceiver, SFP, 1000BASE-ZX, 1550nm wavelength, up to 80km reach Transceiver, SFP+, 10GbE, LRM, 1310nm wavelength, up to 220m reach Transceiver, SFP+, 10GbE, SR, 850nm wavelength, up to 300m reach Transceiver, SFP+, 10GbE, LR, 1310nm wavelength, up to 10km reach Transceiver, SFP+, 10GbE, ER, 1550nm wavelength, up to 40km reach
Cables (optional)	Stacking cable 0.25m, 1m and 3m Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 0.5m, 1m, 3m, 5m and 7m
Size (1RU)	1.7126in x 17.0866in x 16.0236in (43.5mm x 434.0mm x 407.0mm) (H x W x D)
Weight	6kg
