Phatsongwifi
Mỹ Thương hiệu: Ruckus

Ruckus ZoneFlex R700 Dual Band 802.11ac

Sale Off
Giá: Liên hệ
Bảo hành:
Tình trạng
Like new 99%
Part Number
R700
Kho hàng
Còn hàng
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0901188385 - 0907591863 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây
Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Indoor 802.11ac Wi-Fi Access Point for Ultra-Dense Device Environments

The busiest indoor venues demand the highest Wi-Fi capacity and performance. But with extreme client densities and nonstop RF interference, they also present

ZoneFlex Ruckus R700 Wireless Access Point

Nhà sản xuất : Ruckus
Xuất xứ : Malaysia , công nghệ : Mỹ
Mã sản phẩm : 901-R700-US
Hỗ trợ hai băng tần đồng thời 5GHz và 2.4 GHz
Tốc độ truyền tải : 450 Mbps (2.4GHz) and 1300 Mbps (5GHz)
Khả năng hỗ trợ lên tời 500 Client trên một AP
Sử dụng công nghệ ăngten thích nghi và nâng cao quản lý RF(sóng vô tuyến)
Mô hình Ăngten : Trên 3000 mô hình
Nguồn PoE(Power over Ethernet) chuẩn 802.3af

Physical Characteristics

Power DC Input: 12 VDC 1.5A
PoE: 802.3af compliant
Physical Size 20.3 cm (L), 20.3 cm (W), 5 cm (H)
(7.99 in, 7.99 in, 1.99 in)
Weight 1kg (2.25 lbs.)
RF (1,2,3)

Adaptive antenna array that provides 3,000+ unique antenna patterns
Maximum Transmit Power1 24 dBm on 2.4 GHz; 22 dBM on 5 GHz
Physical antenna gain: 3 dBi (2.4 and 5GHz)
BeamFlex SINR Tx gain2: up to 6 dB
BeamFlex SINR Rx gain: up to 4 dB
Interference mitigation: up to 15 dB
Minimum Rx sensitivity3: -99 dBm

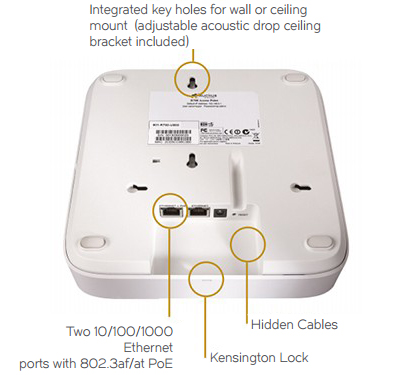

Ethernet Ports 2 ports, auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45
Power over Ethernet (802.3af) with Category 5/5e/6 cable
Environmental Conditions Operating Temperature: 32°F (0°C) - 122°F (50°C
Operating Humidity: up to 95% non-condensing
Power Consumption 5W (minimum)
7W (typical)
13W (peak)



Performance and Capacity


PHY Data Rates Up to 450 Mbps (2.4GHz)
Up to 1300Mbps (5GHz)
Concurrent Stations Up to 500
Simultaneous VoIP Clients Up to 60 (802.11e/WMM support), 30 per radio



Network Architecture

IP IPv4, IPv6, dual-stack
VLANs 802.1Q (1 per BSSID or dynamic, per user based on RADIUS)
Port-based
802.1x for Wired Ports Authenticator
Supplicant
Tunneling

L2TP, PPPoE



Multimedia and Quality of Service

802.11e/WMM Supported
Software Queues Per WLAN priority (2), Per traffic type (4), per client
Traffic Classification Automatic, heuristics and TOS based or VLAN-defined
Rate Limiting

Dynamic per-user or per-WLAN



Management

Deployment Options Standalone (individually managed)
Managed by ZoneDirector
Managed by FlexMaster
Configuration Web User Interface (HTTP/S)
CLI (Telnet/SSH), SNMP v1, 2, 3
TR-069 vis FlexMaster
Auto Software Updates FTP or TFTP, remote auto available



Wi-Fi

Standards IEEE 802.11a/b/g/n/ac
2.4GHz and 5GHz concurrent operation
Supported Data Rates 802.11ac: 29.3 Mbps – 1300 Mbps (80MHz)
802.11n: 6.5 Mbps – 216.7 Mbps(20MHz) 13.5 Mbps – 450 Mbps (40MHz)
802.11a: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
802.11b: 11, 5.5, 2 and 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
Radio Chains / Streams 3 x 3:3
Channelization

20 MHz, 40 MHz, and/or 80 MHz
Frequency Band IEEE 802.11ac: 5.15 – 5.85 GHz
IEEE 802.11a/n: 5.15 – 5.85 GHz
IEEE 802.11b: 2.4 – 2.484 GHz
Operating Channels US/Canada: 1-11, Europe ( ETSI X30): 1-13, Japan X41: 1-13
5 GHz channels: Country dependent
BSSIDs Up to 32 (2.4 GHz)
Up to 8 (5 GHz)
Power Save Supported
Certifications* WEEE/RoHS compliance
EN 60601-1-2 (Medical)
Wi-Fi Alliance certified (Pending)
UL 2043 plenum rated
Subway and Railroad Certifications EN50121-1 EMC
EN50121-4 Immunity
IEC 61373 Shock & Vibration

Zonflex R700 deployment





some of the biggest wireless challenges.

The Ruckus R700 is the perfect combination of performance and affordability for high-density environments, delivering the industry’s best price/performance of any three-stream 802.11ac AP. It uses patented Ruckus technologies to extend range, mitigate interference, and deliver reliable, blazing fast data rates (up to 1300 Mbps) in the busiest environments.

In airports, university campuses, convention centers, and other dense public venues, look to the R700 to deliver great Wi-Fi experiences to every user, every time.



Stunning Wi-Fi Performance
Provide a great user experience no matter how challenging the environment with BeamFlex+ adaptive antenna technology and a library of 4K+ directional antenna patterns.
Get Optimal Throughput
ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
Multiple Management Options
Manage the R700 from the cloud, or with on-premises physical/virtual appliances.
Better Mesh Networking
Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks.
Expanded Backhaul
Pair two onboard 1GbE ports with link aggregation (LACP) to maximize throughput between the AP and wired switch.
Power Efficient
Full design feature capability for 5GHz clients with 802.3af (PoE) allows enterprises to use existing switches without costly upgrades.
More Than Wi-Fi
Enhance your network with Cloudpath security and management software, SPoT real-time Wi-Fi location engine and analytics software, and SCI network analytics.

Indoor 802.11ac Wi-Fi Access Point for Ultra-Dense Device Environments

The busiest indoor venues demand the highest Wi-Fi capacity and performance. But with extreme client densities and nonstop RF interference, they also present

ZoneFlex Ruckus R700 Wireless Access Point

Nhà sản xuất : Ruckus
Xuất xứ : Malaysia , công nghệ : Mỹ
Mã sản phẩm : 901-R700-US
Hỗ trợ hai băng tần đồng thời 5GHz và 2.4 GHz
Tốc độ truyền tải : 450 Mbps (2.4GHz) and 1300 Mbps (5GHz)
Khả năng hỗ trợ lên tời 500 Client trên một AP
Sử dụng công nghệ ăngten thích nghi và nâng cao quản lý RF(sóng vô tuyến)
Mô hình Ăngten : Trên 3000 mô hình
Nguồn PoE(Power over Ethernet) chuẩn 802.3af

Physical Characteristics

Power DC Input: 12 VDC 1.5A
PoE: 802.3af compliant
Physical Size 20.3 cm (L), 20.3 cm (W), 5 cm (H)
(7.99 in, 7.99 in, 1.99 in)
Weight 1kg (2.25 lbs.)
RF (1,2,3)

Adaptive antenna array that provides 3,000+ unique antenna patterns
Maximum Transmit Power1 24 dBm on 2.4 GHz; 22 dBM on 5 GHz
Physical antenna gain: 3 dBi (2.4 and 5GHz)
BeamFlex SINR Tx gain2: up to 6 dB
BeamFlex SINR Rx gain: up to 4 dB
Interference mitigation: up to 15 dB
Minimum Rx sensitivity3: -99 dBm
Ethernet Ports 2 ports, auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45
Power over Ethernet (802.3af) with Category 5/5e/6 cable
Environmental Conditions Operating Temperature: 32°F (0°C) - 122°F (50°C
Operating Humidity: up to 95% non-condensing
Power Consumption 5W (minimum)
7W (typical)
13W (peak)



Performance and Capacity


PHY Data Rates Up to 450 Mbps (2.4GHz)
Up to 1300Mbps (5GHz)
Concurrent Stations Up to 500
Simultaneous VoIP Clients Up to 60 (802.11e/WMM support), 30 per radio



Network Architecture

IP IPv4, IPv6, dual-stack
VLANs 802.1Q (1 per BSSID or dynamic, per user based on RADIUS)
Port-based
802.1x for Wired Ports Authenticator
Supplicant
Tunneling

L2TP, PPPoE



Multimedia and Quality of Service

802.11e/WMM Supported
Software Queues Per WLAN priority (2), Per traffic type (4), per client
Traffic Classification Automatic, heuristics and TOS based or VLAN-defined
Rate Limiting

Dynamic per-user or per-WLAN



Management

Deployment Options Standalone (individually managed)
Managed by ZoneDirector
Managed by FlexMaster
Configuration Web User Interface (HTTP/S)
CLI (Telnet/SSH), SNMP v1, 2, 3
TR-069 vis FlexMaster
Auto Software Updates FTP or TFTP, remote auto available



Wi-Fi

Standards IEEE 802.11a/b/g/n/ac
2.4GHz and 5GHz concurrent operation
Supported Data Rates 802.11ac: 29.3 Mbps – 1300 Mbps (80MHz)
802.11n: 6.5 Mbps – 216.7 Mbps(20MHz) 13.5 Mbps – 450 Mbps (40MHz)
802.11a: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
802.11b: 11, 5.5, 2 and 1 Mbps
802.11g: 54, 48, 36, 24, 18, 12, 9 and 6 Mbps
Radio Chains / Streams 3 x 3:3
Channelization

20 MHz, 40 MHz, and/or 80 MHz
Frequency Band IEEE 802.11ac: 5.15 – 5.85 GHz
IEEE 802.11a/n: 5.15 – 5.85 GHz
IEEE 802.11b: 2.4 – 2.484 GHz
Operating Channels US/Canada: 1-11, Europe ( ETSI X30): 1-13, Japan X41: 1-13
5 GHz channels: Country dependent
BSSIDs Up to 32 (2.4 GHz)
Up to 8 (5 GHz)
Power Save Supported
Certifications* WEEE/RoHS compliance
EN 60601-1-2 (Medical)
Wi-Fi Alliance certified (Pending)
UL 2043 plenum rated
Subway and Railroad Certifications EN50121-1 EMC
EN50121-4 Immunity
IEC 61373 Shock & Vibration

Zonflex R700 deployment





some of the biggest wireless challenges.

The Ruckus R700 is the perfect combination of performance and affordability for high-density environments, delivering the industry’s best price/performance of any three-stream 802.11ac AP. It uses patented Ruckus technologies to extend range, mitigate interference, and deliver reliable, blazing fast data rates (up to 1300 Mbps) in the busiest environments.

In airports, university campuses, convention centers, and other dense public venues, look to the R700 to deliver great Wi-Fi experiences to every user, every time.



Stunning Wi-Fi Performance
Provide a great user experience no matter how challenging the environment with BeamFlex+ adaptive antenna technology and a library of 4K+ directional antenna patterns.
Get Optimal Throughput
ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support.
Multiple Management Options
Manage the R700 from the cloud, or with on-premises physical/virtual appliances.
Better Mesh Networking
Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks.
Expanded Backhaul
Pair two onboard 1GbE ports with link aggregation (LACP) to maximize throughput between the AP and wired switch.
Power Efficient
Full design feature capability for 5GHz clients with 802.3af (PoE) allows enterprises to use existing switches without costly upgrades.
More Than Wi-Fi
Enhance your network with Cloudpath security and management software, SPoT real-time Wi-Fi location engine and analytics software, and SCI network analytics.

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
