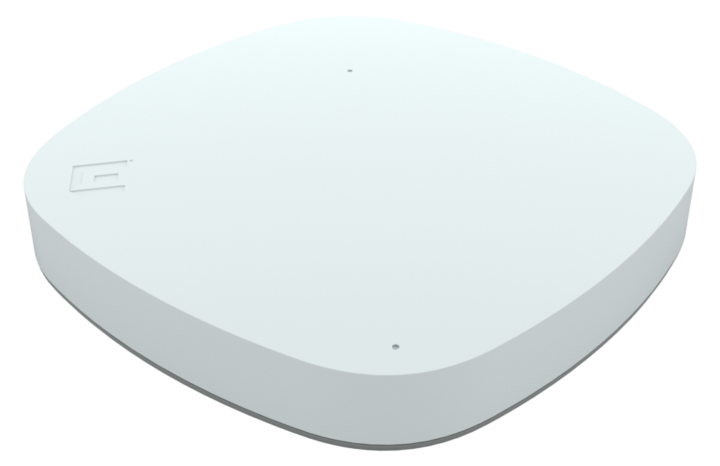

Extreme AP4000 (AP4000-WW - Wifi 6E)

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: AP4000-WW
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0396827937 - 0901188385 để có giá tốt.
Mô tả: Enterprise-grade, and AI-infused next-generation Wi-Fi with software programmable radios supporting 2.4, 5, and 6 GHz concurrently
Review: Xem tại đây

Yêu cầu báo giá

Bán hàng: Mr. Đức Mr. Thành Mr. Quan Mr. Thịnh Mr. Vinh

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Indoor Wi-Fi 6E
Tri-radio 2x2:2 Access Point

Enterprise-grade, and AI-infused next-generation Wi-Fi with software programmable radios supporting 2.4, 5, and 6 GHz concurrently

WI-FI 6E TECHNOLOGY

Wi-Fi 6E leverages 802.11ax/Wi-Fi 6 capabilities such as high-density, high-capacity, and high-efficiency performance, and extends these capabilities to the 6 GHz band. The vast expansion of frequency enables new use cases and offers improved user experiences, particularly in mission-critical and dense environments.

UNIVERSAL HARDWARE

AP4000 is a universal hardware platform, which simplifies your deployment experience through powerful cloud management and simplified licensing. The AP4000 can run multiple Extreme operating systems, providing flexibility and choice while minimizing total cost of ownership.

SUPERIOR TRI-FREQUENCY RADIO PERFORMANCE

The industry’s first Wi-Fi 6E tri-radio AP is capable of multiple operating modes, optimizing for maximum performance without trading off security. The AP4000 can transmit with three data radios or with two data radios and dedicated tri-frequency sensor.

More Features

Multi-band filter enables superior radio performance across 5 GHz and 6 GHz spectrum
Optimal user experiences powered by AI/ML with SmartRF and ExtremeCloudIQ CoPilot
Latest in Secure Wi-Fi with Extreme AirDefense, and support for WPA3 and Wi-Fi Enhanced Open
Integrated multi-purpose IoT radio for a variety of IoT applications
Gateway designed to protect high risk, wired IoT devices using ExtremeIoT Essentials.
Fully functional over 802.3at

Thiết bị Wi-Fi 6E Extreme AP4000 Indoor Access Point

Model	AP4000-WW
Radio Specifications	Max Users • SSID per Radio/Total: 8/24 • Users per Radio/total: 512/1536 802.11n • 2.4–2.5 GHz and 5.150–5.850 GHz Operating Frequency • 802.11n Modulation • HT20 High-Throughput (HT) Support (for both 2.4 GHz and 5 GHz) • HT40 High-Throughput (HT) Support for 5 GHz • A-MPDU and A-MSDU Frame Aggregation 802.11ac • 5.150–5.850 GHz Operating Frequency • 802.11ac Modulation (256-QAM) • Rates (Mbps): MCS0 – MCS31 (6.5MBps - 600Mbps) • 5G: 2x2 Multiple-In, Multiple-Out (MIMO) Radio • 2.4G: 2x2 Multiple-In, Multiple-Out (MIMO) Radio • Rates (Mbps): MCS0–MCS9 (6.5Mbps – 1734Mbps), NSS = 1-2. • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio • VHT20/VHT40/VHT80/VHT160 support • TxBF (Transmit Beamforming) 802.11ax • 2.4-2.5GHz, 5.50-5.850 and 5.925-7.125 GHz Operating Frequencies • 802.11ax Modulation (1024-QAM) • Dual-band OFDMA • Rates (Mbps): • 6G: HE0-HE11 (8 Mbps – 2400 Mbps) • 5G: HE0-HE11 (8 Mbps – 2400 Mbps) • 2.4G: HE0-HE11 (8Mbps – 574 Mbps) • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 6GHz • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio@ 5GHz • 2x2:2 Stream Multiple-In, Multiple-Out (MIMO) Radio @2.4GHz • HE20/HE40/HE80/HE160 support for 6 GHz • HE20/HE40/HE80 support for 5 GHz • HE20/HE40 support for 2.4 GHz • DL SU-MIMO and MU-MIMO • TxBF (Transmit Beamforming)
IOT Radio	• Thread, Zigbee®, Bluetooth® 5.2 Low Energy, IEEE 802.15.4
Interfaces	• Eth0, Eth1: (2) Wired Ethernet ports (RJ-45) • (1) 100/1000/2500Mbps auto-sensing link speed Ethernet port, POE 802.3at • (1) 10/100/1000 Mbps auto-sensing link speed Ethernet port • 802.3az Energy Efficient Ethernet(EEE) • USB 2.0, Type A, 5V/500mA
Power Specifications	• IEEE 802.3at PoE Power
Power Options	• Power Draw: ₀ Typical: 12.3W; Max: 13.8W (w/o USB) ₀ Typical: 15W; Max: 16.6W (w USB) • 802.3at Power over Ethernet (PoE) capable • Gigabit Ethernet port (RJ-45 power input pins: Wires 4,5,7,8 or 1,2,3,6)
Physical	• Dimensions: 205mm x 205mm x 37mm • Weight: 0.85 kg • Kensington lock slot • Trusted Platform Module(TPM)
Internal Antennas	• (2) Integrated single band, 5.925-7.125 GHz omnidirectional antennas • (2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional • (2) Integrated dual band, 2.4-2.5 GHz and 5.1-5.8 GHz omnidirectional for sensor • (1) Integrated dual band, 2.4-2.5 GHz omnidirectional for IoT
Mounting	• AP support 15/16 flush ceiling tile include in box • Wall mount included in box or sold as an accessory • Ceiling Tile Recessed 15/16 sold as accessory • Beam sold as an accessory • Junction Box sold as an accessory • IL or 9/16 t-bar sold as an accessory • SL (Silhouette) sold as an accessory • Wing Main Plate adaptor sold as an accessory • Built in slot for Kensington
Environmental	• Operating: AP4000: 0 to 50°C • Storage: -40 to 70°C • Humidity: 0% to 95% (non-condensing)
