Dual-Band Gigabit Wall Plate Access Point RUIJIE RG-RAP1200(P)
Hàng chính hãng
Giá:
Liên hệ
- Tình trạng
- Hàng chính hãng, có CO CQ đầy đủ
- Part Number
- Dual-Band Gigabit Wall Plate Access Point RUIJIE R
- Kho hàng
- Liên hệ
- Mua nhiều
- Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Vận chuyển
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

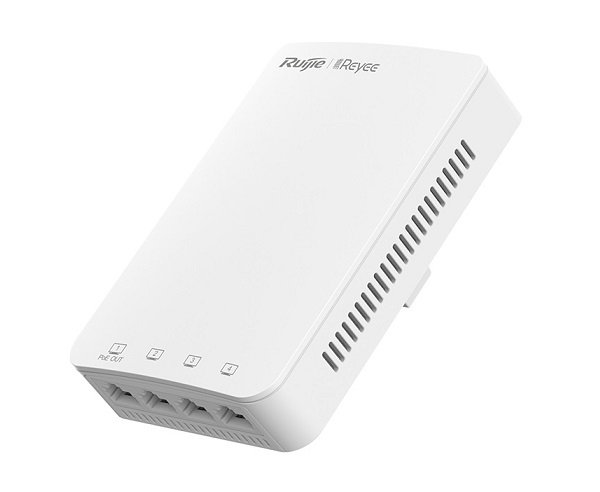

Dual-Band Gigabit Wall Plate Access Point RUIJIE RG-RAP1200(P)
- Ruijie Reyee Series RG-RAP1200(P) dual-band gigabit wall plate AP is a high-performance wall plate AP for small and medium-sized indoor Wi-Fi scenarios, such as offices, commercial industry, hotels, service scenarios, etc.
- With 802.3af/at PoE support, the AP provides 4 LAN ports at the front, including 1 PoE out port, to facilitate the connection of IPTV, IP phone, etc.
- The AP also provides 1 Gigabit uplink port on the rear panel.
- Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, the AP supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas.
- It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP.
Specifications
| Hardware | |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n |
| Operating Bands | 802.11b/g/n: 2.4G ~ 2.4835GHz 802.11a/n/ac: 5G: 5.150~5.350GHz, 5.725~5.850GHz |
| Antenna | built-in antenna |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput | 2.4G: up to 400Mbps 5G: up to 867Mbps Access rate per AP: 1.267Gbps |
| Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
| Maximum Transmit Power | 20 dBm (adjustable) |
| Adjustable Power | 1dBm |
| Dimensions | 126×86×46.3 mm (excluding barckets) |
| Weight | ≤0.24kg (excluding barckets) |
| Service Ports | Front: 4 10/100/1000Base-T Ethernet ports LAN1 port supports IEEE.802.3af PoE OUT Rear: 1 10/100/1000Base-T Ethernet port |
| LED Indicator | 1 LED indicator |
| Power Supply | Support PoE (802.3af/at) |
| Power Consumption | ≤8W (max power consumption is 23.4W PoE output included ) |
| Environment | Operating temperature: 0°C~40°C (32℉ to 104℉) Storage temperature: -40°C~70°C (-40℉ to 158℉) Operating humidity: 5%~95% (non-condensing) Storage humidity: 5%~95% (non-condensing) |
| Installation | Wall plate installation |
| Safety Standard | GB4943, IEC 62368-1 |
| EMC Standard | GB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035 |
| Vibration Standard | IEC61373 |
| Radio Standard | EN300 328, EN301 893 |
| MTBF | >250000H |
| Software | |
| Operating Mode | AP mode and routing mode |
| WLAN | Maximum number of clients: 110 Recommended number of clients: 80 (16 at 2.4GHz, 64 at 5GHz) Up to 8 SSIDs Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID SSID-based and radio-based STA limit Support Layer 2 user isolation |
| Roaming | Support Layer 2 and Layer 3 roaming |
| Security | Support PSK authentication Support static blacklist and whitelist Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption |
| Routing | Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
- Bảo hành: 3 năm.
Dual-Band Gigabit Wall Plate Access Point RUIJIE RG-RAP1200(P)
- Ruijie Reyee Series RG-RAP1200(P) dual-band gigabit wall plate AP is a high-performance wall plate AP for small and medium-sized indoor Wi-Fi scenarios, such as offices, commercial industry, hotels, service scenarios, etc.
- With 802.3af/at PoE support, the AP provides 4 LAN ports at the front, including 1 PoE out port, to facilitate the connection of IPTV, IP phone, etc.
- The AP also provides 1 Gigabit uplink port on the rear panel.
- Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, the AP supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas.
- It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP.
Specifications
| Hardware | |
| Radio | Dual-stream dual-band |
| Protocol | Concurrent 802.11ac wave2, wave1, 802.11a/b/g/n |
| Operating Bands | 802.11b/g/n: 2.4G ~ 2.4835GHz 802.11a/n/ac: 5G: 5.150~5.350GHz, 5.725~5.850GHz |
| Antenna | built-in antenna |
| Spatial Streams | 2.4G 2x2MIMO 5G 2x2MIMO |
| Max Throughput | 2.4G: up to 400Mbps 5G: up to 867Mbps Access rate per AP: 1.267Gbps |
| Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM and 256QAM |
| Maximum Transmit Power | 20 dBm (adjustable) |
| Adjustable Power | 1dBm |
| Dimensions | 126×86×46.3 mm (excluding barckets) |
| Weight | ≤0.24kg (excluding barckets) |
| Service Ports | Front: 4 10/100/1000Base-T Ethernet ports LAN1 port supports IEEE.802.3af PoE OUT Rear: 1 10/100/1000Base-T Ethernet port |
| LED Indicator | 1 LED indicator |
| Power Supply | Support PoE (802.3af/at) |
| Power Consumption | ≤8W (max power consumption is 23.4W PoE output included ) |
| Environment | Operating temperature: 0°C~40°C (32℉ to 104℉) Storage temperature: -40°C~70°C (-40℉ to 158℉) Operating humidity: 5%~95% (non-condensing) Storage humidity: 5%~95% (non-condensing) |
| Installation | Wall plate installation |
| Safety Standard | GB4943, IEC 62368-1 |
| EMC Standard | GB9254, EN301 489, EN50155, EN50121, EN55032, EN61000, EN55035 |
| Vibration Standard | IEC61373 |
| Radio Standard | EN300 328, EN301 893 |
| MTBF | >250000H |
| Software | |
| Operating Mode | AP mode and routing mode |
| WLAN | Maximum number of clients: 110 Recommended number of clients: 80 (16 at 2.4GHz, 64 at 5GHz) Up to 8 SSIDs Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID SSID-based and radio-based STA limit Support Layer 2 user isolation |
| Roaming | Support Layer 2 and Layer 3 roaming |
| Security | Support PSK authentication Support static blacklist and whitelist Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption |
| Routing | Support static IP address, DHCP, PPPoE Dial Up |
| Management and maintenance | Support unified networking of all network equipment Support local or remote management with Ruijie Cloud app Support local management with web Support remote management with Ruijie Cloud platform |
- Bảo hành: 3 năm.
