WS Series Wireless Controller, 8 1000BASE-T/1000BASE-X ports (combo), 4 1G/10GBASE-X SFP+ ports, 2 Expansion Slots, support dual redundant power supply, 128 APs License included by default, maximum3,200 APs or 5,000 Wall APs License, 1 power supply is included
(Redundant power module sold separately)
WS Series Wireless Controller, 8 1000BASE-T/1000BASE-X ports (combo), 4 1G/10GBASE-X SFP+ ports, 2 Expansion Slots, support dual redundant power supply, 128 APs License included by default, maximum3,200 APs or 5,000 Wall APs License, 1 power supply is included
(Redundant power module sold separately)
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

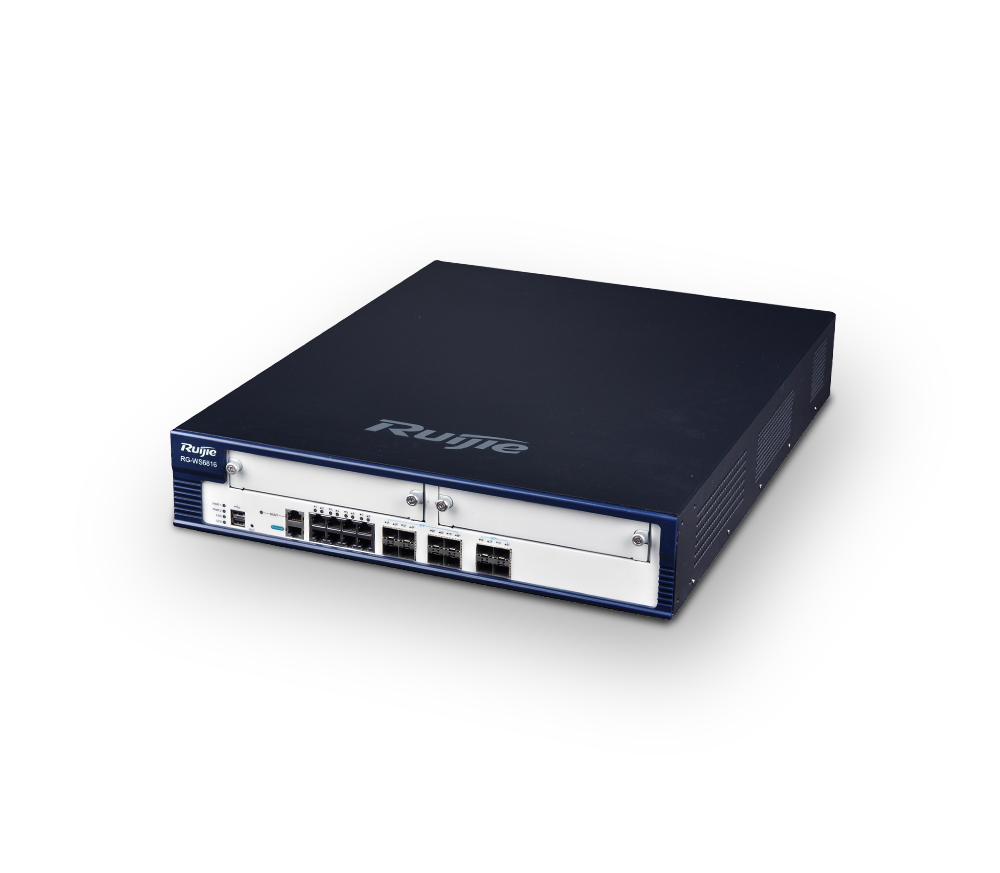

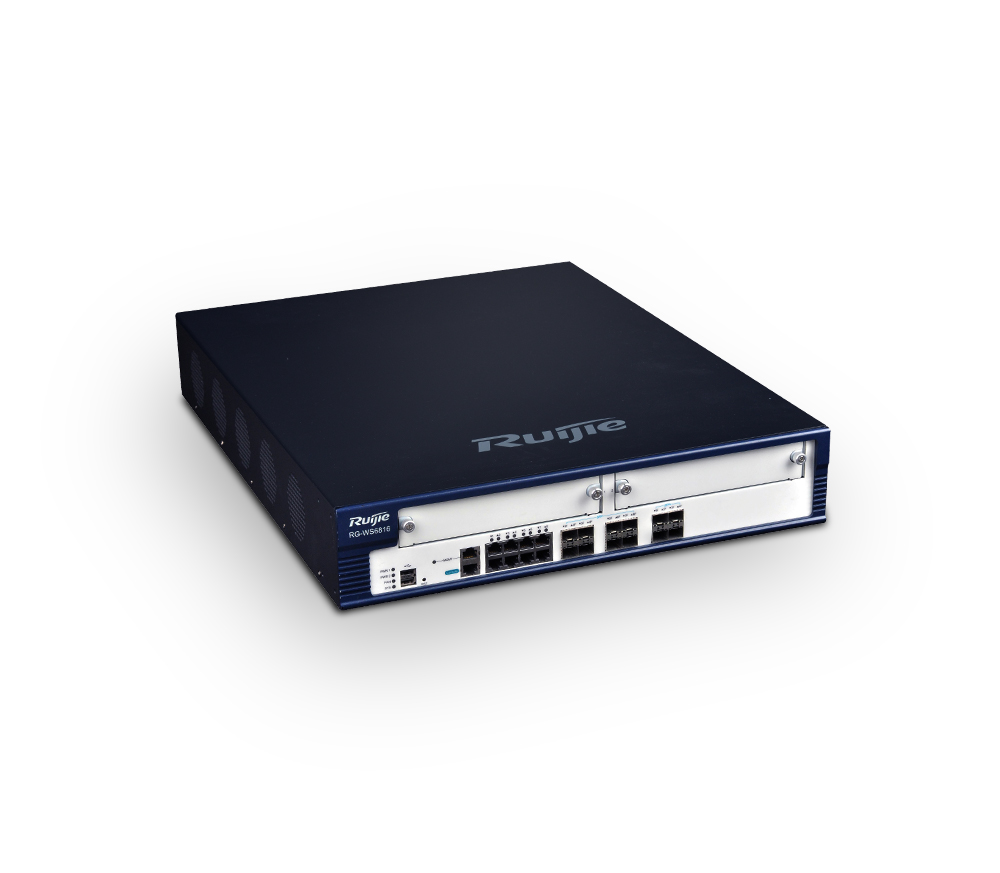

The Ruijie RG-WS6816 High-Performance Wireless Controller enables centralized control and management of APs, delivering high transparency and visibility. With Ruijie’s leading management platform Smart Network Commander (SNC) and wireless APs, the Ruijie RG-WS6816 High-Performance Wireless Controller can flexibly manage AP configuration and optimize radio frequency (RF) coverage to enhance the wireless network performance and reduce deployment workload at the same time.
The Ruijie RG-WS6816 High-Performance Wireless Controller enables role-based network service with the cutting-edge security and clustering technologies. The clustering technology shares wireless user database among multiple controllers and allows users to roam seamlessly between different areas within the network. The Ruijie RG-WS6816 High-Performance Wireless Controller thereby delivers uninterrupted wireless voice communications with superior security and availability.
Model |
RG-WS6816 |
|
Service Port |
8 1000BASE-T/1000BASE-X ports (combo) |
|
Management Port |
1 console port 1 10/100/1000M MGMT port |
|
Security Standard |
GB4943-2011 |
|
EMC Standard |
GB9254-2008, CLASS A |
|
Performance |
Default Number of Manageable APs |
128 |
Maximum Number of Manageable APs |
Regular AP 3200 Wall AP 6400 Flexible expansion by adding licenses |
|
Maximum Number of Configurable APs |
16K |
|
Maximum Number of Manageable Clients |
80K |
|
802.11 Performance |
40Gbps |
|
VLAN |
4,094 |
|
Maximum Number of Clients Supported by the Built-in Portal |
15000 |
|
ACL |
512K |
|
MAC Address Table |
128K |
|
Local Authentication |
300 wireless clients |
|
ARP Table |
96K |
|
IPv6 Neighbor Table |
10K |
|
Inter-AC Roaming Switch Time |
≤50ms |
|
WLAN |
802.11 LAN Protocol |
802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n |
CAPWAP |
Layer 2/Layer 3 network topology between an AP and AC |
|
Roaming |
Intra-AC roaming |
|
Pre-AX |
Support |
|
CorrectLink |
Support |
|
AirReorder |
Support |
|
Forwarding |
Local forwarding |
|
Wireless QoS |
AP-based bandwidth control |
|
User Isolation |
AC-based user isolation |
|
Reliability |
Fast switching between 2 ACs |
|
STA Management |
AP-based STA access control |
|
STA RSSI Threshold |
0 to 100 |
|
STA Idle Timeout |
60 to 86,400 seconds |
|
STA Average Data Rate Threshold |
8 to 261120 with the accuracy of 8Kbps |
|
Adjusting Transmit Power of Beacon and Probe Response |
Support |
|
Offline Syslog |
Support |
|
RF Management |
Setting country codes |
|
Security |
IPv4 Security |
Web authentication |
IPv6 Security |
Web authentication |
|
PPSK |
N/A |
|
Virtual AP |
Support |
|
Virtual AC |
Support |
|
802.11 Security and Encryption |
Multiple SSIDs |
|
SMP |
Support |
|
CPP |
Support |
|
NFPP |
Support |
|
WIDS |
Support |
|
Internet Protocols |
IPv4 Protocol |
Ping, Traceroute |
IPv6 Protocol |
DNSv6 Client |
|
IPv4 Routing |
Static routing, OSPF |
|
IPv4 Routing Table Capacity |
8K |
|
IPv4 Static Routing Table Capacity |
1K |
|
IPv6 Routing |
Static routing |
|
IPv6 Routing Table Capacity |
1K |
|
IPv6 Static Routing Table Capacity |
1K |
|
Management |
Network Management |
SNMP v1/v2c/v3 |
Network Management Platform |
Web management (Smart-web) |
|
User Access Management |
Login via console port |
|
Dimensions (W × D × H) (mm) |
440 × 560 × 88.1 |
|
Rack Height |
2RU |
|
Weight |
19kg |
|
Installation Mode |
19-inch rack |
|
Power Supply |
100VAC to 240VAC, 50Hz to 60Hz |
|
Switching Power Supply |
Supports up to 2 PA-300I switching power supply modules with at least 1 power module |
|
Power Consumption |
<100W |
|
Temperature |
Operating Temperature: 0ºC to 45ºC |
|
Storage Temperature: -40ºC to 70ºC |
||
Humidity |
Operating Humidity: 5% to 95%RH (non-condensing) |
|
Storage Humidity: 5% to 95%RH (non-condensing) |
||
Operating Altitude |
0-3000m |
