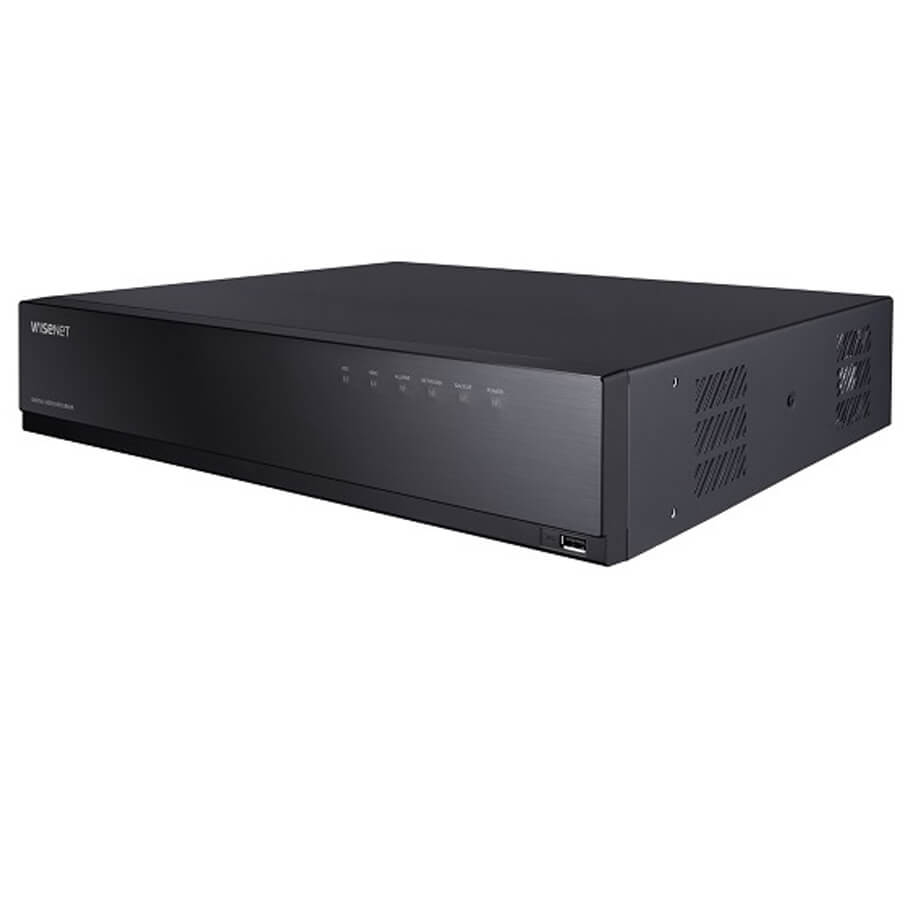

Đầu ghi hình 8 kênh 5 in 1 Hanwha Vision HRX-835
- Đầu ghi hình camera 8 kênh 5 in 1.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Ngõ vào: AHD/HDTVI/HDCVI/CVBS.
- Tốc độ ghi hình: 8/8fps@8MP, 12/12fps@5MP.
- Hỗ trợ 4 ổ cứng SATA với dung lượng lưu trữ 6TB cho mỗi ổ.
- Tương thích với tín hiệu ngõ ra: HDMI/VGA.
- Kích thước: 440 x 88 x 384.8 mm.
- Trọng lượng: 4.6kg.
Đặc tính kỹ thuật
| Model | HRX-835 |
| Display | |
| Analog camera | Inputs: 8CH(1Vp-p 75ohm, BNC) Signal Type: + AHD(8MP, 5MP, 4MP, 1080p, 720p) + HDTVI(8MP, 5MP, 4MP, 1080p, 720p) + HDCVI(5MP, 4MP, 1080p, 720p) + CVBS(NTSC/PAL) |
| Network camera | Inputs: Max. 10CH Resolution: 8MP ~ CIF Protocols: SUNAPI(Wisenet), ONVIF |
| Live | Local Display: 1x HDMI, 1x VGA (Dual monitor) HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x1044, 1280x720 (Expand mode 1920x1080) VGA: 1920x1080, 1280x1024, 1280x720 (Expand 1024*768) |
| Resolution [Analog Camera(NTSC/PAL)] - 8MP(15/12fps), 5MP(20/12fps), 4MP(30/25fps), 2MP(30/25fps),1MP(30/25fps), 960H(or 720H)(30/25fps) * per CH [Network Camera] - Typ. 2MP(240fps) |
|
| Performance | |
| Record | Compression: H.265, H.264, MJPEG Record Rate (Analog): Analog Camera (Main Stream) 8MP 8/8fps CH, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, 960H/640H 30/25fps(NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal : upto CIF full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera. |
| Recording Bandwidth: Max. 50Mbps | |
| Resolution: 8MP ~ CIF | |
| Mode: Manual, Schedule (Continuous/Event), Event(Pre/Post), Dual Track | |
| Event Trigger: Alarm Input Analog Camera: Video Loss, Motion Detection,Tampering Network Camera: Camera Event (Sensor, MD, Video analytics), VA event (Tampering, Enter / Exit, Passing, Virtual- line, (Dis)Appear, Face Detection, Audio detection), Defocus camera event, Dynamic camera event |
|
| Event Action: E-mail, PTZ preset, Alarm out, Buzzer, Monitor out | |
| Search & Playback | Playback Bandwidth: Max. 32Mbps (10CH simultaneously) |
| User: Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback: 10CH(Local Monitor), 8CH(CMS), 4CH(Wisenet Mobile) 1CH(Web) |
|
| Fisheye Dewarping: WEB / CMS | |
| Storage | Supported HDD: Up to 6TB |
| HDD Slot: SATA 4ea(Max 24TB) | |
| Backup | File backup: BU, EXE(Include Player), AVI(Webviewer only) |
| Function: Max. 10 CH play, Date-time/title display | |
| Functions | |
| PTZ | Control: Via GUI, Webviewer, SSM, SmartViewer, Wisenet Mobile Viewer, System Controller |
| Smart phone | Support Mode: iOS, Android |
| Protocol Support: RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control: Live(8ch): Multi-Profile Support Playback (4Ch Multi Playback, Max 2MP) Event push |
|
| Max. Remote Users: Search(3), Live Unicast(10) | |
| Redundancy | ARB: Support |
| Easy configuration | Setup Wizard (Language, Date/Time, Password, Network, Auto Camera Configuration), P2P (QR code) |
| Interface | |
| HDMI | 1EA |
| VGA | 1EA |
| BNC | 8CH In / 1CH Out(Spot Output) |
| Audio | Out(1EA, RCA, Line) |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Alarm | In 8EA, Out 4EA - Relay Out1(NO/NC/COM) - Relay Out2~4(NO/COM) |
| USB | 2EA(Front USB2.0, Rear USB 3.0)) |
| Serial(Protocols) | RS-485/422 (Samsung-T/Pelco-D/Pelco-p) * for PTZ |
| Power inlet | 1EA AC |
| System | |
| System Control | Mouse, Webviewer, System Controller(SPC-7000, SPC-6000, SPC-2000) |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai |
| Environmental | |
| Operating Temperature | 0°C to +40°C(+32℉ to +104℉) |
| Operating Humidity | 20% ~ 85% RH |
| Certification | UL, CE, FCC, KC |
| Electrical | |
| Power Input | 100~240 VAC±10%, 50/60 Hz |
| Power Consumption | Max. 120W (6T HDD 4ea) TBD |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 440 x 88 x 384.8mm |
| Weight | Approx. 4.6Kg |
| Network | |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DDNS | Wisenet DDNS |
| Transmission speed | Analog Camera (Main Stream) 8MP 8/8fps CH, 5M 12/12fps, 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, 960H/640H 30/25fps(NTSC/PAL per CH) (Sub Stream) 720p or higher : 640x368 full fps/CH, SD signal: up to CIF full fps/CH * The maximum recording frame rate depends on the frame rate of the input camera |
| Transmission Bandwidth | Max. 64Mbps |
| Audio | Input/Output: 8 Line in / 1 Line out |
| Compression: G.711 (N/W Cam G.711, 726) | |
| Audio Communication: 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) |
| Security | IP address filtering, User access log, 802.1x Authentication, Encryption (ID/PW, Recording, Transmission, Backup) Device Certificate(Hanwha Techwin Root CA) |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS |
