Mô tả:

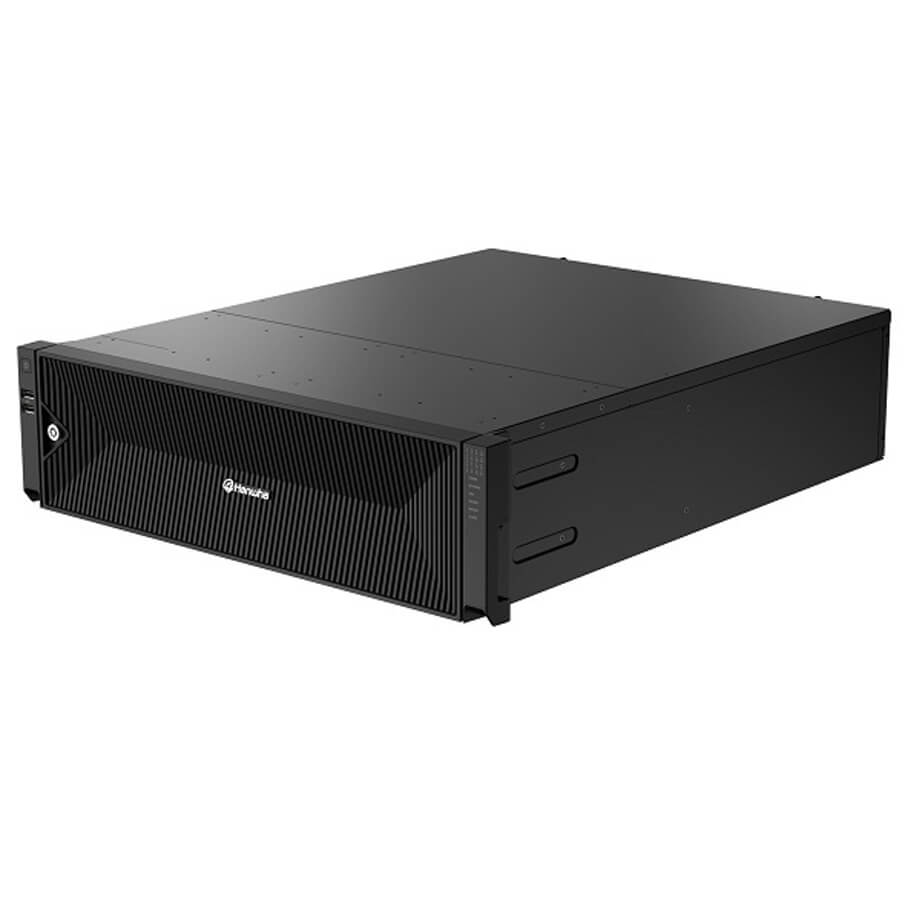

Đầu ghi hình camera IP 64 kênh Hanwha Vision XRN-6420DB4
- Hỗ trợ 64 kênh camera IP đầu vào độ phân giải 32MP.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Băng thông truyền tải: 520Mbps.
- Hỗ trợ 16 ổ cứng SATA với dung lượng 10TB cho mỗi ổ.
- Tương thích tín hiệu ngõ ra: HDMI1 (3840x2160/30Hz); HDMI2 (1920x1080/60Hz).
- Hỗ trợ 8 cổng vào và 4 cổng ra báo động.
- Hỗ trợ các chức năng: Virtual Channel View; Dynamic layout; Web Management (up to 100); Manual event.
- Tương thích với Wisenet Viewer, Wisenet mobile.
Đặc tính kỹ thuật
| Display | |
| Network camera | - Inputs: Max. 64CH - Resolution: 32MP ~ CIF - Protocols: SUNAPI, ONVIF |
| Decoding | Local Display: [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI 2: 1920x1080 (60Hz |
| Multi Screen Display: [Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode : Up to 64 Division - Expand Mode : HDMI1 up to 36 Div. HDMI2 up to 32 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
|
| Resolution: 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(4ch@30fps), 1080p(16ch@30fps), 720P(32ch@30fps), D1(64ch@30fps) |
|
| Performance | |
| Operating System | Embedded: Linux |
| Record | Recording Bandwidth: - Distributed mode : Up to 520 Mbps - Normal mode : Up to 300 Mbps {RAID mode} - Normal : Up to 520 Mbps - Degrade/ Rebuild : Up to 520 Mbps Resolution: 32MP ~ CIF Mode: Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark Event Trigger: Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event Event Action: e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
| Search & Play | Playback Bandwidth: Up to 200Mbps(64CH simultaneously) User: Max. 4 Users (Local 1, Remote 3) Simultaneous playback: Max. 112CH(Local 64CH, Remote 16CH per user) Fisheye Dewarping: Support (Local 1CH), CMS Mode: Time/ Event/ Text/ ARB/ Bookmark/ Smart search Resolution: CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) Playback Control: Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | Supported HDD: Up to 10TB HDD Slot: SATA 16ea(Max. 160TB, Non-RAID mode), Hot swap External: iSCSI storage RAID: RAID-5/6(Array Size : 8 HDDs x 2 Array) |
| Backup | File backup: Recorder/SEC/AVI/JPG(Local), AVI/PNG(Network) Function: Multi channel(Up to 16CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, RTCP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 520Mbps |
| Audio | Input/Output: 64 CH(network) Compression: G.711, G.726, AAC(16/48KHz) Audio Communication: 2-Way |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) |
| Security | IP address filtering, User access Log, 802.1x, TLS, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware, TPM support |
| Web viewer | Supported OS: Windows10 or higher, macOS 13.5.2 or higher Supported browser: Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS |
| Functions | |
| Camera Setup | Register: Auto, Manual Item: IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | Control: Via GUI, Webviewer, SPC-2000/2001 Preset: 300 Presets |
| Smart phone | Support Model: iOS, Android Protocol Support: RTP, RTSP, HTTP, CGI(SUNAPI) Control: Live 16CH(Multi-Profile Support), Playback 4CH Max. Remote Users: Search(3), Live Unicast(10) |
| Redundancy | Failover: N+1 ARB: Support |
| Easy configuration | P2P(QR code) |
| Interface | |
| Front | Indicator: HDD, Alarm, Power, Record, Backup, Network, RAID |
| Storage | Yes |
| Reset | Power button |
| HDD Key Lock | Yes |
| HDMI | 2EA ( Playback/Setup → HDMI1) HDMI1 : 3840x2160 30Hz HDMI2 : 1920x1080 60Hz |
| Audio | Out 1EA (3.5mm Audio Jack) |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) |
| Alarm | In 8EA, Out 4EA |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Power inlet | AC 2EA |
| System | |
| Log | Log List: Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse(include wireless), Keyboard(include wireless), Web, Controller (SPC-2000/2001) |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz, 2.7A (Dual SMPS) |
| Power Consumption | Max. 265W (904.2 BTU with HDD 16ea) |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (WxHxD) | 440.0 x 132.0 x 571.1mm |
| Weight | Approx. 15.1Kg(33.3 lb, HDD not included) |
| Intelligent Analysis | |
| AI Search | Object Attribute: Compatible with Hanwha AI Cameras |
- Bảo hành: 24 tháng.
