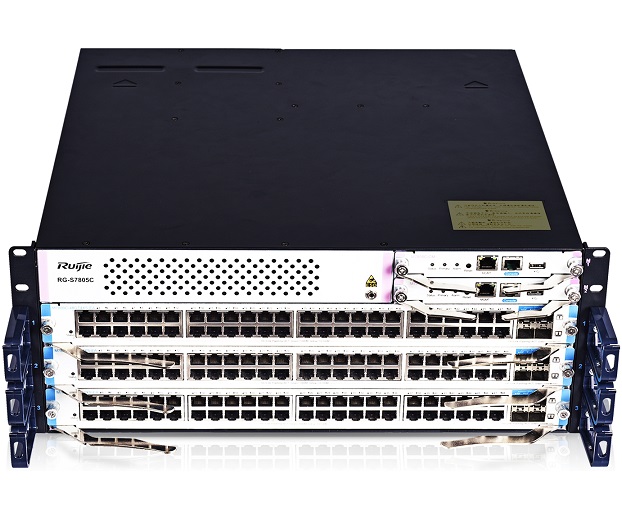

Core Switch RUIJIE RG-S7805C

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: Core Switch RUIJIE RG-S7805C
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Core Switch RUIJIE RG-S7805C

- Cost-effective Entry-level Chassis Switch

- Superior Performance with up to 88.62Tbps Switching Capacity

- Support Network Virtualization (VSU & VSD) and Advanced Layer 3 Routing (OSPF, BGP)

- Carrier-class Reliability: Control Engine/ Power/ Fan Redundancy, Hot-swappable Components

- Support Large-scale MAC (up to 64K) and ARP Table (up to 20K)

- Support PoE/ PoE+ with Independent PoE Power Supply Module

Thông số kỹ thuật

Model	RG-S7805C
Module Slots	5 (2 for control engines)
Modular Power Slots	2 (for system power)
Switching Capacity	19.2Tbps/52.13Tbps
Packet Forwarding Rate	215Mpps
Max. Number of 10GE Ports	Up to 24
PoE	Non Support
ARP Table	Up to 20K
MAC Address	Up to 64K
Routing Entries	Up to 10K
Multicast Entries (IPv4/IPv6)	Up to 8K/4K
ACL Entries	Up to 3,500
VLAN	Up to 4K
QinQ	Basic QinQ, Flexible QinQ
Link Aggregation	AP, LACP
Port Mirroring	Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, SPAN, RSPAN, VLAN mirroring
Spanning Tree Protocols	Support STP, RSTP and MSTP
DHCP	Support DHCP relay, DHCP snooping, DHCP server, DHCP client
Multiple Spanning Tree (MST) Instances	64 (not include default 0)
Maximum Aggregation Port (AP)	Up to 2,048
Virtual Routing and Forwarding (VRF) Instances	Up to 1,000
VSU (Virtual Switch Unit)	Up to 2 stack members
VSD (Virtual Switch Device)	Up to 4 VSD units
L2 Features	Jumbo Frame, 802.1Q, STP, RSTP, MSTP, Super VLAN, GVRP, QinQ, Flexible QinQ, LLDP, ERPS (G.8032),MAC Based VLAN,Voice VLAN,RLDP
Layer 2 Protocols	IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, Jumbo Frame (9Kbytes), IEEE802.1ad (QinQ and flexible QinQ), GVRP
Layer 3 Features	ARP, IPv4/v6, PBR v4/v6
Layer 3 Protocols (IPv4)	Ping, Traceroute, Equal-Cost Multi-Path Routing (ECMP)
IPv4 Features	Static routing, RIP, OSPF, BGP4, ISIS, VRRP, Equal-cost routing, Policy-based routing, GRE tunnel
IPv6 Features	Static routing OSPFv3, BGP4+, IS-ISv6, MLD, VRRPv3, Equal-cost routing,Policy-based routing, Manual tunnel, Auto tunnel, ISATAP tunnel, GRE tunnel
Basic IPv6 Protocols	DNS client v6, DHCP relay v6, DHCP v6 server, Telnet v6, TFTP client v6, FTP v6, NTP client v6, NTP server v6
Routing Protocols	RIP, RIPng, OSPFv2/v3, BGP4, BGP4+, IS-ISv4/v6, Routing Policy
IPv6 Tunnel Features	6over4 Manual Tunnel, 6to4 Auto Tunnel, Manual Tunnel, Auto Tunnel, ISATAP Tunnel, IPv4 over IPv6 Tunnel, IPv6 over IPv4 Tunnel, GRE Tunnel(4 over 6), GRE Tunnel(6 over 4)
Multicast	IGMP v1/v2/v3, IGMP snooping, IGMP proxy, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD, Multicast static routing
G.8032	Support
ACE Capacity	Up to 3,500
ACL	Standard/Extended/Expert ACL; ACL 80; IPv6 ACL
QoS	802.1p, Queue scheduling mechanisms (SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR), RED/WRED, Input/output port-based speed limit
IPv6 ACL	Support
Reliability	Control engine, power supply and fan: 1+1 redundancy; Hot-swappable components; Hot patch and online patch upgrade; GR for OSPF/IS-IS/BGP; BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/static routing
EEE Format	Support EEE (802.3az)
Security	NFPP (Network Foundation Protection Policy), CPP (CPU Protection), DAI, Port Security, IP Source Guard, 802.1x, Portal authentication, RADIUS and TACACS+ user login authentication, uRPF, Account privileges and password security policy, Unknown multicasts are not delivered to CPU and support unknown unicasts suppression, Support SSHv2 to provide a secure and encrypted channel for user login
Manageability	Console/AUX Modem/Telnet/SSH2.0 command line configuration; FTP, TFTP, Xmodem file upload/download management; SNMP V1/V2c/V3; RMON; NTP clock; Fault alarm and self-recovery; System log; sFlow
Hot Patch	Support
Smart Temperature Control	Fan speed auto-adjustment; Fan malfunction alerts; Fan status check
Smart Power Supply	Support power control and management
Other Protocols	DHCP client, DHCP relay, DHCP server, ARP proxy, Syslog
Dimensions	442 x 451 x 175 mm, 4U
Rack Height	4RU
Weight	12.42kg
MTBF	312K hours
Safety Standards	IEC 60950-1, EN 60950-1
Emission Standards	EN 300 386, EN 55022/55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Power Supply	RG-PA300I-F: 90-290Vac and 1 92-290Vdc ~300W
Power Consumption	<80W
PoE Power Consumption	Non Support
Temperature	Operating temperature: 0ºC to 50ºC Storage temperature: -40ºC to 70ºC
Humidity	Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH
Operating Altitude	3,000m to 5,000m

- Bảo hành: 3 năm.
