Giá: 55.000₫ 60.000₫ -8%
Giá đã được giảm trực tiếp vào giá bán. Áp dụng giá cho đến khi có thông báo mới

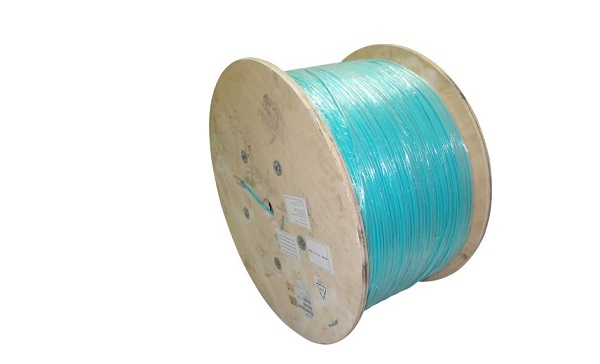

Indoor Distribution Fiber Optic Cables OM3, OFNR, 8 core
Indoor Distribution Fiber Optic Cables OM3, OFNR, 8 core
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
- Indoor Fiber Optic Cable, 8-fiber, OM3, OFNR, 3000m.
Specifications
Product Classification
- Portfolio: NETCONNECT®
- Product Type: Fiber indoor cable
- Regional Availability: Asia
Construction Materials
- Jacket Color: Aqua
- Total Fiber Count: 8
Body Features
- Bend Radius (Installation): 108.00mm.
- Bend Radius (Long Term): 54.00mm.
- Tensile Strength (Installation): 660.00N.
- Tensile Strength (Long Term): 198.00N.
- Weight (Nominal): 26.0 kg/km.
Dimensions
- Length: 3000m.
Industry Standards
- Flammability Rating: OFNR (Riser) Jacket
Operation/Application
- Environment: Indoor
Product Type Features
- Armoring: None
- Cable Type: Fiber Optic
- Fiber Cable Buffering: Tight buffer
- Fiber Diameter: 50/125 µm
- Fiber Specification: TIA/EIA-598
- Fiber Type: OM3
- Optical Mode: Multimode
Signal Characteristics
- 10GbE Transmission Distance (Min) (850nm): 300.0m
- Attenuation, maximum (1300nm): 1.50dB/km
- Attenuation, maximum (850nm): 3.50dB/km
- Effective Modal Bandwidth (Min) (850nm): 2000 MHz-km
- Overfilled Launch Bandwidth (Min) (1300nm): 500 MHz-km
- Overfilled Launch Bandwidth (Min) (850nm): 1500 MHz-km
Usage Conditions
- Installation Temperature Range: -10 – 60 °C
- Operating Temperature Range: -20 – 70 °C
- Storage Temperature Range: -40 – 70 °C
