Mỹ Thương hiệu: HONEYWELL

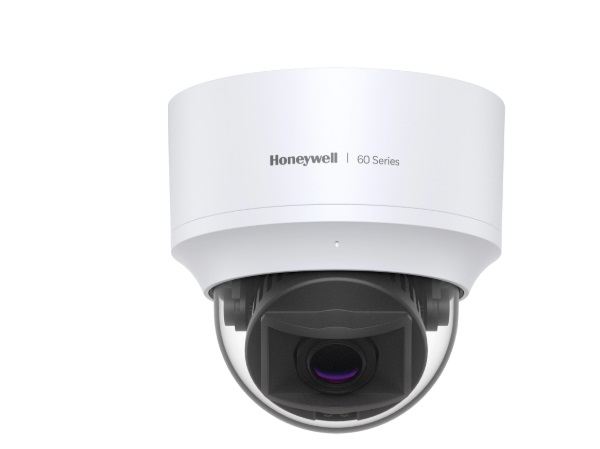

Camera IP Dome hồng ngoại 5.0 Megapixel HONEYWELL HC60W35R2

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Dome hồng ngoại 5.0 Megapixel HONEYWELL
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Dome hồng ngoại 5.0 Megapixel HONEYWELL HC60W35R2

- Cảm biến hình ảnh: 1/2.8-inch CMOS (5.18 x 3.89 mm).

- Độ phân giải: 5.0 Megapixel.

- Ống kính: 22.7-12mm, MFZ, F1.4-2.8.

- Tốc độ khung hình: Lên đến 60 fps.

- Độ nhạy sáng tối thiểu: 0.01 lux (colour)/0 lux (B/W) with IR LEDs on.

- Camera quan sat ỗ trợ khe cắm thẻ nhớ  Micro SD, Micro SDHC, Micro SDXC up to 256GB.

- Tầm quan sát hồng ngoại: 30 mét.

- Chuẩn nén hình ảnh: H.265 HEVC/ H.264/ MJPEG, Smart Codec.

- Tiêu chuẩn chống va đập: IK10.

- Hỗ trợ chức năng cấp nguồn qua mạng PoE.

- Nguồn điện: 12 VDC/ 24VAC.

Đặc tính kỹ thuật

Model  HC60W35R2
OPERATIONAL
Video Standard NTSC/PAL
Scanning System Progressive
Image Sensor 1/2.8-inch CMOS (5.18 x 3.89 mm)
Number Of Pixels (H × V) 5 MP (2560 x 1920)
Min. illumination (Color/B&W) 0.04 Lux/ 0Lux (@F1.4, IR on)
S/N Ratio 60 dB
Electronic Shutter Speed 1/32000 ~ 1/30
IR Distance Up to 30 m (98 ft)
IR Light Control Smart IR (Auto/ Manual)/ OFF, External IR trigger by output
IR Light Number 4
Removable IR-Cut Filter Yes
Day/Night Auto/ Day/ Night/ Synchronize with digital input/ Schedule
Backlight Compensation WDR, HLC
White Balance Auto/ Fixed Current/ Manual
Gain Control 0-100 %
Wide Dynamic Range >120 dB
Noise Reduction 3D DNR
Lens 2.7 ~ 13.5 mm, MFZ, P-IRIS, F 1.4 ~ F 2.8
Angle Of View H: 100° ~ 30°, V: 72° ~ 23°
G-Sensor Support Camera Direction OSD Display (Default - Off)
Privacy Masking Off/ On (5 Areas)
Defog Support
Encryption Chipset Built-in FIPS encryption Chipset
Local Storage Micro SD/ SDHC/ SDXC card slot (up to 256 GB), SD Card encryption
Micro USB Support Wifi Dongle for configuration
VIDEO
Video Compression  H.265 HEVC/ H.264/ MJPEG, Smart Codec
Resolution (16/9) 2560 x 1440/ 1920 x 1080/ 1600 x 904/ 1360 x 768/1280 x 720/ 640 x 360
Resolution (4/3) 2560 x 1920/ 1600 x 1200/ 1280 x 960/ 640 x 480
Number of Video Streams 3
Frame Rate Main Stream & Frame Rate Second Stream 2560 x 1440/ 1920 x 1080/ 1600 x 904/ 1360 x 768/ 1280 x 720/ 640 x 360 (1-25/30 fps), 1920 x 1080/ 1600 x 904/ 1360 x 768/ 1280 x 720/ 640 x 360 (1-50/60 fps), 2560 x 1440 (1-50 fps)
Frame Rate Third Stream 1280 x 960/ 640 x 480 (1-25/ 30 fps)
1280 x 720/ 640 x 360 (1-50/ 60 fps)
Bit Rate (Control) 20 K ~ 80 Mbps
AUDIO
Audio Compression G.711A/ G.711MU/ G.726
Audio Stream Full duplex, Simplex
Audio Interface Line In/ Out, Built-in Microphone
NETWORK
Ethernet 10 Base-T/ 100 Base-TX Ethernet (RJ-45)
Supported Web Browsers Chrome 79.0 Internet Explorer 11
Supported OS Microsoft Windows 10
Protocols IPv4, IPv6, TCP/ IP, HTTP, HTTPS, UPnP, RTSP/ RTP/ RTCP, IGMP/ Multicast, CIFS/ SMB, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Interoperability ONVIF Profile G/ S
Maximum Users Access 10 Users
Security User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128/ 256, SSH/ Telnet closed, PCIDSS compliance, FIPS Chipset Built-In
Languages Supported  English, French, German, Italian, Japanese, Portuguese, Russian,Spanish, Traditional Chinese
EVENTS/ ANALYTICS
Built-in Video Analytics  Intrusion, Loiter, Line crossing, Unattended object, Missing object, Face detection
Event type Video motion detection, Periodically, Alarm input, System boot, Recording notification, Camera tampering detection
Event linkage Event notification using digital output, HTTP, Email and MicroSD card
Region Of Interest 5
ELECTRICAL
Power Supply 12 VDC  24 VAC (50/ 60 Hz), PoE (IEEE 802.3 af, Class 0)
Power Consumption MAX 12.95W
Alarm Inputs/ Outputs 2 In/ 1 Relay Out
MECHANICAL
Dimensions (Ø x H) Ø 126.0 mm x 122.0 mm (Ø 5.0’’ x 4.8’’)
Dome diameter 91.0 mm (3.6’’)
Product Weight 0.58 kg (1.28 lb)
Package Weight 1.14 kg (2.51 lb)
Body Material Polycarbonate/ Metal (die casting aluminum with liquid painting
Construction Color RAL 120-1 (Lyric White)
ENVIRONMENTAL
Operating Temperature Starting Temperature: 0 °C ~ 60 °C (32°F ~ 140 °F)
Working Temperature: -10 °C ~ 60 °C (14 °F ~ 140 °F)
Relative Humidity Less than 90 %, non-condensing
Ingress Protection IP 52
Impact Resistance IK 10 (bubble only
REGULATORY
Emissions FCC PART 15, CE (EN 55032)
Immunity CE (EN 50130-4)
Safety UL LISTED TO UL/ CSA 62368-1, CE (EN 62368-1)
RoHS CE (EN 50581), EAC (TR EAEU 037/ 2016),
UAE (Cabinet Decree No.10 of 2017)

- Sản xuất tại Trung Quốc.

- Bảo hành: 12 tháng.
