Phatsongwifi
Trung Quốc Thương hiệu: Ruijie

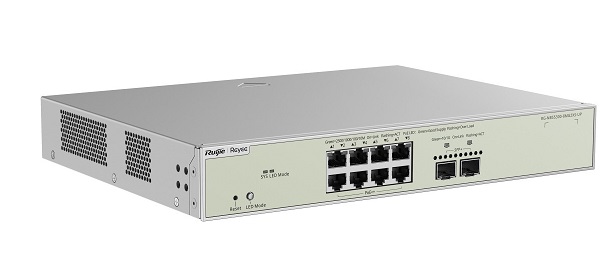

8-Port Gigabit PoE + 2-Port SFP+ Switch RUIJIE RG-NBS5300-8MG2XS-UP

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
8-Port Gigabit PoE + 2-Port SFP+ Switch RUIJIE RG-
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

8-Port Gigabit PoE + 2-Port SFP+ Switch RUIJIE RG-NBS5300-8MG2XS-UP

- Hỗ trợ 8 cổng 10/100/1000Base-T PoE, và 2 cổng SFP+.

- Max. PoE budget: 370W.

- Công suất chuyển mạch: 80Gbps.

- Tốc độ chuyển tiếp: 58.72Mpps.

- Kích thước bảng địa chỉ MAC: 16000.

Thông số kỹ thuật

Basic
10/100/1000/2500Base-T copper ports 8
SFP+ ports 2
PoE/PoE+/PoE++ ports 8
Max. PoE budget 370W
Layer Type Layer 3
Switching capacity 80Gbps
Forwarding rate 58.72Mpps
Switching Cache 12Mbit
ARP Table Size 2000
MAC address table 16000
Maximum VLAN Support 4094
Dimensions (W x D x H) 300mm x 230mm x 43.6mm (The depth excludes the front panel)
300mm x 233mm x 43.6mm (The depth includes the front panel)
Weight 3.25kg
MTBF 400000H
Layer 2 Features
Jumbo Frame 9216
Flow Control Yes
STP (IEEE 802.1d) Yes
STP (IEEE 802.1d) Yes
MSTP (IEEE 802.1s) non-supported
Port Fast Yes
BPDU Guard Yes
Errdisable Recovery Yes
Max. Aggregation Group 16
Max. Member per Group 8
Unknow Unicast Storm Suppression Yes
Multicast / Broadcast Storm Suppression Yes
Many-to-One Mirroring Yes
VLAN Range 1~4094
Port-based VLAN Yes
MAC-based VLAN non-supported
IP-based VLAN non-supported
Voice VLAN Yes
RLDP Yes
LLDP / LLDP-MED Yes
Cable Testing Yes
IGMP Snooping v1/v2/v3 Y/Y/N
Layer 3 Features Yes
Static Routing Yes
RIP/RIPng Yes
OSPFv2/OSPFv3 Yes
VCS 2
Max. No. of SVI (IPv4) 32
Max. No. of SVI (IPv6) 32
Software Features
Ping Yes
Traceroute Yes
ACL Entries Yes
Static Routing Yes
IP Standard ACL Yes
MAC-based Extended ACL Yes
IP-based Extended ACL Yes
Port-based Rate Limit (Ingress/Egress) Yes
SNMP v1/v2c/v3 Yes
DHCP Server Yes
Web Management Yes
Management IP 10.44.77.200
HTTP/HTTPS Yes
Cloud Management Yes
SON (Self-Organizing Network) with IP Yes
Camera Recognition Yes
Loop Prevention Yes
Loop Notification Yes
Protection Port Yes
IP Source Guard Yes
Anti-ARP Spoofing Yes
DHCP Snooping Yes
Physical Features
DHCP Client Yes
Flash Memory 256MB
Reset Button front
Cable Hot-swappable Yes
Power Supply Slot Single, fixed power supply
Power Supplies 100 - 240V AC, 10A
Power Consumption (220VAC) No PoE load: 42.48W;
Full PoE load: 431.86W
EEE Yes
Fan 2
Airflow Left/Right-to-Rear
Fan Adaptive Speed Adjustment Yes
Acoustic Noise <40dB
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% RH
Storage Humidity 5% to 95% RH
Port Surge 6 kV
Operating Altitude (meters) -500 to 5000
Certificate CE, RoHS

- Bảo hành: 5 năm.

8-Port Gigabit PoE + 2-Port SFP+ Switch RUIJIE RG-NBS5300-8MG2XS-UP

- Hỗ trợ 8 cổng 10/100/1000Base-T PoE, và 2 cổng SFP+.

- Max. PoE budget: 370W.

- Công suất chuyển mạch: 80Gbps.

- Tốc độ chuyển tiếp: 58.72Mpps.

- Kích thước bảng địa chỉ MAC: 16000.

Thông số kỹ thuật

Basic
10/100/1000/2500Base-T copper ports 8
SFP+ ports 2
PoE/PoE+/PoE++ ports 8
Max. PoE budget 370W
Layer Type Layer 3
Switching capacity 80Gbps
Forwarding rate 58.72Mpps
Switching Cache 12Mbit
ARP Table Size 2000
MAC address table 16000
Maximum VLAN Support 4094
Dimensions (W x D x H) 300mm x 230mm x 43.6mm (The depth excludes the front panel)
300mm x 233mm x 43.6mm (The depth includes the front panel)
Weight 3.25kg
MTBF 400000H
Layer 2 Features
Jumbo Frame 9216
Flow Control Yes
STP (IEEE 802.1d) Yes
STP (IEEE 802.1d) Yes
MSTP (IEEE 802.1s) non-supported
Port Fast Yes
BPDU Guard Yes
Errdisable Recovery Yes
Max. Aggregation Group 16
Max. Member per Group 8
Unknow Unicast Storm Suppression Yes
Multicast / Broadcast Storm Suppression Yes
Many-to-One Mirroring Yes
VLAN Range 1~4094
Port-based VLAN Yes
MAC-based VLAN non-supported
IP-based VLAN non-supported
Voice VLAN Yes
RLDP Yes
LLDP / LLDP-MED Yes
Cable Testing Yes
IGMP Snooping v1/v2/v3 Y/Y/N
Layer 3 Features Yes
Static Routing Yes
RIP/RIPng Yes
OSPFv2/OSPFv3 Yes
VCS 2
Max. No. of SVI (IPv4) 32
Max. No. of SVI (IPv6) 32
Software Features
Ping Yes
Traceroute Yes
ACL Entries Yes
Static Routing Yes
IP Standard ACL Yes
MAC-based Extended ACL Yes
IP-based Extended ACL Yes
Port-based Rate Limit (Ingress/Egress) Yes
SNMP v1/v2c/v3 Yes
DHCP Server Yes
Web Management Yes
Management IP 10.44.77.200
HTTP/HTTPS Yes
Cloud Management Yes
SON (Self-Organizing Network) with IP Yes
Camera Recognition Yes
Loop Prevention Yes
Loop Notification Yes
Protection Port Yes
IP Source Guard Yes
Anti-ARP Spoofing Yes
DHCP Snooping Yes
Physical Features
DHCP Client Yes
Flash Memory 256MB
Reset Button front
Cable Hot-swappable Yes
Power Supply Slot Single, fixed power supply
Power Supplies 100 - 240V AC, 10A
Power Consumption (220VAC) No PoE load: 42.48W;
Full PoE load: 431.86W
EEE Yes
Fan 2
Airflow Left/Right-to-Rear
Fan Adaptive Speed Adjustment Yes
Acoustic Noise <40dB
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Operating Humidity 10% to 90% RH
Storage Humidity 5% to 95% RH
Port Surge 6 kV
Operating Altitude (meters) -500 to 5000
Certificate CE, RoHS

- Bảo hành: 5 năm.

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
