48-Port 10/100/1000BASE-T+4-Port GE SFP Switch Ruijie RG-S2952G-E V3

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: 48-Port 10/100/1000BASE-T+4-Port GE SFP Switch Rui
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

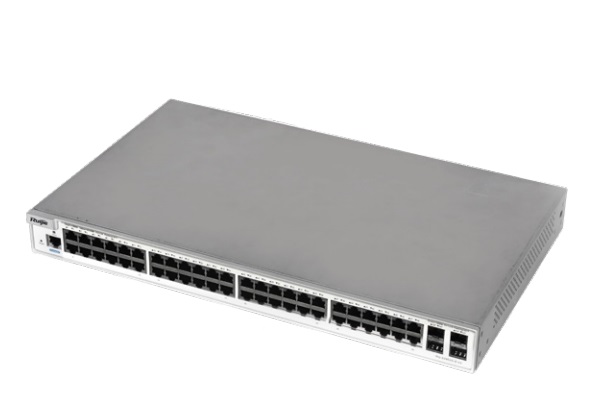

48-Port 10/100/1000BASE-T+4-Port GE SFP Switch Ruijie RG-S2952G-E V3

- Hỗ trợ 48 cổng 10/100/1000BASE-T.

- Hỗ trợ 4 cổng GE SFP ports (Non-Combo).

- Tốc độ chuyển mạch: Lên đến 256Gbps.

- Tốc độ chuyển gói tin: Lên đến 132Mpps.

- Dễ dàng quản lý và cấu hình qua Ruijie Cloud.

- Tích hợp Web Management.

- Hỗ trợ IEEE802.1Q/MAC VLAN/Private VLAN/Protocol VLAN/Voice VLAN.

- Nguồn điện AC: 100~240V, 50/60Hz.

- Nhiệt độ hoạt động: 0°C~50°C.

- Kích thước (W x D x H): 440 × 260 × 43.6 mm.

Đặc tính kỹ thuật

Model	RG-S2952G-E V3
Ports	48 10/100/1000BASE-T ports 4 1G SFP ports (non-combo)
Fan Slots	Fixed
Management Ports	1 console port
Switching Capacity	Up to 256Gbps
Packet Forwarding Rate	Up to 132Mpps
Port Buffer	1.5MB
ARP Table	1000
MAC Address	Up to 16K
Routing Entries	500
IP Host Entries (IPv4/IPv6)	500 (IPv4/IPv6)
ACL Entries	Up to 1,500
ACL	Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL, ACL logging, ACL counter, ACL remark, Global ACL, ACL redirect
QoS	802.1p/DSCP/TOS traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR; Input port-based speed limit; Port-based traffic recognition; Each port supports 8 queue priorities
VLAN	4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP
QinQ	Basic QinQ, Flexible QinQ, 1:1 VLAN switching
Link Aggregation	AP, LACP, Flow balance
Port Mirroring	Many-to-one mirroring, One-to-Many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN
Spanning Tree Protocols	IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC filter, TC protection, LOOP guard, ROOT guard
DHCP	DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay
Multiple Spanning Tree Protocol (MSTP) Instances	64
Maximum Aggregation Port (AP)	Up to 128
Multicast	IGMP v1/v2/v3 snooping, IGMP SGVL/IVGL, IGMP filter, IGMP fast leave, MLD snooping v1/v2
SDN	OpenFlow 1.0, future support OpenFlow 1.3
EEE Format	Support IEEE 802.3az standard
G.8032	Support
L2 Features	MAC, EEE, ARP, VLAN, Basic QinQ, Felix QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2/v3 snooping, IGMP SGVL/IVGL, IGMP filter, IGMP fast leave, DHCP, Jumbo frame, RLDP, LLDP, REUP, G.8032 ERPS, Layer 2 protocol tunnel
Layer 2 Protocols	IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1x, IEEE802.3ab, IEEE802.1Q (GVRP), IEEE802.1d, IEEE802.1w, IEEE802.1s
Security	Binding of the IP address, MAC address, and port address; Binding of the IPv6, MAC address, and port address; Filter illegal MAC addresses; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Restriction on the rate of ARP packets; Gateway anti-ARP spoofing; Broadcast suppression; Hierarchical management by administrators and password protection; RADIUS and TACACS+; AAA security authentication (IPv4/IPv6) in device login management; SSH and SSH V2.0; BPDU guard; IP source guard; CPP, NFPP; Port protection
Layer 3 Features	IPv4 static routing, IPv6 static routing, RIP, RIPng, OSPFv2/v3, ARP proxy, Neighbor Discovery, VRRP
Layer 3 Protocols (IPv4)	Static routing, RIP, RIPng, OSPFv2/v3
IPv4 Features	Ping, Traceroute
IPv6 Features	0-64 any length mask, ICMPv6, Neighbor Discovery, Manually configure local address, Automatically create local address, IPv6 Ping, IPv6 Tracert, IPv6 extender option head,VRRP v3
Basic IPv6 Protocols	IPv6 addressing, Neighbor Discovery (ND), IPv6 ACL, ICMPv6, IPv6 Ping, IPv6 Tracert
IPv6 Routing Protocols	Static routing, RIPng, OSPFv3
VSU (Virtual Switch Unit)	Support (up to 9 stack members, to ensure the effectiveness of the use, 4 members are recommended)
Zero Configuration	CWMP(TR069)
Reliability	RAS VSU (virtualization technology for virtualizing multiple devices into 1); GR for RIP/OSPF; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol)
Manageability	SNMPv1/v2c/v3, CLI (Telnet/Console), RMON (1, 2, 3, 9), SSH, Syslog/Debug, RSPAN/ERSPAN, NTP/SNTP, FTP, TFTP, Web, SFLOW, support cable detection and port sleep mode
Smart Temperature Control	Auto fan speed adjustment; Fan malfunction alerts; Fan status check
Other Protocols	FTP, TFTP, DNS client, DNS static
Dimensions (W x D x H)	440 × 260 × 43.6 mm
Rack Height	1RU
Weight	≤4kg
MTBF	372690 hours
Lightning Protection	6KV
Power Supply	AC input: Rated voltage range: 100V to 240V AC Maximum voltage range: 90V to 264V AC Frequency: 50 to 60Hz HVDC input: Input voltage range: 192V to 290V DC
Power Consumption	≤40W
Temperature	Operating temperature: 0°C to 50°C Storage temperature: -40°C to 70°C
Humidity	Operating humidity: 10% to 90%RH Storage humidity: 5% to 95%RH
Operating Altitude	-500m to 5,000m
Safety Standards	IEC 60950-1, EN60950-1
Emission Standards	EN 300 386, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11

- Bảo hành: 3 năm.
