Trung Quốc Thương hiệu: TP-Link

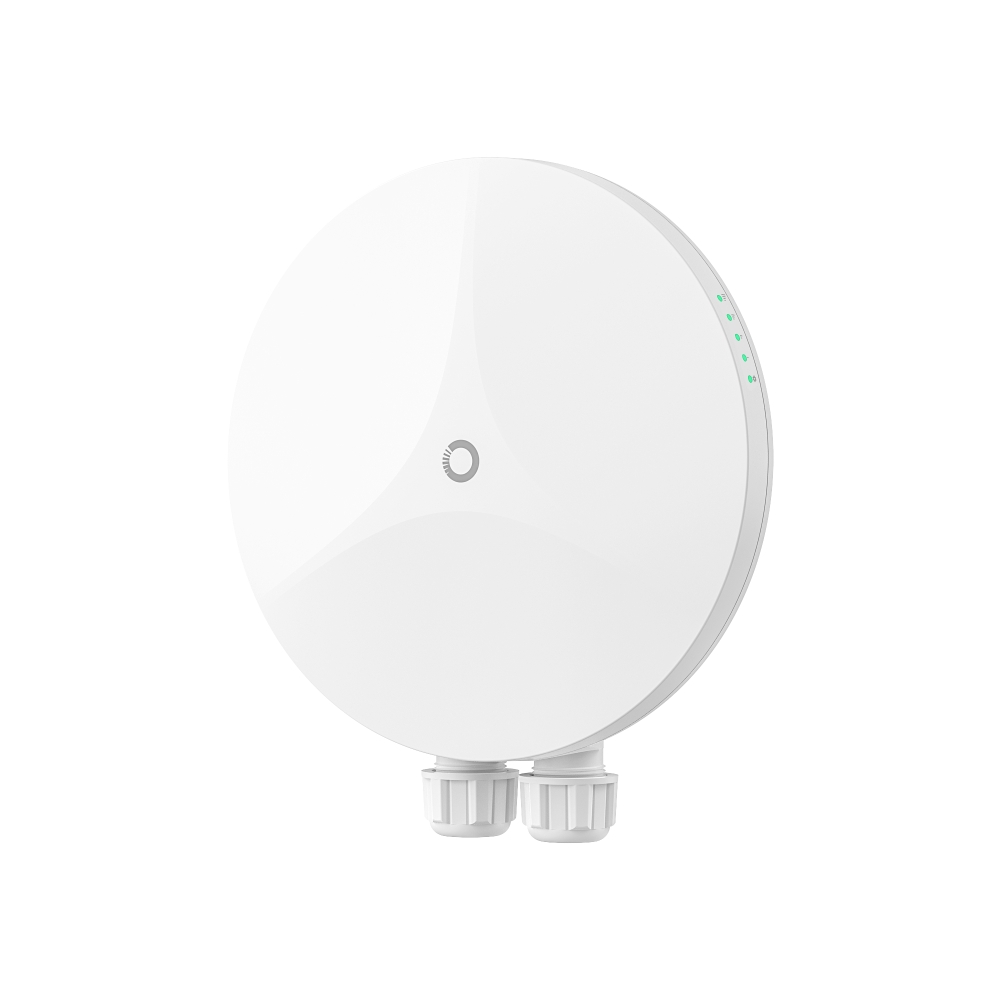

Thiết Bị Phát Sóng Wifi TP-Link Beam Bridge 7 KIT | Omada Wi-Fi 7 5 GHz & 6 GHz MLO PtP Wireless Bridge

NONE

Giá: Liên hệ

Tình trạng: Hàng chính hãng - New 100% (CO, CQ đầy đủ)
Part Number: Beam Bridge 7 KIT
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0905663191 - 0901188385 - 0777621381 để có giá tốt.
Mô tả: Omada Wi-Fi 7 5 GHz & 6 GHz MLO PtP Wireless Bridge

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng của Viettel Post, Nasco, 247Express và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Wi-Fi 7 Fiber-Grade Performance
PtP Wireless Bridge KIT

Beam Bridge 7 KIT

Multi-Gig Wireless Transmission Within
0.6 mi (1 km)*
AFC-Enabled
6 GHz
Seamless
5 GHz / 6 GHz Auto-Failover
IP68 Weatherproof
Enclosure
Auto-Pairing with Preconfigured Kit
1× 2.5G RJ45 Port &
1× SFP+ Port
802.3at PoE or 54V Passive PoE
Centralized
Management via
Web or App

Fiber-Grade PtP Wireless Backbone

Driven by integrated 14 dBi directional antennas, experience multi-gigabit throughput that turns your point-to-point link into a fiber-gride extension of your high-speed local network at a long distance.

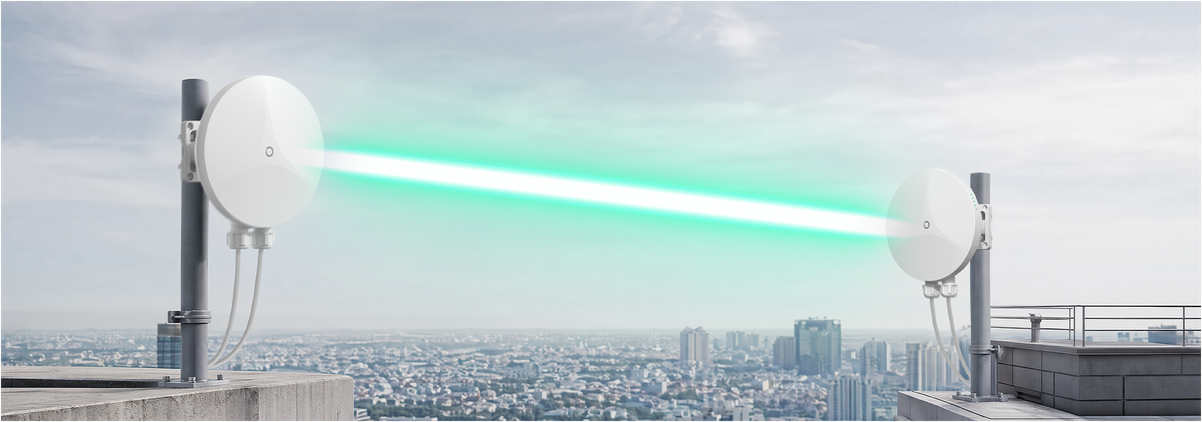

Wireless point-to-point link between two outdoor units

Based on TP-Link’s real field testing, the bidirectional wireless transmission is over 3.5 Gbps at 0.6 mi (1 km) using Wi-Fi 7’s 5 + 6 GHz MLO technology,

while over 1.4 Gbps at the same distance with 5 GHz only. Actual performance varies as a result of local regulations, environmental factors, and network configuration.

Plug-and-Play Effortless Installation

Auto-Pairing

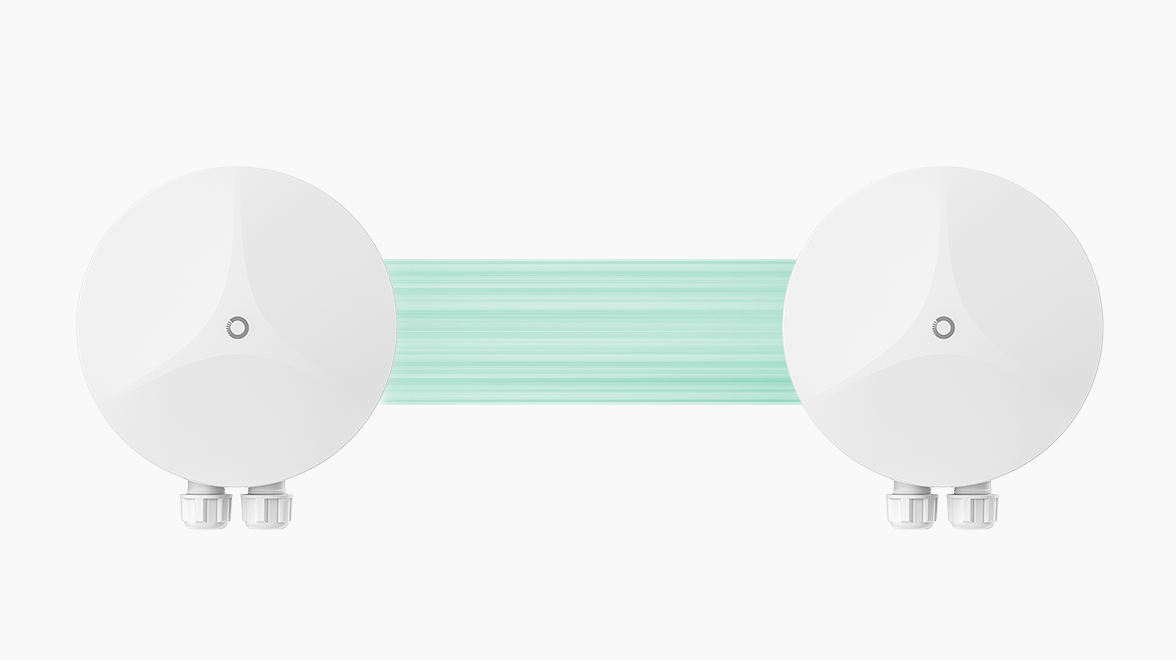

Auto-Pairing, No Manual Setup Needed

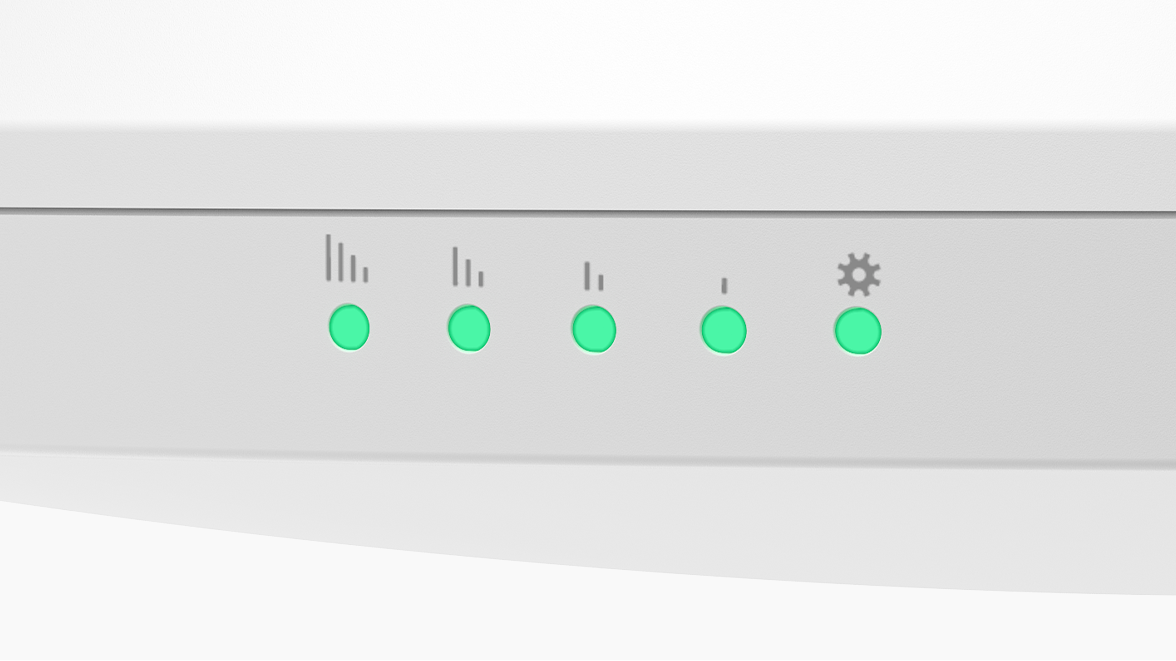

Agile LED Signal Indicators for Easy Alignment

6 GHz Band Unlocked by AFC for Outdoor Uses

AFC compliance unlocks the 6 GHz band, offering cleaner spectrum and minimized interference essential for reliable outdoor connectivity.**

**Active internet connection is required for initial AFC (Automated Frequency Coordination) verification to enable 6GHz transmission.

Versatile Connectivity Options for Seamless Integration

Equipped with a 2.5G PoE+ port and an SFP+ port, it eliminates wired bottlenecks to fully unleash Wi-Fi 7 speeds. Maximize your deployment flexibility with convenient single-cable PoE power for local installs, or leverage fiber connectivity for long-distance runs.

2.5G Port

SFP+ Port

(Supports 802.3at PoE or 54V Passive PoE)

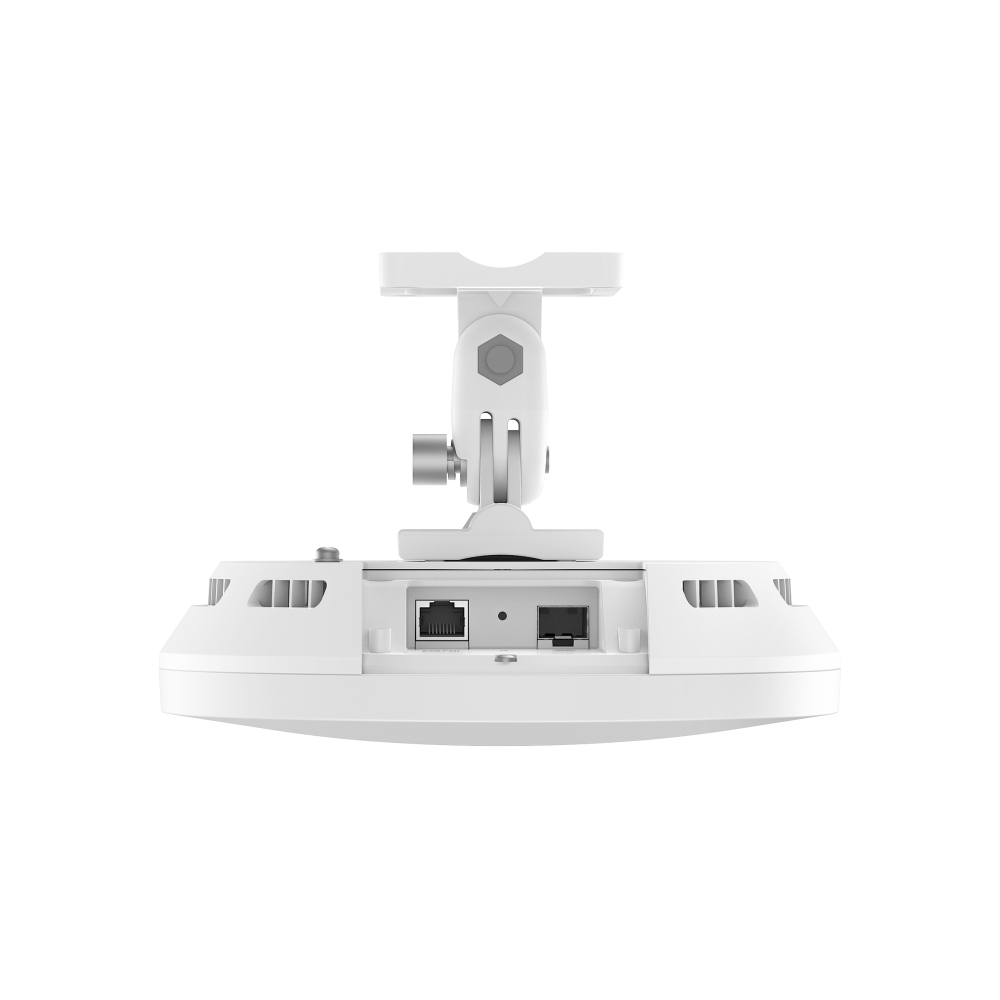

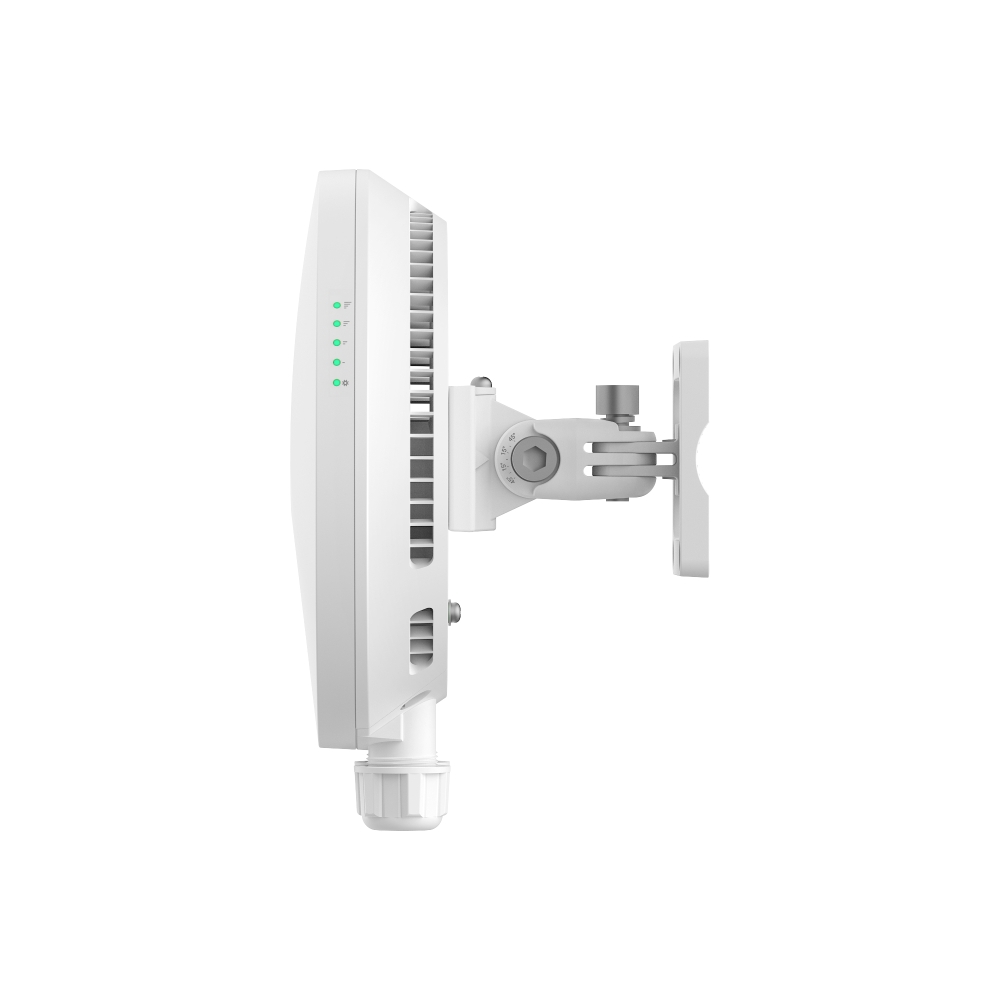

Easy Alignment with Adjustable Mounting Bracket & App Guidance

Before Alignment
After Alignment

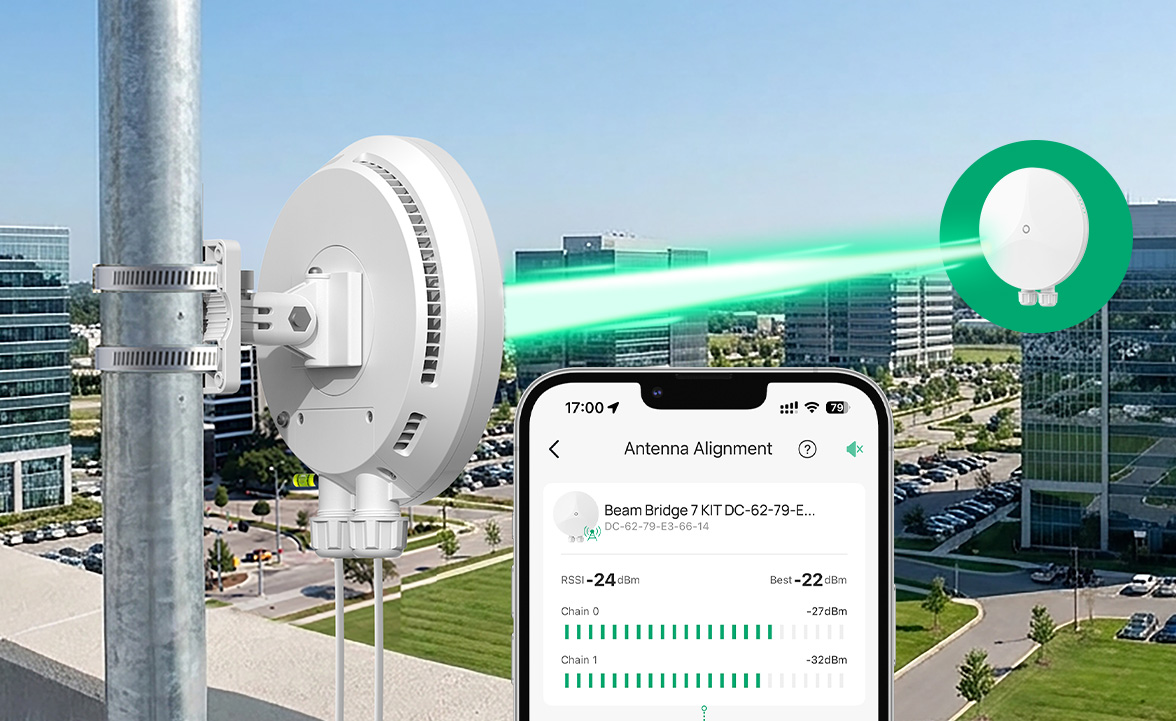

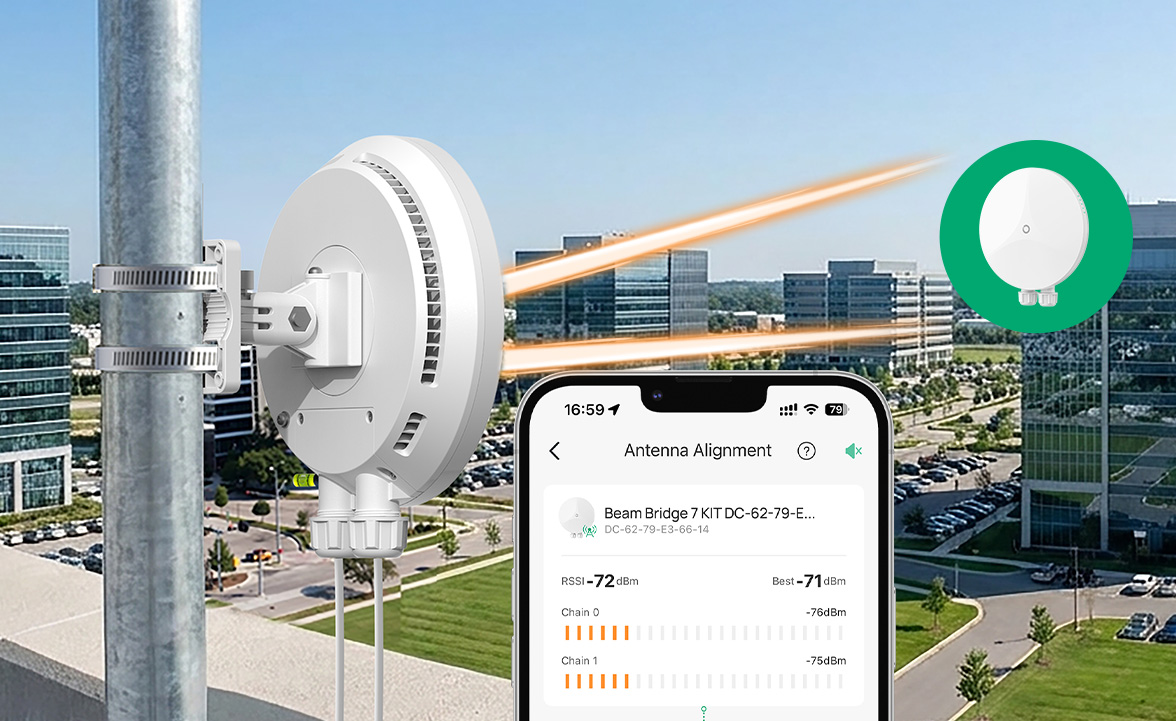

Effortless App-Guided Alignment

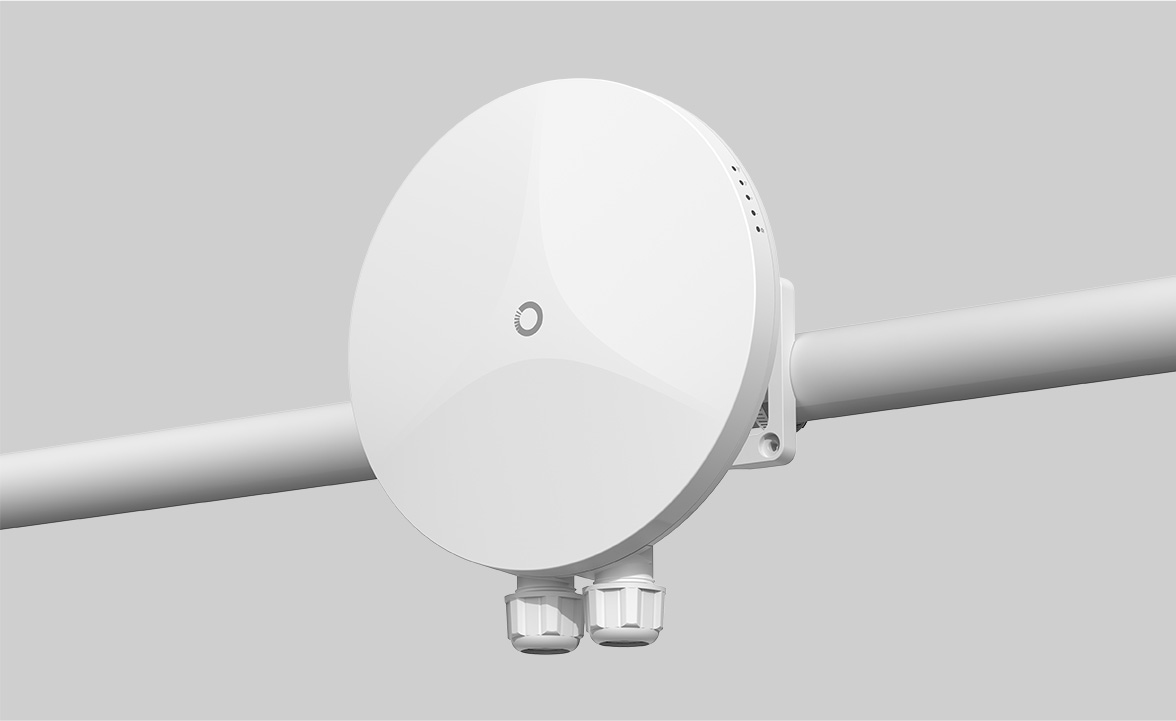

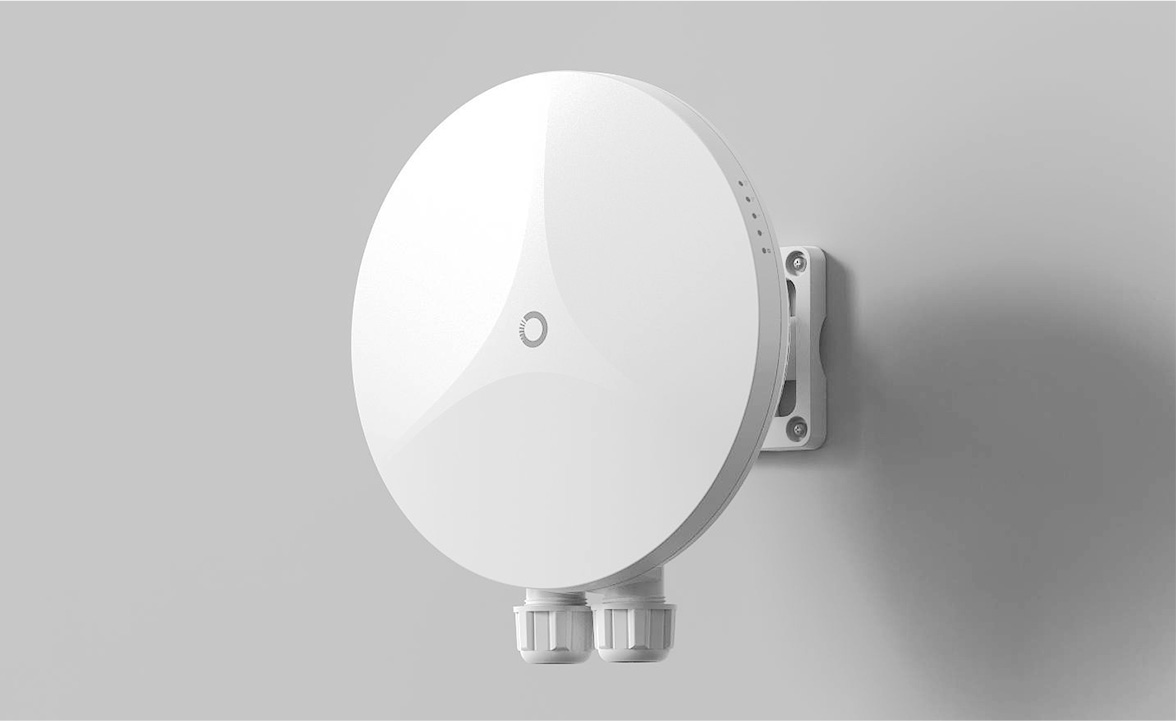

Wall/Pole Mounting with Adjustable Bracket

Industry-Leading IP68 Weatherproof with UV Resistant Coating

Ensures reliable performance and durability in harsh outdoor conditions, protecting the device from water, dust, and UV damage.

IP68 Weatherproof Enclosure

6kV Lightning Protection

-30 °C to 70 °C Working Range

High-Throughput Backhaul for Complex Environments

Beam Bridge 7 KIT creates a long-distance point-to-point link for your critical infrastructure, delivering fiber-grade stability wirelessly.

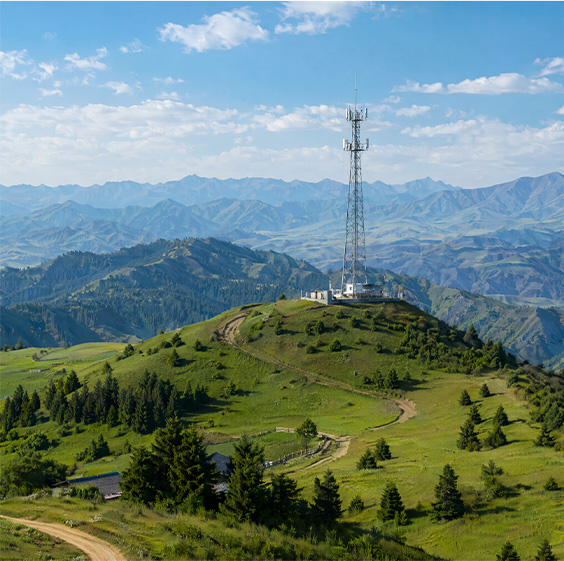

WISP Base
Stations

Deliver long-reach fiber uplinks with a highly stable and uninterrupted wireless backhaul.
Business
Campuses

Bridge multiple office buildings with a multi-gigabit wireless backbone.

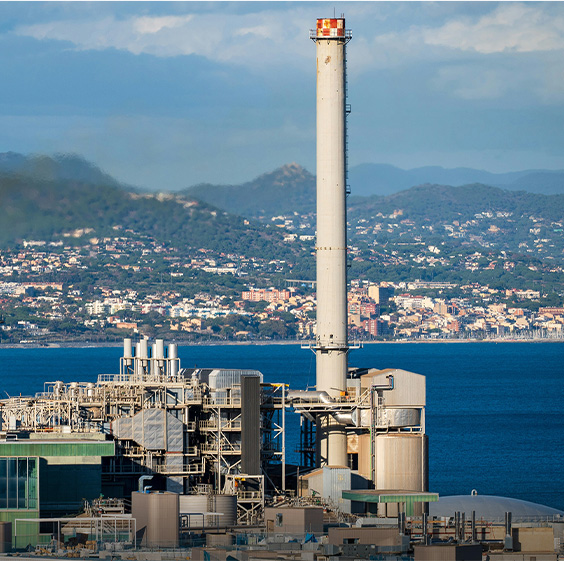

Factories

Maintain a rock-solid, cross-facility network in complex industrial settings.
Construction Sites

Rapidly deploy high-capacity temporary links for immediate site connectivity.

Standalone & Remote Monitoring with SDN Management

TÍNH NĂNG PHẦN CỨNG
Giao diện	• 1× 2.5G Ethernet Port (RJ45) • 1× 10G SFP+ • 1× Grounding Terminal
Nút	1× Reset Button
Bộ cấp nguồn	• 802.3at PoE • 54V Passive PoE (Passive PoE Adapter Included)
Điện năng tiêu thụ	18.18W
Kích thước ( R x D x C )	7.87 × 8.92 × 2.12 in (200 × 226.7 × 54 mm) (without mount)
Ăng ten	14 dBi
Độ rộng bước sóng Ăng ten	Horizontal: 45°, Vertical: 45°
Weatherproof Enclosure	IP68
Băng tần	• 5 GHz: 20 MHz/40 MHz/80 MHz/160 MHz/240 MHz • 6 GHz: 20 MHz/40 MHz/80 MHz/160 MHz/320 MHz
Lắp	Pole / Wall Mounting (Kits Included)
QUẢN LÝ
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Central (Cloud-Based) • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
SNMP	Yes
SSH	Yes
Quản lý dựa trên Web	Yes
Zero-Touch Provisioning	Yes
TÍNH NĂNG WI-FI
PtP	Yes
Transmission Distance	3 km (1.9 mi)
Chuẩn Wi-Fi	IEEE 802.11 a/n/ac/ax/be
Băng tần	5 GHz, 6 GHz
Tốc độ tín hiệu	• 5 GHz: Up to 4324 Mbps • 6 GHz: Up to 5765 Mbps
Tính năng Wi-Fi	• Preamble Puncturing • BSS Coloring • Multi-Link Operation (MLO) • MU-MIMO • Maximum number of associated STAs: 16 • Speed Test • Channel Optimization • Antenna Alignment • ACS (Automatic Channel Selection) • Rate Limit • Guest Network
Bảo mật Wi-Fi	• VLAN • Rogue AP Detection • Wireless Encryption
Công suất truyền tải	FCC: 4-25 dBm (5 GHz, U-NII-1 & U-NII-3) 4-21 dBm (5 GHz, U-NII-2A & U-NII-2C) 4-25 dBm (6 GHz)
KHÁC
Chứng chỉ	FCC, IC, BSMI, NCC
Sản phẩm bao gồm	• Beam Bridge 7 KIT • Installation Guide • Mounting Kits • Passive PoE Adapters • Power Cords • Waterproof Seals
Lightning Protection	Ethernet Ports: ±6 kV
Môi trường	• Operating Temperature: -30 ℃–70 ℃ (-22 ℉–158 ℉); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
Trọng lượng	1.1 kg (2.43 lb)
