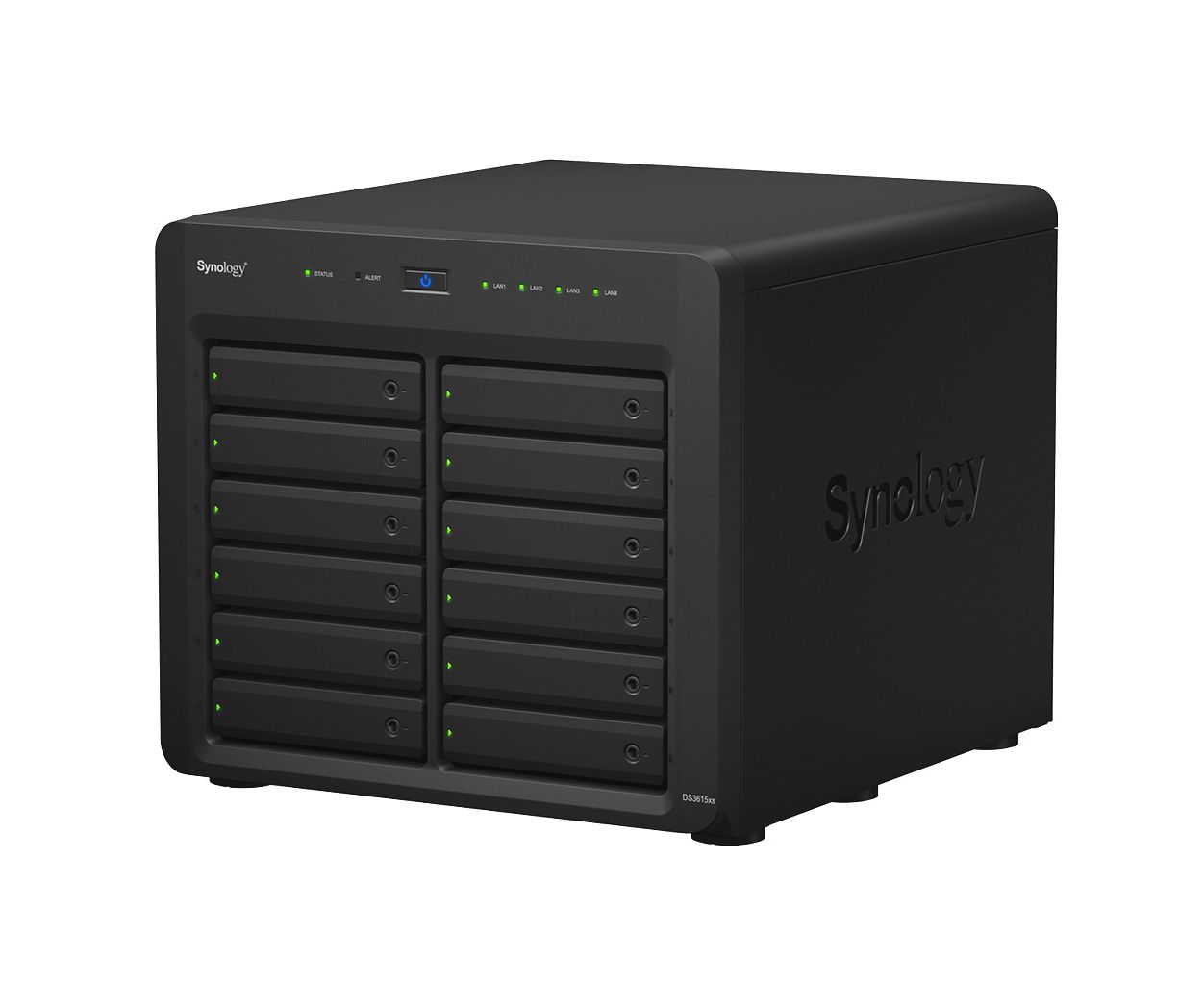

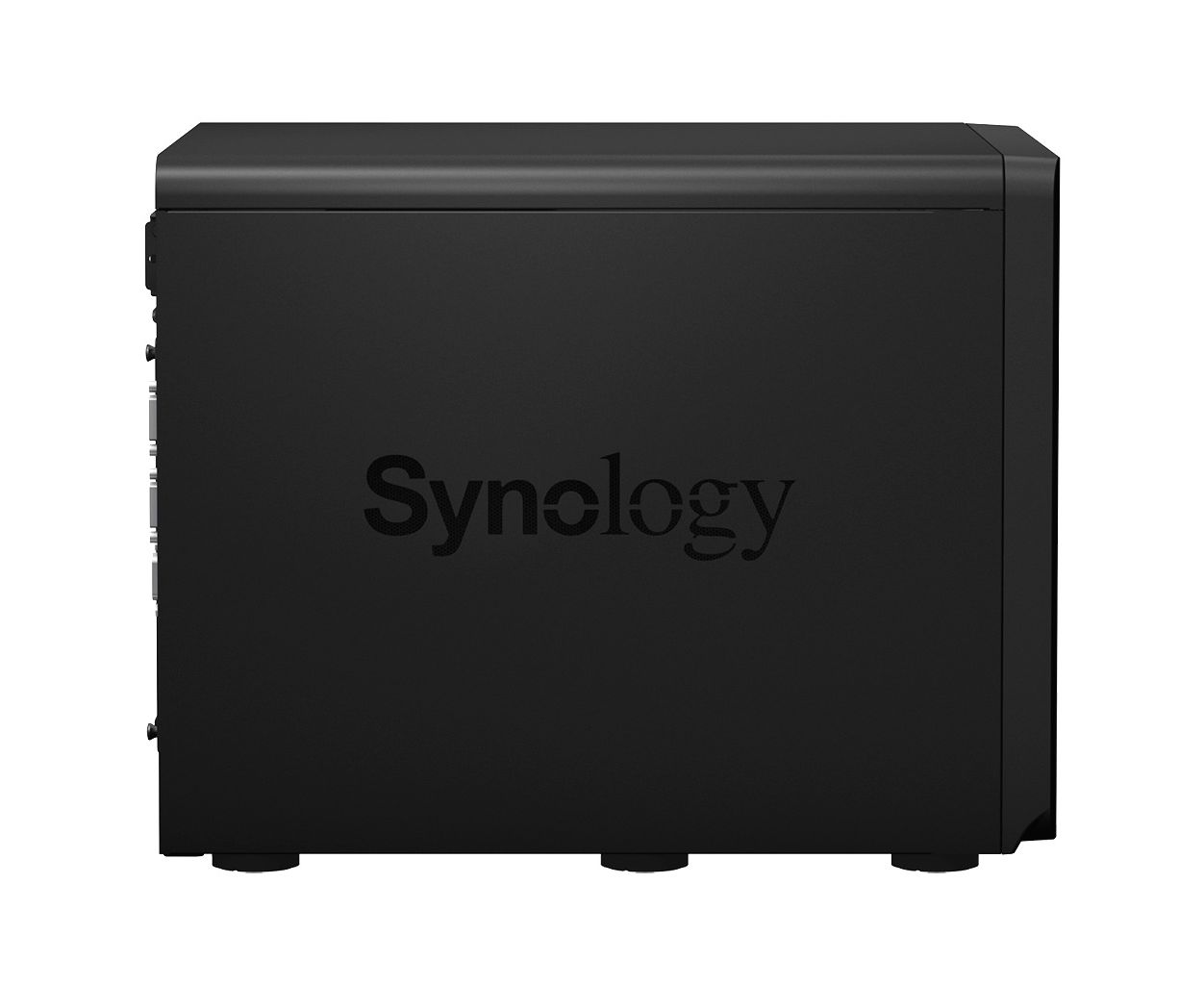

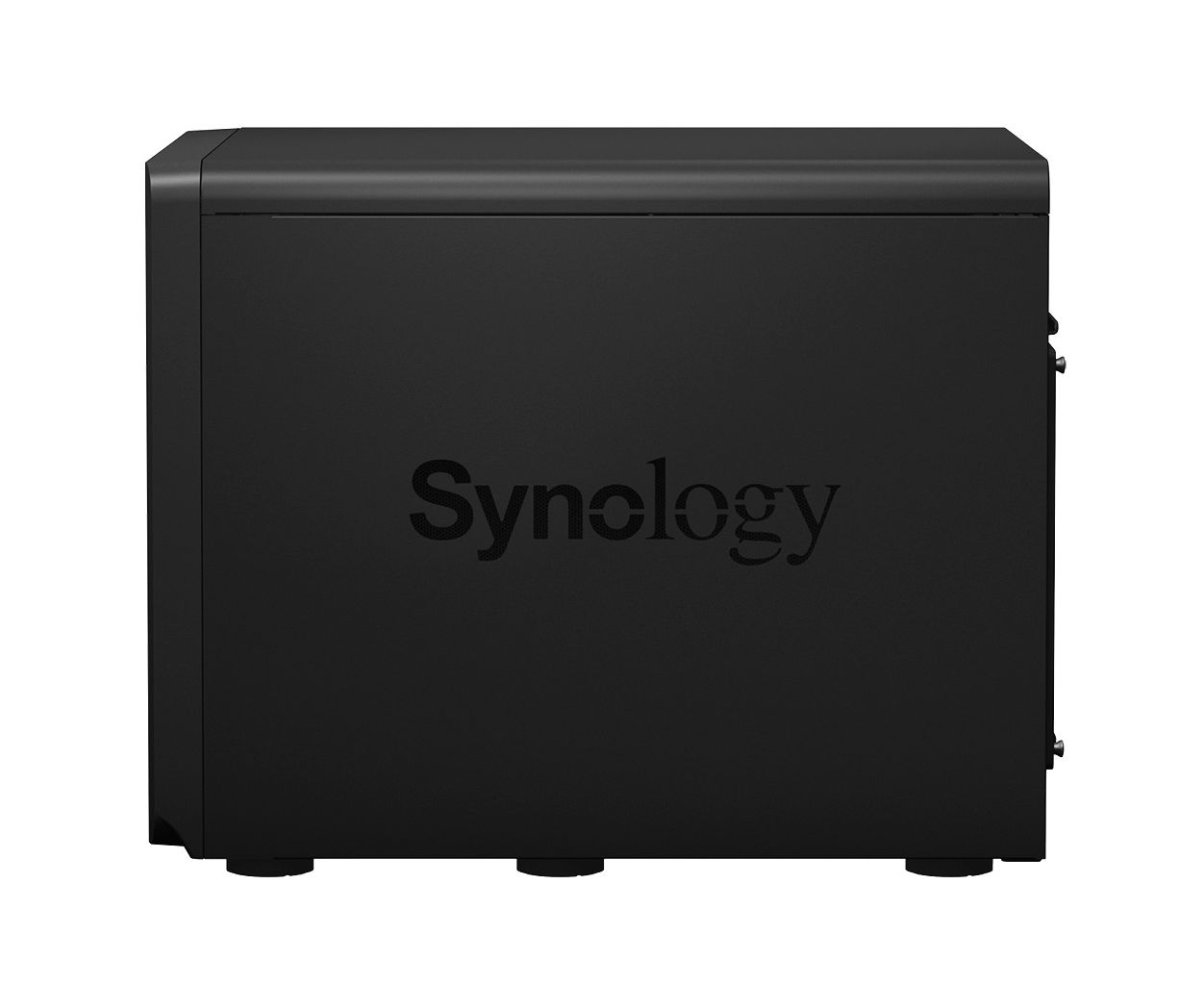

Thiết bị lưu trữ Synology DS3617xsII

CPU

CPU ModelIntel Xeon D-1527
CPU Quantity1
CPU Architecture64-bit
CPU Frequency4-core 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)

Memory

System Memory16 GB DDR4 ECC SODIMM
Memory Module Pre-installed16 GB (8 GB x 2)
Total Memory Slots4
Maximum Memory Capacity48 GB (16 GB + 16 GB x 2)
Notes

• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays12
Maximum Drive Bays with Expansion Unit36 (DX1215 x 2)
Compatible Drive Type* (See all supported drives)

• 3.5" SATA HDD
• 2.5" SATA HDD
• 2.5" SATA SSD

Maximum Single Volume Size*

• 200 TB (32 GB memory required)
• 108 TB

Hot Swappable Drive

Notes

• "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
• Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).

External Ports

RJ-45 1GbE LAN Port4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port*2
Expansion Port2
NotesThe USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion1 x Gen3 x8 slot (x8 link)

File System

Internal Drives

• Btrfs
• EXT4

External Drives

• Btrfs
• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT*

NotesexFAT Access is purchased separately in Package Center.

Appearance

Size (Height x Width x Depth)270 mm x 300 mm x 340 mm
Weight9.8 kg

Others

System Fan120 mm x 120 mm x 2 pcs
Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

Easy Replacement System Fan

Power Recovery

Noise Level*22.3 dB(A)
Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter500 W
AC Input Power Voltage100 V to 240 V AC
Power Frequency50/60 Hz, Single Phase
Power Consumption*108.2 W (Access)
53.4 W (HDD Hibernation)
British Thermal Unit368.96 BTU/hr (Access)
182.09 BTU/hr (HDD Hibernation)
Notes

• Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
• Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature5°C to 40°C (40°F to 104°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Relative Humidity5% to 95% RH

Certification

• FCC
• CE
• BSMI
• EAC
• KC
• VCCI
• RCM

Warranty

5 Years
NotesThe warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

RoHS Compliant

Packaging Content

• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 1
• RJ-45 LAN Cable X 2
• Quick Installation Guide X 1

Optional Accessories

• DDR4 ECC SODIMM: D4ECSO-2666-16G
• Expansion Units: DX1215
• 3.5" SATA HDD: HAT5300
• 2.5" SATA SSD: SAT5200
• M.2 SSD Adapter Card: M2D18
• 25GbE Network Interface Card: E25G21-F2
• 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
• VisualStation: VS960HD/VS360HD
• Surveillance Device License Pack

Notes

• All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
• DS3617xs with M2D18 can only support M.2 SATA SSD. M.2 NVMe/AHCI PCIe SSD is not supported.

CPU

CPU ModelIntel Xeon D-1527
CPU Quantity1
CPU Architecture64-bit
CPU Frequency4-core 2.2 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)

Memory

System Memory16 GB DDR4 ECC SODIMM
Memory Module Pre-installed16 GB (8 GB x 2)
Total Memory Slots4
Maximum Memory Capacity48 GB (16 GB + 16 GB x 2)
Notes

• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays12
Maximum Drive Bays with Expansion Unit36 (DX1215 x 2)
Compatible Drive Type* (See all supported drives)

• 3.5" SATA HDD
• 2.5" SATA HDD
• 2.5" SATA SSD

Maximum Single Volume Size*

• 200 TB (32 GB memory required)
• 108 TB

Hot Swappable Drive

Notes

• "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
• Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB).

External Ports

RJ-45 1GbE LAN Port4 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port*2
Expansion Port2
NotesThe USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion1 x Gen3 x8 slot (x8 link)

File System

Internal Drives

• Btrfs
• EXT4

External Drives

• Btrfs
• EXT4
• EXT3
• FAT
• NTFS
• HFS+
• exFAT*

NotesexFAT Access is purchased separately in Package Center.

Appearance

Size (Height x Width x Depth)270 mm x 300 mm x 340 mm
Weight9.8 kg

Others

System Fan120 mm x 120 mm x 2 pcs
Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

Easy Replacement System Fan

Power Recovery

Noise Level*22.3 dB(A)
Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter500 W
AC Input Power Voltage100 V to 240 V AC
Power Frequency50/60 Hz, Single Phase
Power Consumption*108.2 W (Access)
53.4 W (HDD Hibernation)
British Thermal Unit368.96 BTU/hr (Access)
182.09 BTU/hr (HDD Hibernation)
Notes

• Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
• Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature5°C to 40°C (40°F to 104°F)
Storage Temperature-20°C to 60°C (-5°F to 140°F)
Relative Humidity5% to 95% RH

Certification

• FCC
• CE
• BSMI
• EAC
• KC
• VCCI
• RCM

Warranty

5 Years
NotesThe warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

RoHS Compliant

Packaging Content

• Main Unit X 1
• Accessory Pack X 1
• AC Power Cord X 1
• RJ-45 LAN Cable X 2
• Quick Installation Guide X 1

Optional Accessories

• DDR4 ECC SODIMM: D4ECSO-2666-16G
• Expansion Units: DX1215
• 3.5" SATA HDD: HAT5300
• 2.5" SATA SSD: SAT5200
• M.2 SSD Adapter Card: M2D18
• 25GbE Network Interface Card: E25G21-F2
• 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
• VisualStation: VS960HD/VS360HD
• Surveillance Device License Pack

Notes

• All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
• DS3617xs with M2D18 can only support M.2 SATA SSD. M.2 NVMe/AHCI PCIe SSD is not supported.
