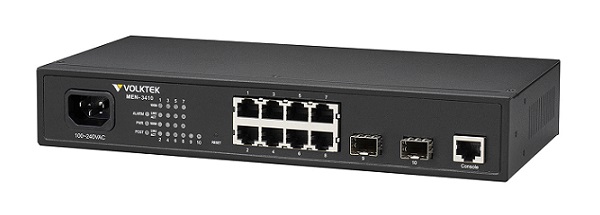

MEN-3410 is an 8-port 10/100/1000 RJ45 downlink, and 2-port FX/GbE SFP ports uplink managed switch designed for indoor broadband applications with basic needs in network infrastructure. This device is compatible with third-party devices and for scalable topologies. To keep regular internet speeds this device uses the Quality of Service (QoS) protocol to balance the use of bandwidth. It meets the requirements of triple-play broadband services along with low latency streaming - TV, internet, and phone. The management features allow safe, easy access and configuration of this device, using the web GUI and command line. It is designed to continue working during sudden power cuts with the help of an emergency battery parallel to the DC power jack input. To reduce the need for continuous maintenance, the fanless design of this switch avoids the accumulation of debris in the device, which also allows it to operate silently and hinder noise disturbances. The temperature operation of 0°C~50°C (32°F~122°F) allows for indoor network room in-rack or cabinet storage.
Non-stop Network with Redundant Power
Powered by both AC and DC with battery backup option to ensure non-stop operation.
Extensive Security Features
Equipped with defense mechanisms such as ACL (Access Control List), DHCP (Dynamic Host Configuration Protocol) snooping, ARP (Address Resolution Protocol), IEEE 802.1X, and Port Security to deliver a stable and secure network.
Efficient Traffic Prioritization
Effective QoS mechanisms for priority assignment and transmission of dedicated traffics to specific applications.
Efficient Network Monitoring and Management
SNMP (Simple Network Management Protocol) v1/v2c/v3 and RMON (Remote Monitoring) for real-time traffic analysis, remote monitoring, and management.
Rapid Ring for Fast Network Recovery
Industrial ring capable of switching a faulty link to the redundant link in milliseconds.
Standards
IEEE 802.3
10BASE-T
IEEE 802.3u
100BASE-TX
IEEE 802.3ab
1000BASE-T
IEEE 802.3u
100BASE-FX
IEEE 802.3z
1000BASE-SX/LX
IEEE 802.3
Nway Auto-negotiation
IEEE 802.3x
Flow Control
IEEE 802.3ad
Link Aggregation
IEEE 802.3az
Energy Efficient Ethernet (EEE)
IEEE 802.1AB
LLDP
IEEE 802.1D
STP
IEEE 802.1w
RSTP
IEEE 802.1p
Class of Service
IEEE 802.1Q
VLAN Tagging
IEEE 802.1X
Port Authentication
Interface
Ports
8 x 10/100/1000BASE-T RJ45 Ports
2 x 100FX/GbE SFP Slots
1 x RJ45 Console Port
LED Panel
PWR, ALM, POST, 1000, LNK/ACT
Power
Input Voltage
Primary inputs: AC 100~240VAC 50~60Hz,
15V DC Power Adapter
Redundant inputs: 12V Battery
Power Consumption
10W (System)
Mechanical and Environment
Housing
Metal Case
Mounting
Rack Mount
Operating Temperature
0°C~50°C (32°F~122°F)
Storage Temperature
-20°C~70°C (-4°F~158°F)
Operating Humidity
10 to 95% RH (non-condensing)
Storage Humidity
5 to 95% RH (non-condensing)
Weight
1.17 kg (2.58 lb)
Dimension (WxHxD)
268 x 44 x 128 mm (10.6 x 1.7 x 5 in)
PHẦN CỨNG | |
Port | 8 x 10/100/1000BASE-T RJ45 Ports |
2 x 100FX/Gigabit SFP Slots | |
1 x RJ45 Console Port | |
Nguồn | Primary inputs:AC 100~240 50~60Hz, 15V DC Power Adapter |
Redundant inputs:12V Battery | |
LED Indicators | PWR, ALARM, POST, 1000, LNK/ACT |
Kích thước | 268 x 44 x 128mm (WxHxD) |
Trọng lượng | 1.17Kg |
PHẦN MỀM | |
Chuẩn tương thích | IEEE 802.3 10BASE-T |
IEEE 802.3u 100BASE-TX/FX | |
IEEE 802.3ab 1000BASE-T | |
IEEE 802.3z 1000BASE-SX/LX | |
IEEE 802.3ad Link Aggregation | |
IEEE 802.3x Flow Control | |
IEEE 802.1d STP | |
IEEE 802.1w RSTP | |
IEEE 802.1p CoS Prioritization | |
IEEE 802.1q VLAN Tagging | |
IEEE 802.3az Energy Efficient Ethernet | |
Configuration | Command Line Interface, Telnet, Web GUI, Syslog |
SNMP v1/v2c, Management VLAN, SNTP, Firmware | |
Upgradable, Configuration Upload/Download | |
VLAN | EEE 802.1Q Tag-based VLAN, Port Isolation |
Traffic Control | IGMP snooping, QoS, Rate Limitation, Storm Control |
Port Isolation, STP, RSTP, LLDP, LACP | |
Diagnostics | LED status, SNMP trap, E-mail alarm, SFP DDMI,Port mirroring RMON, Port Statistic. |
THÔNG SỐ KHÁC | |
Môi trường | Operating Temperature 0°C~50°C |
Storage Temperature -20°C~70°C | |
Operating Humidity 10 to 80% RH (non-condensing) | |
Storage Humidity 5 to 90% RH (non-condensing) |
