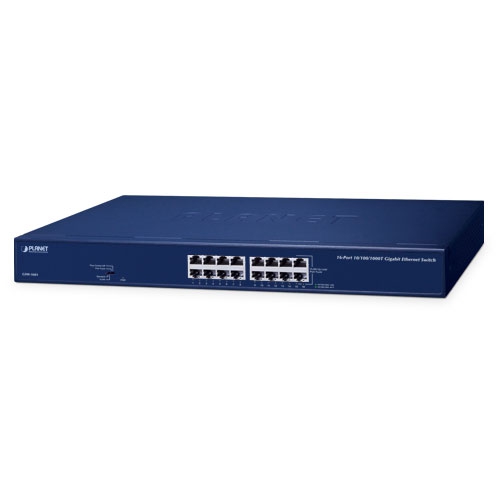

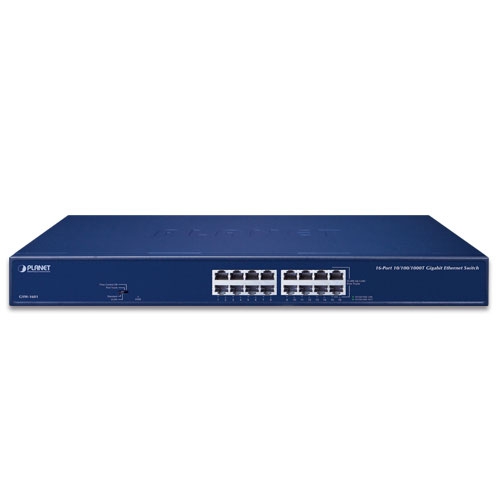

Thiết bị chuyển mạch Switch Planet GSW-1601

Cost-effective Gigabit Solution for Enterprise Backbone and Data Center Networking

PLANET GSW-1601 Gigabit Ethernet Switch provides 16 RJ45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the correct transmission speed and half/full duplex mode of the attached devices with its 16 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSW-1601 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.

Brand-new Hardware DIP Switch for Functional Operation Modes Selection

The new hardware version of the GSW-1601 offers “Standard”, “VLAN”, “Port Trunk” and “Flow Control Off” modes.

The GSW-1601 operates as a normal Gigabit Ethernet Switch in the "Standard" operation mode. The "VLAN" operation mode features port-based VLAN function that can help to prevent the connected clients’ multicast or broadcast storm from influencing each other.

In the "Port Trunk" operation mode, the GSW-1601 forces aggregated ports 15 and 16 to be a trunk group.

High Performance

The GSW-1601 provides a high-performance switch architecture that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 32Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.  Besides, the Flow Control function of the GSW-1601 enables routers and servers to directly connect to the Switch for fast and reliable data transfer.

All the RJ45 copper interfaces of the GSW-1601 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. It also supports standard for auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Excellent Traffic Transmission

The GSW-1601 supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity, which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm, the GSW-1601 recognizes up to 8K different MAC addresses. The high data throughput and 32Gbps internal switching fabric make it ideal for most Gigabit environments, especially when network is upgraded to a Gigabit environment.

Fanless Design

With its good ventilation design, the GSW-1601 is able to operate all along without a fan, thus reducing substantial power consumption and creating a noiseless environment. The GSW-1601 is definitely the best choice for any working environment without affecting its performance.

Physical Port

• 16 10/100/1000BASE-T Gigabit Ethernet ports
• Supports auto MDI/MDI-X function

Layer 2 Features

• Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards
• Features Store-and-Forward mode with wire-speed filtering and forwarding rates
• Integrated address look-up engine, supporting 8K absolute MAC addresses
• 9K jumbo packet support
• Power saving ability for Green networking
• IEEE 802.1Q VLAN packet transparency support
• IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
• Hardware-based 10/100BASE-TX, half/full duplex and 1000BASE-T full duplex mode, flow control and auto-negotiation
• Automatic address learning and address aging
• Supports CSMA/CD protocol

Hardware Features

• 100~240V AC, 0.15A, 50~60Hz universal power input
• DIP switch for standard/VLAN/Port Trunk/flow control off mode selection
• FCC, CE class A compliant
