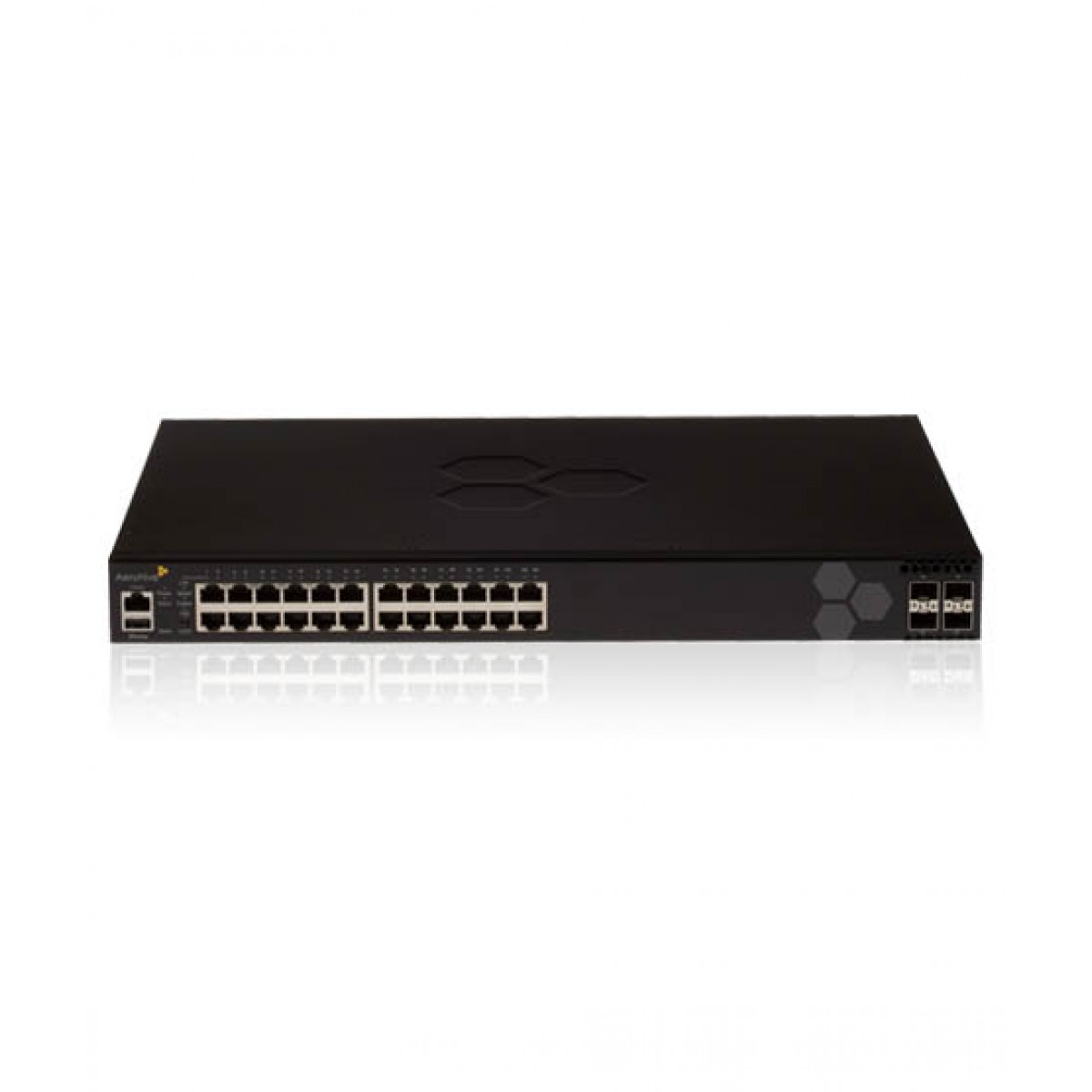

Thiết bị chuyển mạch Aerohive Switch SR2124P (24 port POE+)

The SR2124P is a 24-port Gigabit Ethernet access switch with 4 added 10 Gigabit SFP ports. All Ethernet ports support high-power PoE (Power over Ethernet+), and the entire device assists the feature-rich capabilities of HiveOS, including RADIUS, 802.1X security, and cloud-based management.

The SR2124P leverages Aerohive HiveOS cooperative control to provide powerful switching functionality that is in conjunction with the Wi-Fi infrastructure, including unified policy, management, and reporting. By integrating with the Aerohive Cloud Services Platform, the SR2124P can be brought online by simply sending the equipment to the install site and plugging it in. The SR2124P will automatically locate the HiveManager, either in Aerohive’s public cloud or on a customer premises, download total configuration, security, corporate policies, and instantly administer service for connected devices.

Interfaces
•28 dedicated Ethernet ports
- 24x 10/100/1000Mbps RJ45 ports
- 4x SFP/SFP+
•1 Type-A USB2.0 port backward compatible with USB1.1
•1 Reset button to reset (on press) and load factory
default settings (when pressed for more than 5
seconds)
•1 LEDs button to cycle Link/Speed/Duplex/PoE status
•1 RJ45 serial console port
•1 Redundant Power Supply connector (rear)
Power over Ethernet
•24 ports 802.3af/802.3at PoE/PoE+ with legacy support
•30 Watts max per port
•408 Watts total power budget
•PoE Prioritization and Reporting
Ethernet Switching
•16,000 MAC addresses
•Jumbo Frames (9600 bytes)
•QoS
•Line-rate switching
•IGMP Snooping
•Storm control
•Rate limiting
•Spanning Tree: STP, RSTP, MSTP
Environmental
•Operating: 0 to +40 degrees C
•Storage: -20 to +70 degrees C
•Humidity: 5% to 95% RH (non-condensing)
•Altitude: 3000m
•Low-Noise: Less than 48dBA at full power
- Temperature-controlled fan speed
MTBF
•220,000 hours at 25 degrees C
Power
•100-240 Volts, 6.5 Amps
Other Features
•Full Trusted Computing Group (TCG) Trusted Platform
Module (TPM)
Mounting
•Rack-mountable
•Desktop
