Giá: 5.600.000₫ 5.700.000₫ -2% (Giá đã bao gồm VAT)
8x Gigabit Ethernet Smart Switch with PoE-out, 4x SFP cages, 400MHz CPU, 128MB RAM, desktop case, RouterOS L5
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

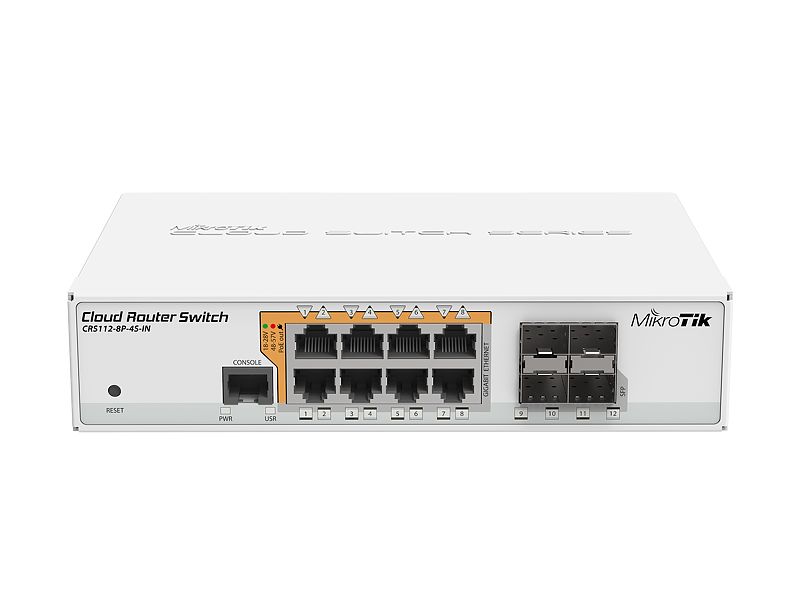

CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.

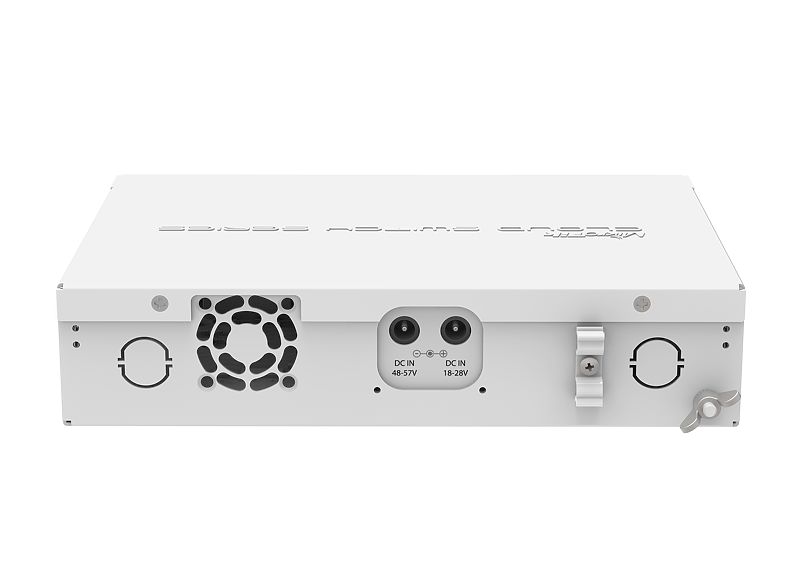

CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately - product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins
Details | |
---|---|
Product code | CRS112-8P-4S-IN |
Architecture | MIPSBE |
CPU | QCA8511 |
CPU core count | 1 |
CPU nominal frequency | 400 MHz |
Dimensions | 200 x 142 x 44 mm |
RouterOS license | 5 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -20°C to 60°C |
Suggested price | $179.00 |
Details | |
---|---|
Number of DC inputs | 2 (DC jack) |
DC jack input Voltage | 18-28 V / 48-57 V |
Max power consumption | 160 W |
Max power consumption without attachments | 10 W |
FAN count | Passive |
Details | |
---|---|
PoE-out ports | Ether1-Ether8 |
PoE out | 802.3af/at |
Max out per port output (input 18-30 V) | 1 A |
Max out per port output (input 30-57 V) | 450 mA |
Max total out (A) | 2.8A (18V-28V) & 1.4A (48V-57V) A |
Details | |
---|---|
10/100/1000 Ethernet ports | 8 |
Number of 1G Ethernet ports with PoE-out | 8 |
Details | |
---|---|
SFP ports | 4 |
Details | |
---|---|
Serial console port | RJ45 |
Details | |
---|---|
PCB temperature monitor | Yes |
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | IP20 |
CRS112-8P-4S-IN is an eight Gigabit RJ45 port PoE switch, that offers different power output options: autosensing 802.3af/at PoE/PoE+ and Passive PoE, and four SFP ports provide optical fiber connectivity options to support uplinks of up to 1 Gbps.
CRS112-8P-4S-IN is equipped with 12 independent switching ports. 28 V 3.4 A power supply is already included in the box. There is secondary DC jack on the back of the enclosure that supports 48-57 V power supply (not included, can be purchased separately - product codes 48POW (1.46A 70W) and 48V2A96W (2A 96W)). CRS112-8P-4S-IN can power 802.3af/at devices if 48-57 V DC input is used (unit will automatically detect and provide correct power to devices). Max current is 1 A per port if input voltage is 18-28 V, 450 mA if 48-57 V. Total limit is 2.8A@24V and 1.4A@48-57V. PoE-Out is passed over mode B 4,5 (+) and 7,8 (-) pins
Details | |
---|---|
Product code | CRS112-8P-4S-IN |
Architecture | MIPSBE |
CPU | QCA8511 |
CPU core count | 1 |
CPU nominal frequency | 400 MHz |
Dimensions | 200 x 142 x 44 mm |
RouterOS license | 5 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -20°C to 60°C |
Suggested price | $179.00 |
Details | |
---|---|
Number of DC inputs | 2 (DC jack) |
DC jack input Voltage | 18-28 V / 48-57 V |
Max power consumption | 160 W |
Max power consumption without attachments | 10 W |
FAN count | Passive |
Details | |
---|---|
PoE-out ports | Ether1-Ether8 |
PoE out | 802.3af/at |
Max out per port output (input 18-30 V) | 1 A |
Max out per port output (input 30-57 V) | 450 mA |
Max total out (A) | 2.8A (18V-28V) & 1.4A (48V-57V) A |
Details | |
---|---|
10/100/1000 Ethernet ports | 8 |
Number of 1G Ethernet ports with PoE-out | 8 |
Details | |
---|---|
SFP ports | 4 |
Details | |
---|---|
Serial console port | RJ45 |
Details | |
---|---|
PCB temperature monitor | Yes |
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | IP20 |
