Giá: 3.950.000₫ 4.000.000₫ -1% (Giá đã bao gồm VAT)
8x Gigabit Smart Switch, 1x SFP cage, LCD, 802.11b/g/n Dual Chain wireless, 600MHz CPU, 128MB RAM, Metal desktop case, RouterOS L5, supports 10-57V, 802.3af/at compliant
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

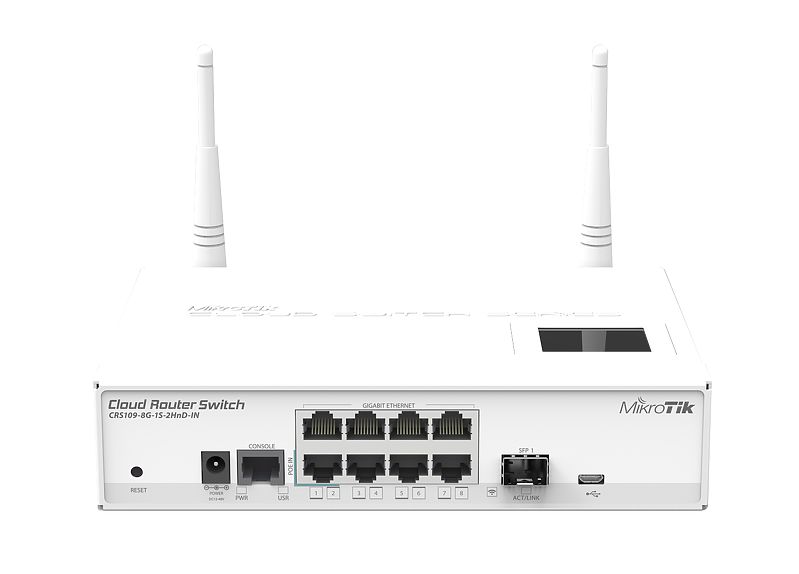

Cloud Router Switch 109-8G-1S-2HnD-IN is new "small size low cost" member of our CRS series. It comes with eight Gigabit Ethernet ports and high power 2.4GHz wireless. Product supports 10-57V and is 802.3af/at compliant!
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
Details | |
---|---|
Product code | CRS109-8G-1S-2HnD-IN |
Architecture | MIPSBE |
CPU | AR9344 |
CPU core count | 1 |
CPU nominal frequency | 600 MHz |
Dimensions | 200 x 142 x 44 mm |
RouterOS license | 5 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 65°C |
Suggested price | $149.00 |
Details | |
---|---|
802.3af support | yes |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 10-57 V |
Max power consumption | 13 W |
FAN count | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 10-57 V |
Details | |
---|---|
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 4 |
Wireless 2.4 GHz chip model | AR9344 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Details | |
---|---|
10/100/1000 Ethernet ports | 8 |
Details | |
---|---|
SFP DDMI | yes |
SFP ports | 1 |
Details | |
---|---|
Serial console port | RJ45 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | microUSB type AB |
Max USB current (A) | 1.5 |
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Details | |
---|---|
Certification | CE, FCC, EAC, ROHS |
IP | IP20 |
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
1MBit/s | 29 | -97 |
11MBit/s | 28 | -90 |
6MBit/s | 30 | -96 |
54MBit/s | 25 | -76 |
MCS0 | 30 | -96 |
MCS7 | 23 | -73 |
Cloud Router Switch 109-8G-1S-2HnD-IN is new "small size low cost" member of our CRS series. It comes with eight Gigabit Ethernet ports and high power 2.4GHz wireless. Product supports 10-57V and is 802.3af/at compliant!
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
Details | |
---|---|
Product code | CRS109-8G-1S-2HnD-IN |
Architecture | MIPSBE |
CPU | AR9344 |
CPU core count | 1 |
CPU nominal frequency | 600 MHz |
Dimensions | 200 x 142 x 44 mm |
RouterOS license | 5 |
Operating System | RouterOS |
Size of RAM | 128 MB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -40°C to 65°C |
Suggested price | $149.00 |
Details | |
---|---|
802.3af support | yes |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 10-57 V |
Max power consumption | 13 W |
FAN count | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 10-57 V |
Details | |
---|---|
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 4 |
Wireless 2.4 GHz chip model | AR9344 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Details | |
---|---|
10/100/1000 Ethernet ports | 8 |
Details | |
---|---|
SFP DDMI | yes |
SFP ports | 1 |
Details | |
---|---|
Serial console port | RJ45 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | microUSB type AB |
Max USB current (A) | 1.5 |
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Details | |
---|---|
Certification | CE, FCC, EAC, ROHS |
IP | IP20 |
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
1MBit/s | 29 | -97 |
11MBit/s | 28 | -90 |
6MBit/s | 30 | -96 |
54MBit/s | 25 | -76 |
MCS0 | 30 | -96 |
MCS7 | 23 | -73 |
