Trung Quốc
Thương hiệu:
Hikvision

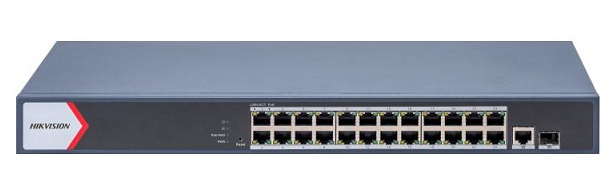

Smart Managed 24-Port Gigabit PoE Switch HIKVISION DS-3E1526P-EI
Hàng chính hãng
Giá:
Liên hệ
- Tình trạng
- Hàng chính hãng, có CO CQ đầy đủ
- Part Number
- Smart Managed 24-Port Gigabit PoE Switch HIKVISION
- Kho hàng
- Liên hệ
- Mua nhiều
- Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Vận chuyển
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
Smart Managed 24-Port Gigabit PoE Switch HIKVISION DS-3E1526P-EI
- 24 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port.
- Total PoE power budget 230W.
- Unified cloud management for security systems.
- Network topology at your fingertips.
- Remote troubleshooting.
- Visualized topology management.
- Up to 300m long-range PoE transmission.
- 6kV surge protection.
Đặc tính kỹ thuật
| Network parameters | |
| Port number | 24 × gigabit PoE ports, and 2 × gigabit fiber optical ports |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default); Extend mode |
| MAC address table | 8 K |
| Switching capacity | 52 Gbps |
| Packet forwarding rate | 36.688 Mpps |
| Internal cache | 4.1 Mbits |
| PoE power supply | |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ethernet cables 1/2/3/6 provide power supply. |
| PoE port | Ports 1 to 24 |
| Max. port power | 30 W |
| PoE power budget | 370 W |
| General | |
| Shell | Metal material |
| Weight | 2.975 kg |
| Dimension (L × H × D) | 440 mm × 221 mm × 44 mm |
| Operating temperature | -10°C to 55°C (14°F to 131°F) |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating humidity | 5% to 95% (no condensation) |
| Relative humidity | 5% to 95% (no condensation) |
| Power supply | 100 to 240 VAC, 50/60 Hz, Max. 6.5 A |
| Power source | 400 W |
| Max. power consumption | 400 W |
| Power consumption in idle | 30 W |
| Software Function | |
| Device maintenance | Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters, import and export configuration, time sync. |
| Port configuration | Support the configuration of port rate and slow control, and ports enabling. |
| Long range | Support up to 300 m transmission. |
| PoE watchdog | Ports 1 to 24: auto detect and restart the cameras that do not respond. |
| Port rate-limiting | Support rate-limiting for ingress and egress ports. |
| Storm control | Support the storm control of unknown unicast, multicast and broadcast. |
| Port mirroring | Support port mirroring function. |
| QoS | Support WRR and SP scheduling and port priority. |
| VLAN | Support 4094 VLANs. |
| STP | Support STP and RSTP. |
| SNMP | Support SNMPv1 and SNMPv2c, the node information for system and interfaces acquisition. |
| PoE | Support IEEE 802.3at/af power supply. |
- Bảo hành: 24 tháng.
Smart Managed 24-Port Gigabit PoE Switch HIKVISION DS-3E1526P-EI
- 24 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port.
- Total PoE power budget 230W.
- Unified cloud management for security systems.
- Network topology at your fingertips.
- Remote troubleshooting.
- Visualized topology management.
- Up to 300m long-range PoE transmission.
- 6kV surge protection.
Đặc tính kỹ thuật
| Network parameters | |
| Port number | 24 × gigabit PoE ports, and 2 × gigabit fiber optical ports |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default); Extend mode |
| MAC address table | 8 K |
| Switching capacity | 52 Gbps |
| Packet forwarding rate | 36.688 Mpps |
| Internal cache | 4.1 Mbits |
| PoE power supply | |
| PoE standard | IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ethernet cables 1/2/3/6 provide power supply. |
| PoE port | Ports 1 to 24 |
| Max. port power | 30 W |
| PoE power budget | 370 W |
| General | |
| Shell | Metal material |
| Weight | 2.975 kg |
| Dimension (L × H × D) | 440 mm × 221 mm × 44 mm |
| Operating temperature | -10°C to 55°C (14°F to 131°F) |
| Storage temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating humidity | 5% to 95% (no condensation) |
| Relative humidity | 5% to 95% (no condensation) |
| Power supply | 100 to 240 VAC, 50/60 Hz, Max. 6.5 A |
| Power source | 400 W |
| Max. power consumption | 400 W |
| Power consumption in idle | 30 W |
| Software Function | |
| Device maintenance | Support remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters, import and export configuration, time sync. |
| Port configuration | Support the configuration of port rate and slow control, and ports enabling. |
| Long range | Support up to 300 m transmission. |
| PoE watchdog | Ports 1 to 24: auto detect and restart the cameras that do not respond. |
| Port rate-limiting | Support rate-limiting for ingress and egress ports. |
| Storm control | Support the storm control of unknown unicast, multicast and broadcast. |
| Port mirroring | Support port mirroring function. |
| QoS | Support WRR and SP scheduling and port priority. |
| VLAN | Support 4094 VLANs. |
| STP | Support STP and RSTP. |
| SNMP | Support SNMPv1 and SNMPv2c, the node information for system and interfaces acquisition. |
| PoE | Support IEEE 802.3at/af power supply. |
- Bảo hành: 24 tháng.
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
