Giá: 1.265.000₫ 1.350.000₫ -6%

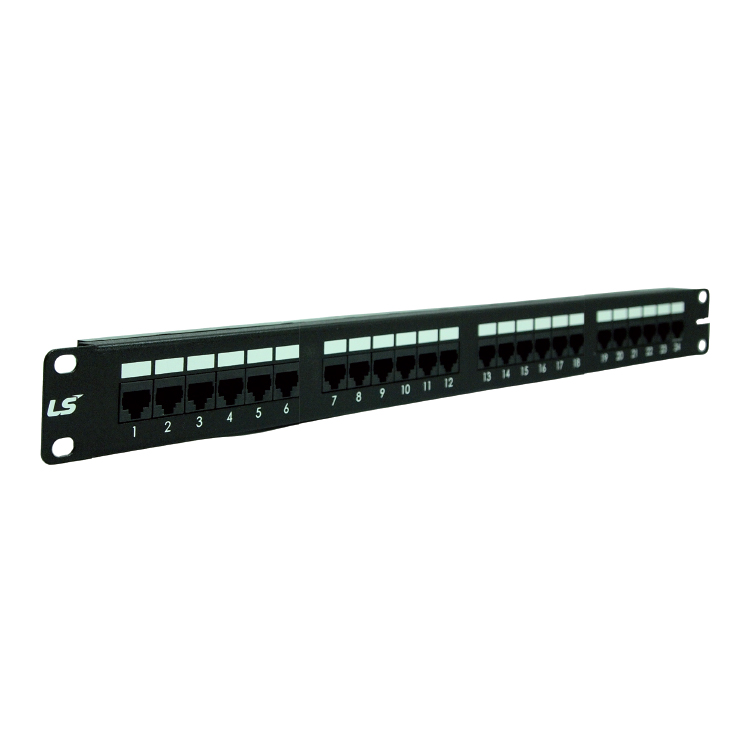

Bản đấu nối cáp UTP CAT5e,24 cổng,UL Listed và RoHS 24-Port Unshielded CAT5e Patch Panel,UL Listed & RoHS Compliant
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
· Meet Category 5e / Class D performance levels
· Architectural design and flexibility - Support max. 4 connection channels
· Easy cable routing and bundling through improved rear cable management
· Qualifies for the LS 25-Year Extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
- 24 ports Unshielded CAT.5e.
- Sử dụng trong đường kết nối cáp trục chính (Backbone Cabling), hệ thống dữ liệu hàng ngang (Horizontal Distribution).
- Sử dụng cho 4/16 Mbps Token Ring (IEEE 802.5), 10/100/1000 BASE-T (IEEE 802.3), 155 Mbps ATM, 100Mbps TP-PMD, ISDN, ADSL, ATM LAN 1.2G.
- Thiết bị tương thích: Rack 19 inch, T568A/T568B.
- Tuân thủ tiêu chuẩn: UL Listed, RoHS.
- Tiêu chuẩn: ANSI/TIA-568-C.2(Category 5e), RJ-45 of 47 CFR part 68, ISO/IEC 11801.
- Chất liệu: Vỏ nhựa chống cháy.
Đặc tính kỹ thuật
Part Number | LS-PP-UC5E-24P |
Electrical / Mechanical Characteristics | |
Current Rating | 1.5 A |
Contact Resistance | 20 mΩ |
Insertion Resistance | 500 MΩ |
DC Resistance | 0.1 Ω Max |
Voltage | 150 VAC Max |
Insertion Life | 750 Mating Cycles |
Plug Retention Force | 20 lbs (89N) |
Temperature | -40ºC ~ 68ºC |
Humidity | 10% ~ 90% RH |
IDC Accept | 22 ~ 26 AWG Solid Wire |
Materials | |
Housing | High Impact Flame Retardant Plastic, UL 94V-0 Rated |
Spring Wire | Phosphor Bronze Plated with 50, Micro-inch (1.27 microns) Thick Gold, Over 100 Micro-inch (2.54 microns), Thick Nickel Undercoat |
IDC Plastic | Polycarbonate or ABS, UL 94V-0 Rated |
IDC Contact | Phosphor Bronze Plated with 100, Micro-inch (2.54 microns) Minimum, Thick Tin |
Panel | Steel with Black Painting |
Approvals | |
Category | UL Listed, TIA/EIA-568-B.2 / ISO 11801 |
Meet | FCC CFR 47 Part 68 |
Wiring Scheme | T568A/T568B |
