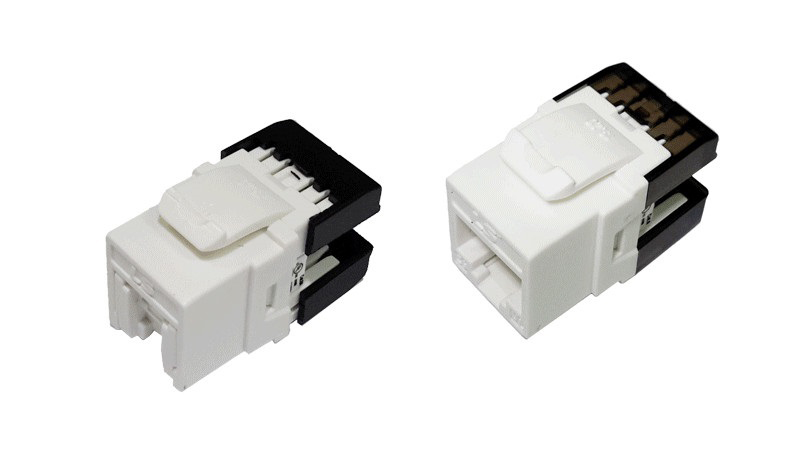

Modular Jack LS Shielded Cat5e UTP RIDC White (LS-MJ-SC5E-WH-RIDC)

Part Number: LS-MJ-SC5E-WH-RIDC.

180º Category 5e Shielded Modular Jack of RIDC with T568A/B Label, White Color.

Description

LS SimpleTM Category 5e modular jacks are designed and manufactured to meet today s and tomorrow s demanding international standards. They take into consideration the need for reliable and quick installations. The jack is individually terminated using Insulation Displacement Connectors (IDC) giving assurance of wire connection when using a punch down tool. User instructions and basic wiring layout for standard configuration are included. The LS SimpleTM Modular Jack comes with the ability to wire to a T568A or T568B configuration and fully complies with TIA/EIA-568-B.2 (Category 5e) and ISO/IEC 11801(Class D) component performances.

Application

- Horizontal Distribution & Backbone Cabling.

- 4/16 Mbps Token Ring (IEEE 802.5).

- 10/100/1000 BASE-T (IEEE 802.3).

- 155 Mbps ATM.

- 100Mbps TP-PMD.

- ISDN, ADSL.

- RoHS Compliant.

Specification

Part Number	LS-MJ-SC5E-WH-RIDC
Electrical / Mechanical Characteristics
Current Rating	1.5 A
DC Resistance	0.1 Ω Max
Voltage	150 VAC Max
Insertion Life	750 Mating Cycles
Plug Retention Force	20 lbs (89N)
Temperature	-40ºC ~ 68ºC
Humidity	10% ~ 90% RH
IDC Accept	22 ~ 26 AWG Solid Wire
Dimension	0.76 x 0.57 x 1.3 inch
Materials
Housing	High Impact Flame Retardant Plastic, UL 94V-0 Rated
Spring Wire	Phosphor Bronze Plated with 50, Micro-inch (1.27 microns) Thick Gold, Over 80 Micro-inch (2.54 microns), Thick Nickel Undercoat
IDC Plastic	Polycarbonate or ABS, UL 94V-0 Rated
IDC Contact	Phosphor Bronze Plated with 100, Micro-inch (2.54 microns) Thick Tin
Shield	Copper Zinc Alloy, Pre-Plated with Bright Nickel
Approvals
Category	ANSI/TIA-568-C.2 Category 5e, ISO/IEC 11801 Class D
Wiring Scheme	T568A/T568B
Meet	FCC CFR 47 Parts 68

- Sản xuất tại Đài Loan.
