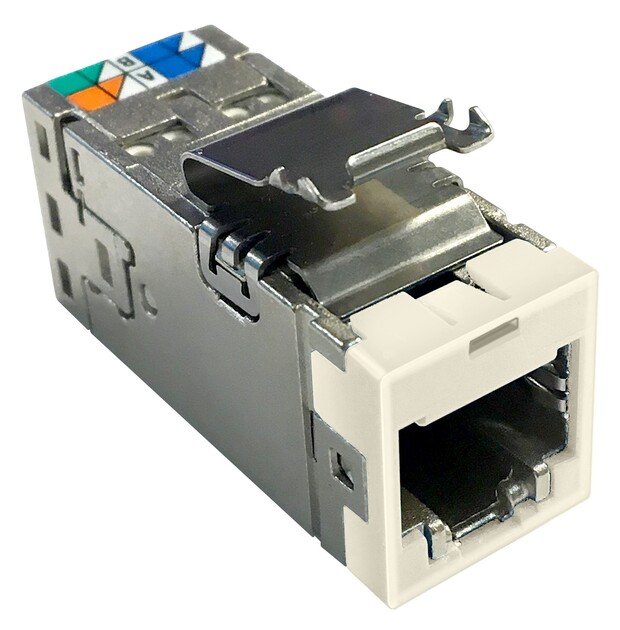

Modular Jack COMMSCOPE CAT6A S/FTP (P/N:2153449-1)

Hàng chính hãng

Giá: 203.500 ₫ 210.000 ₫ -3%

Tình trạng: Hàng chính hãng - New 100%
Part Number: 2153449-1
Kho hàng: Còn hàng
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0907591863 - 0396827937 - 0901188385 để có giá tốt.
Mô tả: AMP-TWIST SLX Series Modular Jack, category 6A, shielded , 4 Pair, without dust cover, almond

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Review Xem tại đây

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Modular Jack COMMSCOPE CAT6A S/FTP (2153449-1)

Part Number: 2153449-1

- Cable Type: Shielded

- Color: Almond

- Conductor Type: Solid / Stranded

- Integrated Dust Cover Type: None

- Mounting: SL Series faceplates and panels

- Mounting Note: Color matches with SL-style Almond Faceplates and Surface Mount Boxes

- Outlet Type: Standard

- Termination Punchdowns, minimum: 5 times

- Termination Tool: SL Termination tool

- Termination Type: IDC

- Transmission Standards: ANSI/TIA-568-C.2 | ISO/IEC 11801 Class EA

- Wiring: T568A / T568B

- Contact Plating Thickness: 1.27 µm

- Compatible Conductor Gauge, solid: 26~22 AWG

- Compatible Conductor Gauge, stranded: 26~24 AWG

- Contact Base Material : Beryllium copper

- Contact Plating Material: Gold

- Material Type: Polycarbonate / Zamak

- Operating Temperature: -10°C to +60°C

Product Classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America
Portfolio	NETCONNECT®
Product Type	Modular jack
Product Series	SLX Series

General Specifications

ANSI/TIA Category	6A
Cable Type	Shielded
Color	Almond
Conductor Type	Solid \| Stranded
Integrated Dust Cover Type	None
Mounting	SL Series faceplates and panels
Mounting Note	Color matches with SL-style Almond Faceplates and Surface Mount Boxes
Outlet Type	Standard
Termination Punchdowns, minimum	5 times
Termination Tool	SL Termination tool
Termination Type	IDC
Transmission Standards	ANSI/TIA-568-C.2 \| ISO/IEC 11801 Class EA
Wiring	T568A \| T568B

Dimensions

Panel Cutout, recommended	14.78 x 20.07 mm (0.58 x 0.79 in)
Panel Thickness, recommended	1.6 mm \| 0.063 in
Height	16.13 mm \| 0.635 in
Width	14.44 mm \| 0.569 in
Depth	36.8 mm \| 1.449 in
Compatible Cable Diameter, maximum	8.5 mm \| 0.335 in
Compatible Insulated Conductor Diameter, maximum	1.6 mm \| 0.063 in
Contact Plating Thickness	1.27 µm
Compatible Conductor Gauge, solid	26–22 AWG
Compatible Conductor Gauge, stranded	26–24 AWG

Electrical Specifications

Remote Powering

Fully supports the safe delivery of power over LAN cabling described by IEEE 802.3bt (Type 4) and complies with the unmating under electrical load requirements prescribed by IEC 60512-99-002

Material Specifications

Contact Base Material	Beryllium copper
Contact Plating Material	Gold
Material Type	Polycarbonate \| Zamak

Mechanical Specifications

Plug Insertion Life, minimum

750 times

Environmental Specifications

Operating Temperature	-10 °C to +60 °C (+14 °F to +140 °F)
Flammability Rating	UL 94 V-0

Packaging and Weights

Packaging Material	Standard
Packaging quantity	24
Packaging Type	Bag \| Box

Regulatory Compliance/Certifications

Agency	Classification
RCM	Compliant to electrical safety & telecommunications requirements
ROHS	Compliant/Exempted
CHINA-ROHS	Above maximum concentration value
