Giá: 20.570.000₫ 22.000.000₫ -7% (Giá đã bao gồm VAT)
20.570.000₫
Giá đã được giảm trực tiếp vào giá bán. Áp dụng giá cho đến khi có thông báo mới
24 RJ-45 autosensing 10/100/1000 PoE ports, 4 dual-personality ports; RJ-45 10/100/1000 or SFP slot
24 RJ-45 autosensing 10/100/1000 PoE ports, 4 dual-personality ports; RJ-45 10/100/1000 or SFP slot
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

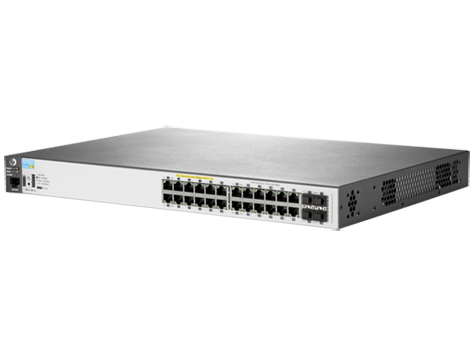

HP 2530-24G-PoE Switch J9773A
- Fixed Port Layer-2 Managed Ethernet Switch.
- 24 RJ-45 autosensing 10/100/1000 PoE ports, 4 dual-personality ports; RJ-45 10/100/1000 or SFP slot
Features
Quality of Service (QoS)
- Traffic prioritization (IEEE 802.1p): allows real-time traffic classification with support for eight priority levels mapped to either two or four queues; uses weighted deficit round robin (WDRR) or strict priority (SP)
- Simplified QoS configuration: Port-based: prioritizes traffic by specifying a port and priority level. VLAN-based: prioritizes traffic by specifying a VLAN and priority level.
- Class of Service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
- Rate limiting: sets per-port ingress enforced maximums for all ingressed traffic or for broadcast, multicast, or unknown destination traffic
- Layer 4 prioritization: enables prioritization based on TCP/UDP port numbers
I/O ports and slots |
24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
|
4 fixed Gigabit Ethernet SFP ports |
||
1 dual-personality (RJ-45 or USB micro-B) serial console port |
||
Physical characteristics |
Dimensions |
17.44(w) x 13.00(d) x 1.75(h) in (44.3 x 33.02 x 4.45 cm) (1U height) |
Weight |
8.7 lb (3.95 kg) |
|
Memory and processor |
Processor |
ARM9E @ 800 MHz, 128 MB flash, 256 MB DDR3 DIMM; packet buffer size: 1.5 MB dynamically allocated |
Mounting |
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting |
|
Performance |
IPv6 Ready Certified |
|
100 Mb Latency |
< 7.4 µs (LIFO 64-byte packets) |
|
1000 Mb Latency |
< 2.3 µs (LIFO 64-byte packets) |
|
Throughput |
up to 41.6 million pps (64-byte packets) |
|
Switching capacity |
56 Gbps |
|
MAC address table size |
16000 entries |
|
Environment |
Operating temperature |
32°F to 113°F (0°C to 45°C) |
Operating relative humidity |
15% to 95% @ 104°F (40°C), noncondensing |
|
Non-operating/ |
-40°F to 158°F (-40°C to 70°C) |
|
Storage temperature |
||
Non-operating/Storage relative humidity |
15% to 90% @ 149°F (65°C), noncondensing |
|
Altitude |
up to 10,000 ft (3 km) |
|
Acoustic |
Power: 43.9 dB, Pressure: 39.6 dB |
|
Electrical characteristics |
Frequency |
50/60 Hz |
Maximum heat dissipation |
135 BTU/hr (142.42 kJ/hr), (switch only: 135 BTU/hr; combined switch + max. PoE devices: 843 BTU/hr) |
|
AC voltage |
100-127/200-240 VAC |
|
Current |
3.2/1.6 A |
|
Maximum power rating |
247 W |
|
Idle power |
25.2 W |
|
PoE power |
195 W |
|
Safety |
UL 60950-1; CAN/CSA 22.2 No. 60950-1; EN 60825; IEC 60950-1; EN 60950-1 |
|
Emissions |
FCC Class A; EN 55022/CISPR-22 Class A; VCCI Class A |
|
Immunity |
Generic |
EN 55024, CISPR 24 |
EN |
EN 55024, CISPR 24 |
|
ESD |
IEC 61000-4-2 |
|
Radiated |
IEC 61000-4-3 |
|
EFT/Burst |
IEC 61000-4-4 |
|
Surge |
IEC 61000-4-5 |
|
Conducted |
IEC 61000-4-6 |
|
Power frequency magnetic field |
IEC 61000-4-8 |
|
Voltage dips and interruptions |
IEC 61000-4-11 |
|
Harmonics |
EN 61000-3-2, IEC 61000-3-2 |
|
Flicker |
EN 61000-3-3, IEC 61000-3-3 |
|
Management |
IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C or Micro USB); |
|
IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB |
||
Notes |
IEEE 802.3az applies to Gigabit models only; IEEE 802.3at and IEEE 802.3af apply to PoE+ models only. When using SFPs with this product, SFPs with revision 'B' or later (product number ends with the letter 'B' or later, e.g., J4858B, J4859C) are required. |
