Trung Quốc Thương hiệu: Hikvision

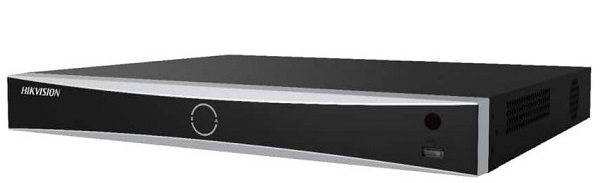

Đầu ghi hình camera IP 16 kênh HIKVISION DS-7616NXI-K2/16P

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Đầu ghi hình camera IP 16 kênh HIKVISION DS-7616NX
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Đầu ghi hình camera IP 16 kênh HIKVISION DS-7616NXI-K2/16P

- Hỗ trợ 16 kênh IP camera đầu vào, plug&play với 16 giao diện Power-Over-Ethernet (PoE).

- Chuẩn nén video: H.265+/H.265/H.264+/H.264.

- Tương thích với tín hiệu ngõ ra: 1-ch HDMI, 1-ch VGA.

- Hỗ trợ 2 khe cắm ổ cứng SATA (dung lượng 10TB mỗi ổ).

- Cổng Alarm: 4 In/1 Out.

- Face picture comparison: 4 kênh (khi dùng camera face capture).

- Hỗ trợ tìm kiếm bằng khuôn mặt.

- Thư viện ảnh khuôn mặt: lên đến 16 thư viện với 20,000 ảnh (mỗi ảnh ≤ 4MB, tổng dung lượng ≤ 1 GB).

Thông số kỹ thuật

Intelligent Analytics
AI by Device Facial recognition, perimeter protection, motion detection 2.0
AI by Camera Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
Facial Detection and Analytics Face picture comparison, human face capture, face picture search
Face Picture Library Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection and Analytics 1-ch, 8 MP
Face Picture Comparison 4-ch
Motion Detection 2.0
By Device All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By Camera All channels
Perimeter Protection
By Device 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By Camera All channels
Video and Audio
IP Video Input 16-ch
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 160 Mbps
HDMI Output 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode HDMI/VGA independent output
Audio Output 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Two-Way Audio 1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding Format H.265/H.265+/H.264+/H.264
Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 16-ch
Decoding Capability AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
Remote Connection 128
API ONVIF (profile S/G); SDK; ISAPI
Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 200 W
Standard IEEE 802.3af/at
Auxiliary Interface
SATA 2 SATA interfaces
Capacity Up to 10 TB capacity for each HDD
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out 4/1
General
GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 15 W (without HDD and PoE off)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 385 mm × 315 mm × 52 mm
Weight ≤ 3 kg (without HDD, 6.6 lb.
Certification
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained Certification CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

- Bảo hành: 24 tháng.

Đầu ghi hình camera IP 16 kênh HIKVISION DS-7616NXI-K2/16P

- Hỗ trợ 16 kênh IP camera đầu vào, plug&play với 16 giao diện Power-Over-Ethernet (PoE).

- Chuẩn nén video: H.265+/H.265/H.264+/H.264.

- Tương thích với tín hiệu ngõ ra: 1-ch HDMI, 1-ch VGA.

- Hỗ trợ 2 khe cắm ổ cứng SATA (dung lượng 10TB mỗi ổ).

- Cổng Alarm: 4 In/1 Out.

- Face picture comparison: 4 kênh (khi dùng camera face capture).

- Hỗ trợ tìm kiếm bằng khuôn mặt.

- Thư viện ảnh khuôn mặt: lên đến 16 thư viện với 20,000 ảnh (mỗi ảnh ≤ 4MB, tổng dung lượng ≤ 1 GB).

Thông số kỹ thuật

Intelligent Analytics
AI by Device Facial recognition, perimeter protection, motion detection 2.0
AI by Camera Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA
Facial Recognition
Facial Detection and Analytics Face picture comparison, human face capture, face picture search
Face Picture Library Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
Facial Detection and Analytics 1-ch, 8 MP
Face Picture Comparison 4-ch
Motion Detection 2.0
By Device All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By Camera All channels
Perimeter Protection
By Device 2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
By Camera All channels
Video and Audio
IP Video Input 16-ch
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 160 Mbps
HDMI Output 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode HDMI/VGA independent output
Audio Output 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Two-Way Audio 1-ch, RCA (Linear, 1 KΩ)
Decoding
Decoding Format H.265/H.265+/H.264+/H.264
Recording Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 16-ch
Decoding Capability AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC
Network
Remote Connection 128
API ONVIF (profile S/G); SDK; ISAPI
Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ≤ 200 W
Standard IEEE 802.3af/at
Auxiliary Interface
SATA 2 SATA interfaces
Capacity Up to 10 TB capacity for each HDD
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
Alarm In/Out 4/1
General
GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 15 W (without HDD and PoE off)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Dimension (W × D × H) 385 mm × 315 mm × 52 mm
Weight ≤ 3 kg (without HDD, 6.6 lb.
Certification
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Obtained Certification CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

- Bảo hành: 24 tháng.
