Phatsongwifi
Trung Quốc Thương hiệu: Hikvision

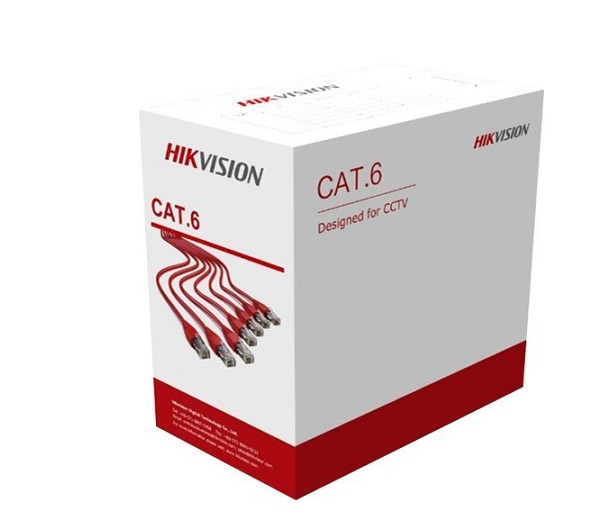

Cáp mạng CAT6 U/UTP HIKVISION DS-1LN6U-G

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Cáp mạng CAT6 U/UTP HIKVISION DS-1LN6U-G
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Cáp mạng CAT6 U/UTP HIKVISION DS-1LN6U-G

- U/UTP Cat6 PVC 23 AWG Cable.

- Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801.

- Compliant with RoHS 2.0.

- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.

- Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.

- Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).

- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.

Thông số kỹ thuật



Model  DS-1LN6U-G
Category Cat.6
Sheath printing HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
Reference standard ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
Fire resistance No
Conductor - Material: Solid-Bare Copper (99.95%)
- Diameter: 0.55 ± 0.005 mm, 23 AWG
Insulation - Material: HDPE
- Diameter: 0.98 ± 0.05 mm
Sheath - Thickness: 0.50 ± 0.10 mm
- Diameter: 6.00 ± 0.30 mm
- Material: PVC
- Color: Grey
Rip-cord Yes
Separator Yes
Sheath physical properties - Before aging:
   + Tensile strength ≥ 13.5 Mpa
   + Elongation ≥ 150%
- Aging period: 100°C × 24h × 10d
- After aging:
   + Tensile strength ≥ 12.5 Mpa
   + Elongation ≥ 125%
- Cold bend: -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
Electrical Characteristics (20°C)
1.0-250.0 MHz impedance 100 ± 15 Ω @ ≤ 100 MHz
100 ± 25 Ω @100-250 MHz
1.0-250.0 MHz delay skew ≤ 45 ns/100 m
DC resistance ≤ 9.38 Ω/100 m
DC conductor resistance unbalance ≤ 5.0%
Package dimension 400 mm (W) × 400 mm (H) × 240 mm (D) (15.75' × 15.75' × 9.45')
Weight 12.3 ± 0.5kg
Cable length (305 ± 1.5) m
Ambient temperature -20°C to 75°C (-4°F to 167°F)
Operating voltage 60 V

Cáp mạng CAT6 U/UTP HIKVISION DS-1LN6U-G

- U/UTP Cat6 PVC 23 AWG Cable.

- Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801.

- Compliant with RoHS 2.0.

- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.

- Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.

- Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).

- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.

Thông số kỹ thuật



Model  DS-1LN6U-G
Category Cat.6
Sheath printing HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
Reference standard ISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
Fire resistance No
Conductor - Material: Solid-Bare Copper (99.95%)
- Diameter: 0.55 ± 0.005 mm, 23 AWG
Insulation - Material: HDPE
- Diameter: 0.98 ± 0.05 mm
Sheath - Thickness: 0.50 ± 0.10 mm
- Diameter: 6.00 ± 0.30 mm
- Material: PVC
- Color: Grey
Rip-cord Yes
Separator Yes
Sheath physical properties - Before aging:
   + Tensile strength ≥ 13.5 Mpa
   + Elongation ≥ 150%
- Aging period: 100°C × 24h × 10d
- After aging:
   + Tensile strength ≥ 12.5 Mpa
   + Elongation ≥ 125%
- Cold bend: -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
Electrical Characteristics (20°C)
1.0-250.0 MHz impedance 100 ± 15 Ω @ ≤ 100 MHz
100 ± 25 Ω @100-250 MHz
1.0-250.0 MHz delay skew ≤ 45 ns/100 m
DC resistance ≤ 9.38 Ω/100 m
DC conductor resistance unbalance ≤ 5.0%
Package dimension 400 mm (W) × 400 mm (H) × 240 mm (D) (15.75' × 15.75' × 9.45')
Weight 12.3 ± 0.5kg
Cable length (305 ± 1.5) m
Ambient temperature -20°C to 75°C (-4°F to 167°F)
Operating voltage 60 V

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
