Trung Quốc Thương hiệu: Hikvision

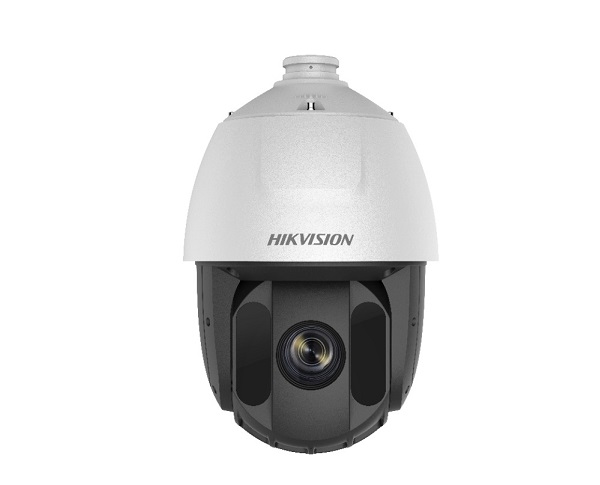

Camera IP Speed Dome hồng ngoại 4.0 Megapixel HIKVISION DS-2DE5425IW-AE(S5)

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Speed Dome hồng ngoại 4.0 Megapixel HIKV
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Speed Dome hồng ngoại 4.0 Megapixel HIKVISION DS-2DE5425IW-AE(S5)

- Camera IP Speed Dome 5-inch 4MP 25X Powered by DarkFighter.

- Hỗ trợ các chức năng báo động thông minh dựa trên thuật toán AI nhận dạng người và phương tiện.

- Hỗ trợ chụp ảnh khuôn mặt. Lên đến 5 khuôn mặt cùng 1 thời điểm.

- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.

- Độ phân giải: 2560× 1440@30fps.

- Chuẩn nén hình ảnh: H.265+/H.265.

- Độ nhạy sáng tối thiểu: Color: 0.005Lux @ (F1.6, AGC ON), B/W: 0.001Lux @(F1.6, AGC ON), 0 Lux with IR.

- Tầm quan sát hồng ngoại: 150 mét.

- Zoom quang: 25x.

- Zoom số: 16x.

- Hỗ trợ các tính năng: WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus.

- Hỗ trợ cổng Alarm: 2 in/ 1 out.

- Hỗ trợ cổng Audio: 1 in/ 1 out.

- Nguồn điện: 24VAC & Hi-PoE.

Đặc tính kỹ thuật

Model DS-2DE5425IW-AE(S5)
Camera
Image Sensor 1/2.8 inch Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30000s
Slow Shutter Yes
Focus Semi-auto, manual, auto
Day & Night ICR
Day/Night Switch day, night, auto, scheduled-switch
BLC Yes
WDR 120 dB WDR
HLC Yes
3D-DNR Yes
Defog Yes
EIS Yes
Regional Exposure Yes
Regional Focus Yes
Image Settings saturation, brightness, contrast, sharpness
White Balance Auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Digital Zoom 16x
Optical Zoom 25x
Privacy Mask up to 24 masks, polygon region, mosaic mask, mask color configurable
SNR >52dB
Lens
Focal Length 4.8 mm to 120 mm, 25x Optical
Zoom Speed approx. 3.6 s
FOV 57.6° to 2.5° (Wide-Tele)
Aperture F1.6
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed configurable from 0.1° to 120°/s; preset speed: 120°/s
Tilt Speed configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoom Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory Yes
Park Action preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Video
Max. Resolution 2560 × 1440
Stream Type main stream, sub-stream, third stream
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264+ Yes
H.265+ Yes
SVC Yes
ROI dynamic face tracking, fixed region, main stream, sub-stream and third stream respectively support eight fixed areas
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Environment Noise Filtering Yes
Smart Features
Face Capture Yes
Basic Event audio exception, motion detection, video tampering alarm, exception
Smart Event intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Smart Tracking manual tracking, event tracking, auto-tracking
Smart Record ANR, Dual-VCA
Alarm Linkage preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, smart tracking
Network
Network Storage NAS (NFS, SMB/ CIFS), ANR
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ISAPI, Hikvision SDK, Hik-Connect, ONVIF (Profile S, Profile G, Profile T), ISUP
Simultaneous Live View 20
User/Host 32
Smooth Streaming Yes
Security Measures Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Client iVMS-4200, Hik-Connect
Web Browser IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
Interface
Communication Interface RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm Input 2
Alarm Output 1
Audio Input 1
Audio Output 1 audio output, line level, impedance: 600 Ω
Supplement Light
IR Distance 150m
General
Power 24 VAC, Hi-PoE
Power Consumption and Current Max. 30 W, including max. 10 W for IR
Operating Conditions -30°C to 65°C (-22°F to 149°F); humidity lower than 90%RH
Reset Yes
Material ADC 12, PC, PC+10% GF
Protection IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient
Dimensions Φ 208 mm × 345 mm
Weight Approx. 3.3 kg

- Bảo hành: 24 tháng.



Camera IP Speed Dome hồng ngoại 4.0 Megapixel HIKVISION DS-2DE5425IW-AE(S5)

- Camera IP Speed Dome 5-inch 4MP 25X Powered by DarkFighter.

- Hỗ trợ các chức năng báo động thông minh dựa trên thuật toán AI nhận dạng người và phương tiện.

- Hỗ trợ chụp ảnh khuôn mặt. Lên đến 5 khuôn mặt cùng 1 thời điểm.

- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.

- Độ phân giải: 2560× 1440@30fps.

- Chuẩn nén hình ảnh: H.265+/H.265.

- Độ nhạy sáng tối thiểu: Color: 0.005Lux @ (F1.6, AGC ON), B/W: 0.001Lux @(F1.6, AGC ON), 0 Lux with IR.

- Tầm quan sát hồng ngoại: 150 mét.

- Zoom quang: 25x.

- Zoom số: 16x.

- Hỗ trợ các tính năng: WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional Focus, Rapid Focus.

- Hỗ trợ cổng Alarm: 2 in/ 1 out.

- Hỗ trợ cổng Audio: 1 in/ 1 out.

- Nguồn điện: 24VAC & Hi-PoE.

Đặc tính kỹ thuật

Model DS-2DE5425IW-AE(S5)
Camera
Image Sensor 1/2.8 inch Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30000s
Slow Shutter Yes
Focus Semi-auto, manual, auto
Day & Night ICR
Day/Night Switch day, night, auto, scheduled-switch
BLC Yes
WDR 120 dB WDR
HLC Yes
3D-DNR Yes
Defog Yes
EIS Yes
Regional Exposure Yes
Regional Focus Yes
Image Settings saturation, brightness, contrast, sharpness
White Balance Auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Digital Zoom 16x
Optical Zoom 25x
Privacy Mask up to 24 masks, polygon region, mosaic mask, mask color configurable
SNR >52dB
Lens
Focal Length 4.8 mm to 120 mm, 25x Optical
Zoom Speed approx. 3.6 s
FOV 57.6° to 2.5° (Wide-Tele)
Aperture F1.6
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed configurable from 0.1° to 120°/s; preset speed: 120°/s
Tilt Speed configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoom Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory Yes
Park Action preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Video
Max. Resolution 2560 × 1440
Stream Type main stream, sub-stream, third stream
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264+ Yes
H.265+ Yes
SVC Yes
ROI dynamic face tracking, fixed region, main stream, sub-stream and third stream respectively support eight fixed areas
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Environment Noise Filtering Yes
Smart Features
Face Capture Yes
Basic Event audio exception, motion detection, video tampering alarm, exception
Smart Event intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Smart Tracking manual tracking, event tracking, auto-tracking
Smart Record ANR, Dual-VCA
Alarm Linkage preset, patrol scan, pattern scan, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, smart tracking
Network
Network Storage NAS (NFS, SMB/ CIFS), ANR
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ISAPI, Hikvision SDK, Hik-Connect, ONVIF (Profile S, Profile G, Profile T), ISUP
Simultaneous Live View 20
User/Host 32
Smooth Streaming Yes
Security Measures Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Client iVMS-4200, Hik-Connect
Web Browser IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
Interface
Communication Interface RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm Input 2
Alarm Output 1
Audio Input 1
Audio Output 1 audio output, line level, impedance: 600 Ω
Supplement Light
IR Distance 150m
General
Power 24 VAC, Hi-PoE
Power Consumption and Current Max. 30 W, including max. 10 W for IR
Operating Conditions -30°C to 65°C (-22°F to 149°F); humidity lower than 90%RH
Reset Yes
Material ADC 12, PC, PC+10% GF
Protection IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient
Dimensions Φ 208 mm × 345 mm
Weight Approx. 3.3 kg

- Bảo hành: 24 tháng.
