Phatsongwifi
Trung Quốc Thương hiệu: Hikvision

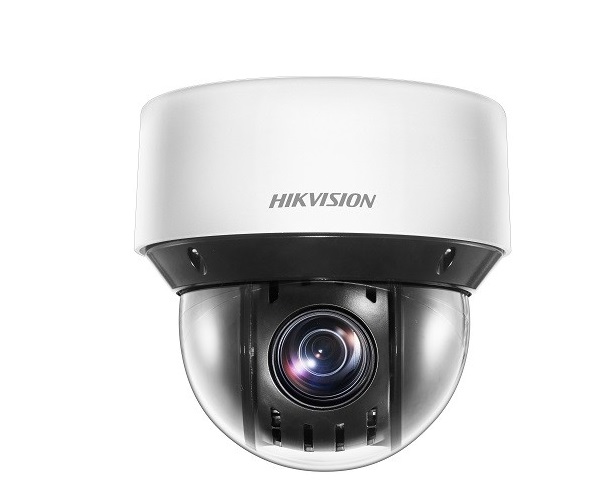

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2DE4A225IW-DE(S6)

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Speed Dome hồng ngoại 2.0 Megapixel HIKV
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2DE4A225IW-DE(S6)

- HIKVISION DS-2DE4A225IW-DE(S6) là dòng camera IP speed dome hồng ngoại 2.0 Megapixel.

- Cảm biến hình ảnh: 1/2.8 inch Progressive scan CMOS.

- Độ phân giải: 2.0 Megapixel.

- Độ nhạy sáng: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR.

- Hỗ trợ chuẩn nén hình ảnh: H.265+/H.265.

- Tầm quan sát hồng ngoại: Lên đến 50 mét.

- Zoom quang: 25×.

- Zoom kỹ thuật số: 16×.

- Chức năng lọc nhiễu kỹ thuật số 3D DNR (Dynamic Noise Reduction).

- Chức năng chống ngược sáng 120dB Digital WDR (Wide Dynamic Range).

- Chức năng bù ngược sáng BLC.

- Hỗ trợ thẻ nhớ lên đến 256GB.

- Hỗ trợ 1 đầu vào và 1 đầu ra audio.

- Hỗ trợ 2 đầu vào và 2 đầu ra alarm.

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Nguồn điện: 12VDC,  PoE (802.3at).

Đặc tính kỹ thuật

Camera Module
Image Sensor 1/2.8 inch Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 25x optical, 16x digital
Slow Shutter Yes
Lens
Focal Length 4.8 to 120 mm
FOV Horizontal FOV 54.9° to 2.7°, vertical FOV 31.5° to 1.5°, diagonal FOV 62.3° to 3.1°
Focus Auto, semi-auto, manual
Aperture Max. F1.6
Zoom Speed Approx. 3.4 s
Illuminator
Supplement Light Type IR
Supplement Light Range IR Distance: up to 50 m
Smart Supplement Light Yes
IR Wavelength 850 nm
PTZ
Movement Range (Pan) 0° to 360°
Movement Range (Tilt) -5° to 90°
Pan Speed Pan speed: configurable from 0.1° to 300°/s; preset speed: 350°/s
Tilt Speed Tilt speed: configurable from 0.1° to 160°/s, preset speed 200°/s
Proportional Zoom Yes
Presets 300
Preset Freezing Yes
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust
Power-off Memory Yes
Video
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
Audio Sampling Rate AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32kHz, 64 kHz
Environment Noise Filtering Yes
Network
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Version 18.12), Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users; 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE 10-11, Chrome 57+, Firefox 52+, Safari 11+
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR >52 dB
Defog Digital defog
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Alarm 2 inputs, 2 outputs
Reset Yes
Event
Basic Event Motion detection, video tampering alarm, exception, alarm input and output
Smart Event Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking Manual tracking, auto-tracking
General
Power 12 VDC, Max. 18 W; PoE (802.3at)
Dimension Ø 169 mm × 161 mm (Ø 6.65' × 6.34')
Weight Approx. 2.45 kg (5.40 lb.)
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
General Function Mirror, password protection
Approval
Protection IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

- Bảo hành: 24 tháng.

Camera IP Speed Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2DE4A225IW-DE(S6)

- HIKVISION DS-2DE4A225IW-DE(S6) là dòng camera IP speed dome hồng ngoại 2.0 Megapixel.

- Cảm biến hình ảnh: 1/2.8 inch Progressive scan CMOS.

- Độ phân giải: 2.0 Megapixel.

- Độ nhạy sáng: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR.

- Hỗ trợ chuẩn nén hình ảnh: H.265+/H.265.

- Tầm quan sát hồng ngoại: Lên đến 50 mét.

- Zoom quang: 25×.

- Zoom kỹ thuật số: 16×.

- Chức năng lọc nhiễu kỹ thuật số 3D DNR (Dynamic Noise Reduction).

- Chức năng chống ngược sáng 120dB Digital WDR (Wide Dynamic Range).

- Chức năng bù ngược sáng BLC.

- Hỗ trợ thẻ nhớ lên đến 256GB.

- Hỗ trợ 1 đầu vào và 1 đầu ra audio.

- Hỗ trợ 2 đầu vào và 2 đầu ra alarm.

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Nguồn điện: 12VDC,  PoE (802.3at).

Đặc tính kỹ thuật

Camera Module
Image Sensor 1/2.8 inch Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 25x optical, 16x digital
Slow Shutter Yes
Lens
Focal Length 4.8 to 120 mm
FOV Horizontal FOV 54.9° to 2.7°, vertical FOV 31.5° to 1.5°, diagonal FOV 62.3° to 3.1°
Focus Auto, semi-auto, manual
Aperture Max. F1.6
Zoom Speed Approx. 3.4 s
Illuminator
Supplement Light Type IR
Supplement Light Range IR Distance: up to 50 m
Smart Supplement Light Yes
IR Wavelength 850 nm
PTZ
Movement Range (Pan) 0° to 360°
Movement Range (Tilt) -5° to 90°
Pan Speed Pan speed: configurable from 0.1° to 300°/s; preset speed: 350°/s
Tilt Speed Tilt speed: configurable from 0.1° to 160°/s, preset speed 200°/s
Proportional Zoom Yes
Presets 300
Preset Freezing Yes
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Park Action Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust
Power-off Memory Yes
Video
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720);
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288);
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32192Kbps(MP2L2)/32Kbps(PCM)/16-64Kbps(AAC)
Audio Sampling Rate AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32kHz, 64 kHz
Environment Noise Filtering Yes
Network
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Version 18.12), Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users; 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE 10-11, Chrome 57+, Firefox 52+, Safari 11+
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR >52 dB
Defog Digital defog
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Audio 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Alarm 2 inputs, 2 outputs
Reset Yes
Event
Basic Event Motion detection, video tampering alarm, exception, alarm input and output
Smart Event Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Smart Tracking Manual tracking, auto-tracking
General
Power 12 VDC, Max. 18 W; PoE (802.3at)
Dimension Ø 169 mm × 161 mm (Ø 6.65' × 6.34')
Weight Approx. 2.45 kg (5.40 lb.)
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
General Function Mirror, password protection
Approval
Protection IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

- Bảo hành: 24 tháng.
