Phatsongwifi
Trung Quốc Thương hiệu: Hikvision

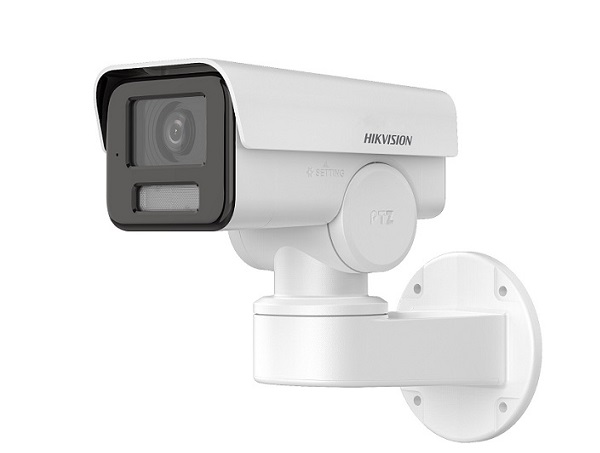

Camera IP PT 2.0 Megapixel HIKVISION DS-2CD1P27G2-LUF

Như mới - Giá bao rẻ
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP PT 2.0 Megapixel HIKVISION DS-2CD1P27G2-
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP PT 2.0 Megapixel HIKVISION DS-2CD1P27G2-LUF

- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.

- Độ phân giải: 2.0 Megapixel.

- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.

- Camera quan sát ảnh màu 24/7.

- Hỗ trợ đèn trợ sáng lên đến 30 mét.

- Tích hợp Mic.

- Hỗ trợ xoay ngang, dọc.

- Chức năng chống ngược sáng thực 120dB WDR.

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

Đặc tính kỹ thuật

Camera
Image Sensor 1/2.8 inch Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time 1/3 s to 1/100,000 s
Day & Night 24/7 color imaging
Angle Adjustment Pan: -100° to 100°, tilt: -20° to 45°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optiona
Focal Length & FOV 2.8 mm, horizontal FOV 106°, vertical FOV 57°, diagonal FOV 126°
4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°
Lens Mount M12
Iris Type Fixed
Aperture Max. F1.0
DORI
DORI 2.8 mm: D: 44 m, O: 17 m, R: 8 m, I: 4 m
4 mm: D: 56 m, O: 22 m, R: 11 m, I: 5 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Video
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type  Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control  CBR/VBR
Region of Interest (ROI)  1 fixed region for main stream
Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Network
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G (only -F model supports), Profile T), ISAPI, SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browse
Privacy Mask 4 regions of privacy mask
Interface
Ethernet Interface  1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256GB
Built-in Microphone Yes
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage Upload to FTP/memory card, send email, notify surveillance center, trigger recording, trigger capture
General
Power 12 VDC ± 25%, 0.91 A, max. 11 W, Ø 5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12.5 W
Material Front cover: metal, body: plastic, bracket: plastic
Dimension 197.1 mm × 105 mm × 225.4 mm
Weight Approx. 900g
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Anti-banding, heartbeat, password protection, password reset via email
Approval
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN
50130-4: 2011 + A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015, FCC: 47 CFR Part 15, Subpart B
Safety UL: UL 62368-1
CB: IEC 62368-1: 2014 + A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Environment CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection IP66: IEC 60529-2013

- Bảo hành: 24 tháng.
