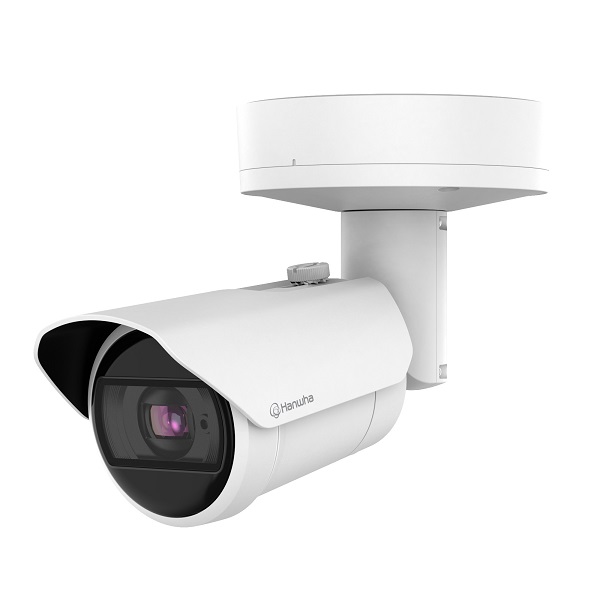

Camera IP hồng ngoại 4.0 Megapixel Hanwha Vision XNO-C7083R

- Cảm biến hình ảnh: 1/2.8” progressive CMOS.

- Độ phân giải: 4.0 Megapixel.

- Ống kính: 2.8~10mm (3.6x) motorized varifocal.

- Độ nhạy sáng: Color: 0.038Lux (F1.4, 1/30sec, 30IRE), 0Lux (IR LED on).

- Chuẩn nén: H.265/H.264.

- Tầm quan sát hồng ngoại: 40 mét.

- Chức năng chống ngược sáng extremeWDR (120dB).

- Chức năng quan sát ngày đêm Day & Night (ICR).

- Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear

- Tiêu chuẩn chống bụi và nước: IP66, IP67 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

Thông số kỹ thuật

Model XNO-C7083R
Video
Imaging Device 1/2.8 inch progressive CMOS
Resolution 2592x1520, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) (WDR off) Max. 30fps/25fps(60Hz/50Hz) (WDR on) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.038Lux(F1.4, 1/30sec, 30IRE) B/W: 0.0038Lux(F1.4, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps Color: 0.076Lux(F1.4, 1/60sec, 30IRE) B/W: 0.0076Lux(F1.4, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps
Video Out USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 2.8~10mm(3.6x) motorized varifocal
Max. Aperture Ratio F1.4(Wide) ~ F3.0(Tele)
Angular Field of View H: 109.7°(Wide) ~ 30.4°(Tele) V: 60.8°(Wide) ~ 17.8°(Tele) D: 131.3°(Wide) ~ 35.3°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus, Manual
Lens Type DC auto iris with hall sensor (IR corrected)
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR (120dB)
Digital Noise Reduction WiseNRⅡ (Based on AI engine), SSNRⅤ
Digital Image Stabilization Support (built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic
Gain Control Support
White Balance ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
LDC Support (Fill/stretch mode)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) prefer shutter control(Based on AI engine)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics - Analytics events based on AI engine: Object detection (Person/Face/Vehicle(car/bus/truck/motorcycle/bicycle)/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, Appear/Disappear, intrusion)
- Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection
Business Intelligence Based on AI engine: People counting, Queue management, Heatmap
Alarm I/O 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule
Alarm Events When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback
Audio In Selectable (mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length WiseIR 40m(131.23ft)
Network
Ethernet Metal shielded RJ-45 (10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual (5ea area), WiseStreamⅡ, WiseStreamⅢ (Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast (20 users) / Multicast Multiple streaming (Up to 10 profiles, 3 virtual channel support)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Application Programming Interface ONVIF Profile S/G/T SUNAPI (HTTP API) Wisenet open platform
General
Edge Storage Micro SD/SDHC/SDXC 1 slot 512GB
Memory 2GB RAM, 512MB Flash
Input Voltage / Current PoE (IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 12.95W, typical 10.8W 12VDC: Max 12.5W, typical 10.0W
Operating Temperature -40°C~+55°C(-40°F ~ +131°F)
Color / Material White / Aluminum + PC Hard-coated window
Certification IP66/IP67/NEMA4X, IK10
Dimension (WxHxD) Ø93.4x276.6mm
Weight 1640g

- Bảo hành: 24 tháng.

Camera IP hồng ngoại 4.0 Megapixel Hanwha Vision XNO-C7083R

- Cảm biến hình ảnh: 1/2.8” progressive CMOS.

- Độ phân giải: 4.0 Megapixel.

- Ống kính: 2.8~10mm (3.6x) motorized varifocal.

- Độ nhạy sáng: Color: 0.038Lux (F1.4, 1/30sec, 30IRE), 0Lux (IR LED on).

- Chuẩn nén: H.265/H.264.

- Tầm quan sát hồng ngoại: 40 mét.

- Chức năng chống ngược sáng extremeWDR (120dB).

- Chức năng quan sát ngày đêm Day & Night (ICR).

- Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Appear/Disappear

- Tiêu chuẩn chống bụi và nước: IP66, IP67 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

Thông số kỹ thuật

Model XNO-C7083R
Video
Imaging Device 1/2.8 inch progressive CMOS
Resolution 2592x1520, 2560x1440, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) (WDR off) Max. 30fps/25fps(60Hz/50Hz) (WDR on) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.038Lux(F1.4, 1/30sec, 30IRE) B/W: 0.0038Lux(F1.4, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fps Color: 0.076Lux(F1.4, 1/60sec, 30IRE) B/W: 0.0076Lux(F1.4, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps
Video Out USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 2.8~10mm(3.6x) motorized varifocal
Max. Aperture Ratio F1.4(Wide) ~ F3.0(Tele)
Angular Field of View H: 109.7°(Wide) ~ 30.4°(Tele) V: 60.8°(Wide) ~ 17.8°(Tele) D: 131.3°(Wide) ~ 35.3°(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus, Manual
Lens Type DC auto iris with hall sensor (IR corrected)
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR (120dB)
Digital Noise Reduction WiseNRⅡ (Based on AI engine), SSNRⅤ
Digital Image Stabilization Support (built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic
Gain Control Support
White Balance ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
LDC Support (Fill/stretch mode)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec) prefer shutter control(Based on AI engine)
Video Rotation Flip, Mirror, Hallway view(90°/270°)
Analytics - Analytics events based on AI engine: Object detection (Person/Face/Vehicle(car/bus/truck/motorcycle/bicycle)/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, Appear/Disappear, intrusion)
- Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection
Business Intelligence Based on AI engine: People counting, Queue management, Heatmap
Alarm I/O 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input, App event, Time schedule
Alarm Events When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback
Audio In Selectable (mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
IR Viewable Length WiseIR 40m(131.23ft)
Network
Ethernet Metal shielded RJ-45 (10/100BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Smart Codec Manual (5ea area), WiseStreamⅡ, WiseStreamⅢ (Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR MJPEG: VBR
Streaming Unicast (20 users) / Multicast Multiple streaming (Up to 10 profiles, 3 virtual channel support)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Application Programming Interface ONVIF Profile S/G/T SUNAPI (HTTP API) Wisenet open platform
General
Edge Storage Micro SD/SDHC/SDXC 1 slot 512GB
Memory 2GB RAM, 512MB Flash
Input Voltage / Current PoE (IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 12.95W, typical 10.8W 12VDC: Max 12.5W, typical 10.0W
Operating Temperature -40°C~+55°C(-40°F ~ +131°F)
Color / Material White / Aluminum + PC Hard-coated window
Certification IP66/IP67/NEMA4X, IK10
Dimension (WxHxD) Ø93.4x276.6mm
Weight 1640g

- Bảo hành: 24 tháng.
