Hàn Quốc Thương hiệu: Hanwha

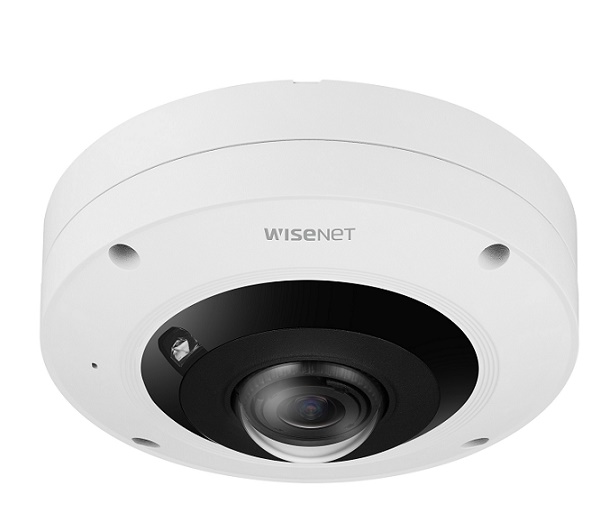

Camera IP Fisheye hồng ngoại 12.0 Megapixel Hanwha Vision XNF-9013RV

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Fisheye hồng ngoại 12.0 Megapixel Hanwha
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Fisheye hồng ngoại 12.0 Megapixel Hanwha Vision XNF-9013RV

- Cảm biến hình ảnh: 1/2.3 inch CMOS.

- Độ phân giải: 12MP.

- Chuẩn nén: H.265, H.264, MJPEG.

- Chế độ quan sát: Fisheye, Single panorama, Double panorama, Quad view.

- Hỗ trợ công nghệ AI:

   + Classified object type: Person/Face/Vehicle/License plate;

   + Support Detection Shot;

   + Object detection-Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit).

- Tầm quan sát hồng ngoại: Wise IR, PoE: 8m, PoE+: 13m.

- Hỗ trợ các chức năng camera: chống ngược sáng extremeWDR (120dB); WiseStreamⅢ based on AI.

- Hỗ trợ 2 khe cắm Mirco SD/SDHC/SDXC với dung lượng Max. 1TB (512GBx2ea).

- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

Thông số kỹ thuật

Video
Imaging Device 1/2.3 inch 12MP CMOS
Resolution Original view(1:1): 3008x3008~480x480,
Double panorama(2:1): 3584x1792~640x320,
Single panorama(4:1): 3584x896~640x160,
Quad view: 3584x2688~640x480,
Q1/Q2/Q3/Q4(4:3): 1792x1344~640x480
Max. Framerate H.265/H.264:
Original view-Max.30fps/25fps@3008x3008(60Hz/50Hz),
Double panorama-Max.30fps/25fps@3584x1792(60Hz/50Hz)
Single panorama-Max.30fps/25fps@3584x896(60Hz/50Hz)
MJPEG: Max.30fps/25fps@1080x1080(60Hz/50Hz)
Min. Illumination Color: 0.39 Lux (F2.2, 1/30sec), BW : 0Lux(IR LED on)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for Installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio) 1.08mm fixed focal
Max. Aperture Ratio F2.2
Angular Field of View H: 187° / V: 187° / D: 187°
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range Lens Rotation
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR (120dB)
Digital Noise Reduction WiseNRⅡ(Based on AI engine), SSNRⅤ
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control Off / Max Gain / Manual
White Balance ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Prefer shutter control(Based on AI engine)
Video Rotation Flip, Mirror
Analytics - Analytics events based on AI engine : Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, Appear/Disappear, intrusion)
- Analytics events : Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification
Business Intelligence Based on AI engine : People counting, Queue management, Heatmap
Alarm I/O 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ Preset
Handover
Audio playback
Audio In Selectable(mic in/line in/built-in mic)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max. output level: 1Vrms
IR Viewable Length Wise IR, PoE : 8m(26.25ft), PoE+ : 13m(42.65ft)
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Up to 5 virtual channel support
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)
Application Programming Interface ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 1TB(512GBx2)
Memory 4096MB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
POE+ Mode 55°C (Hysteresis 5°C) Wise IR 8m(26.25ft)
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 95% RH
Certification IP66, IK10, NEMA4X
Input Voltage PoE(IEEE802.3af, Class3), PoE+, 12VDC
Power Consumption PoE: Max 12.95W, typical 9.4W, 12VDC: Max 12.9W, typical 9.0W
PoE+: Max 23.0W, typical 9.4W, 12VDC: Max 22.0W, typical 9.0W
Mechanical
Color / Material White / Aluminum, Hard-coated dome bubble
RAL Code RAL9003
Product Dimensions / Weight Ø160x72mm,  1.170g
Hanging Mount (Dome) SBP-167HMW
Skin Cover SBC-160BF
Certifications & Standards
EMC FCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
Environment IEC/EN 63000
IEC 60529 IP66, IEC 62262 IK10
NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) 34.9m(114.49ft)
Observe (63PPM/ 19PPF) 13.9m(45.60ft)
Recognize (125PPM/ 38PPF) 7.0m(22.96ft)
Identify (250PPM/ 76PPF) 3.5m(11.48ft)

- Bảo hành: 24 tháng.
