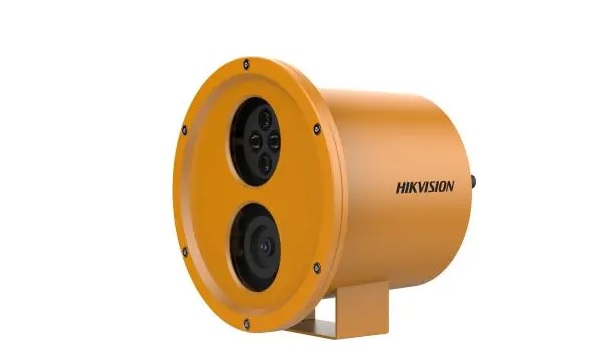

Camera IP dùng dưới nước 4.0 Megapixel HIKVISION DS-2XC6245G0-L

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP dùng dưới nước 4.0 Megapixel HIKVISION D
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP dùng dưới nước 4.0 Megapixel HIKVISION DS-2XC6245G0-L

- Cảm biến hình ảnh: 1/1.8 inch Progressive Scan CMOS

- Độ phân giải: 2688 × 1520.

- Độ phân giải tối thiểu: Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with Light.

- Hỗ trợ các tính năng camera: 120dB WDR, BLC, HLC, 3D DNR, defog.

- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264

- Tích hợp thẻ microSD/SDHC/SDXC, lên đến 128GB.

- Camera có thể sử dụng ở dưới nước lên đến 50 mét.

- Tiêu chuẩn chống bụi và nước: IP68 (thích hợp sử dụng trong nhà và ngoài trời).

- Điện áp: 36VDC, PoE.

- Kích thước: 210 x 210 x 205 mm.

- Trọng lượng: 12kg.

Thông số kỹ thuật

Camera
Image Sensor 1/1.8 inch Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with Light
Shutter Time 1/3 s to 1/100,000 s
Lens
Lens Type Varifocal lens, 3 to 9 mm
Focal Length & FOV 3 to 9 mm, horizontal FOV 87° to 45.8°, vertical FOV 46° to 25.6°, diagonal FOV 104° to 52.4°
Aperture F1.0
DORI
DORI Wide: D: 55.2 m, O: 21.9 m, R: 11.0 m, I: 5.5 m
Tele: D: 124.1 m, O: 49.3 m, R: 24.8 m, I: 12.4 m
Illuminator
Supplement Light Type White Light
Supplement Light Range Up to 10m
Video
Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for each stream
Target Cropping Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI, ISUP 5.0
User/Host Up to 32 users
3 levels: Administrator, Operator and User
Network Storage NAS (NFS, SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE10, IE11
Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC, HLC, 3D DNR, defog
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB
*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection, unattended baggage detection, object removal detection
General
Power 36 VDC ± 20%, 0.6 A, max. 17 W, two-core terminal block
PoE (802.3.at, Class 3, 42.5 V to 57 V), 0.45 A to 0.3 A, 17 W
Material SUS 316L Metal
Dimension 210 mm × 210 mm × 205 mm
Weight Approx. 12 kg
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 100% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat, password protection, privacy mask, watermark, IP address filter, mirror
Cable Length 50 m (164 ft.) (included)
Approval
EMC FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)
CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013)
RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015
IC: IC-VoC (ICES-003 Issue 7:2020)
KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14(2017.12.05), RRA NOTICE 2017-19 (2017.12.28)
Safety UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014
CB: IEC 62368-1:2014
BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015
LOA: SANS IEC60950-1
Protection IP68 (IEC 60529-2013)

- Bảo hành: 24 tháng.
