Phatsongwifi
Trung Quốc Thương hiệu: Hikvision

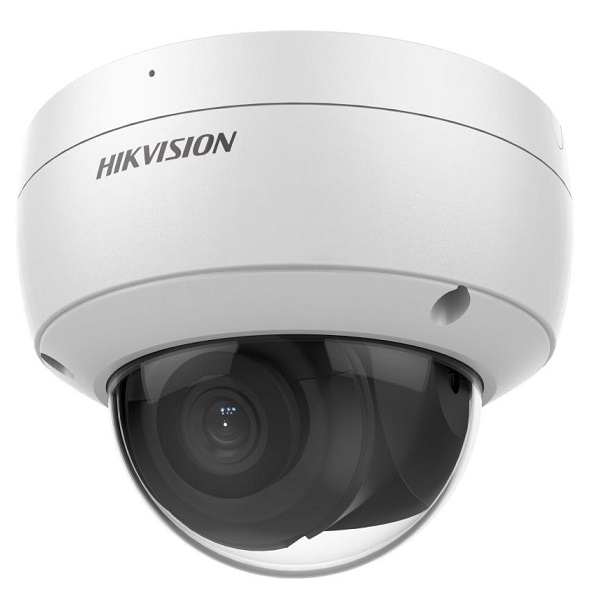

Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD3123G2-ISU

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD3123G2-ISU

- Cảm biến hình ảnh: 1/2.8” Progressive Scan CMOS.

- Độ phân giải: 1920 × 1080.

- Độ nhạy sáng: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR.

- Chuẩn nén hình ảnh: H.265/H.264/H.264+/H.265+.

- Ống kính: 2.8/4/6mm.

- Tầm quan sát hồng ngoại: 40 mét.

- Tích hợp Microphone.

- Cổng báo động: 1 input, 1 output.

- Hỗ trợ khe cắm thẻ nhớ microSD dung lượng 512GB.

- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

- Kích thước: Ø121.4 × 92.2 mm.

- Trọng lượng: 570g.

Thông số kỹ thuật

Model DS-2CD3123G2-ISU
Camera
Image Sensor 1/2.8' Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Lens Fixed focal lens, 2.8, 4, and 6 mm optional
FOV 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 127°
4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 104°
6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°
Aperture F1.6
Lens Mount M12
Iris Type Fixed
Illuminator
IR Range Up to 40 m
Wavelength 850 nm
Supplement Light IR
Video
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Audio
Environment Noise Filtering Yes
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Setting Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Image Enhancement BLC, HLC, 3D DNR, target cropping
Image Parameters Switch Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket
User/Host Up to 32 users. 3 user levels: administrator, operator and user
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Simultaneous Live View Up to 6 channels
Interface
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Built-in Microphone Yes
Audio 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amp
On-board Storage Built-in memory card slot, support microSD card, up to 512 GB
Communication Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Reset Key Yes
Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Linkage Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, trigger alarm output, audible warning
Deep Learning Function
Premier Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Supports human and vehicle targets classification
General
General Function Anti-flicker, heartbeat, password reset via email, pixel counter
Power Supply 12 VDC ± 25%, reverse polarity protection, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug
PoE: 802.3af, 36 V to 57 V, Class 3, 0.2 A to 0.15 A, max. 6.5 W
Ingress Protection IP67
Material Aluminum alloy body
Bubble: plastic
Dimensions Ø 121.4 mm × 92.2 mm
Weight 570g

- Bảo hành: 24 tháng.

Camera IP Dome hồng ngoại 2.0 Megapixel HIKVISION DS-2CD3123G2-ISU

- Cảm biến hình ảnh: 1/2.8” Progressive Scan CMOS.

- Độ phân giải: 1920 × 1080.

- Độ nhạy sáng: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR.

- Chuẩn nén hình ảnh: H.265/H.264/H.264+/H.265+.

- Ống kính: 2.8/4/6mm.

- Tầm quan sát hồng ngoại: 40 mét.

- Tích hợp Microphone.

- Cổng báo động: 1 input, 1 output.

- Hỗ trợ khe cắm thẻ nhớ microSD dung lượng 512GB.

- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

- Kích thước: Ø121.4 × 92.2 mm.

- Trọng lượng: 570g.

Thông số kỹ thuật

Model DS-2CD3123G2-ISU
Camera
Image Sensor 1/2.8' Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
Lens Fixed focal lens, 2.8, 4, and 6 mm optional
FOV 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 127°
4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 104°
6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°
Aperture F1.6
Lens Mount M12
Iris Type Fixed
Illuminator
IR Range Up to 40 m
Wavelength 850 nm
Supplement Light IR
Video
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub Stream 50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for main stream and sub-stream
Audio
Environment Noise Filtering Yes
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Setting Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Image Enhancement BLC, HLC, 3D DNR, target cropping
Image Parameters Switch Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket
User/Host Up to 32 users. 3 user levels: administrator, operator and user
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Simultaneous Live View Up to 6 channels
Interface
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Built-in Microphone Yes
Audio 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amp
On-board Storage Built-in memory card slot, support microSD card, up to 512 GB
Communication Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Reset Key Yes
Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Linkage Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, trigger alarm output, audible warning
Deep Learning Function
Premier Protection Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Supports human and vehicle targets classification
General
General Function Anti-flicker, heartbeat, password reset via email, pixel counter
Power Supply 12 VDC ± 25%, reverse polarity protection, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug
PoE: 802.3af, 36 V to 57 V, Class 3, 0.2 A to 0.15 A, max. 6.5 W
Ingress Protection IP67
Material Aluminum alloy body
Bubble: plastic
Dimensions Ø 121.4 mm × 92.2 mm
Weight 570g

- Bảo hành: 24 tháng.
