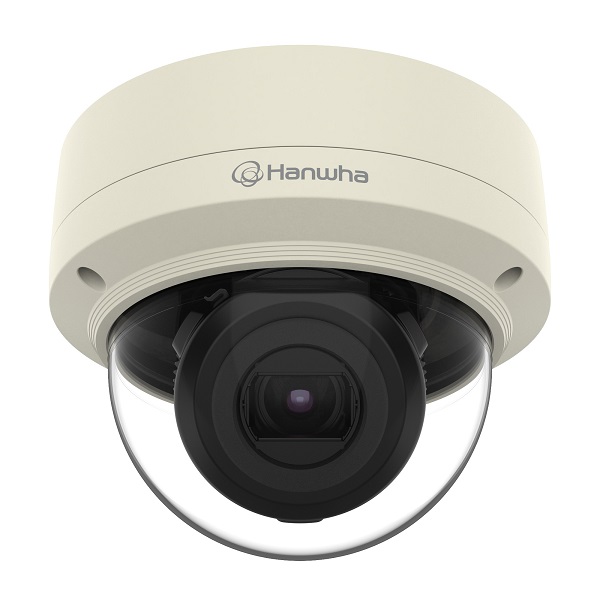

Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-6120

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-612
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-6120

- Cảm biến hình ảnh: 1/2.8 inch CMOS.

- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

- Hỗ trợ 2 khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ tối đa 512GB.

- Độ phân giải camera ip: 2.0 Megapixel.

- Ống kính: 5.2 ~ 62.4mm.

- Zoom quang: 12x.

- Zoom số: 24x.

- Hỗ trợ âm thanh 2 chiều.

- Chức năng quan sát Ngày và Đêm (ICR).

- Chức năng chống sương mù Defog.

- Chức năng ổn định hình ảnh số Defog với tích hợp cảm ứng Gyro.

- Chức năng phát hiện chuyển động.

- Hỗ trợ LDC (Lens Distortion Correction).

- Tiêu chuẩn chống thấm nước và bụi: IP67/ IP66 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

- Chức năng cấp nguồn qua mạng PoE.

- Nguồn điện: 12VDC, 24VAC.

- Kích thước: Ø160 x 128.45mm.

- Trọng lượng: 985g.

Đặc tính kỹ thuật

Video
Imaging Device	1/2.8 inch 2M CMOS
Total Pixels	1,945(H) x 1,109(V) 2.16M
Effective Pixels	1,945(H) x 1,097(V) 2.13M
Min. Illumination	Color: 0.03 Lux (F1.6, 1/30sec), B/W: 0.003 Lux (F1.6, 1/30sec)
Video Out	CVBS: 1.0 Vp-p / 75Ω Composite, 720 x 480(N), 720 x 576(P), for Installation
Video Out	USB: Micro USB Type B, 1280 x 720, for Installation
Lens
Focal Length (Zoom Ratio)	5.2 ~ 62.4mm (Optical 12X)
Max. Aperture Ratio	F1.6 (Wide) ~ F3.0 (Tele)
Angular Field of View	H: 54.58˚(Wide) ~ 5.30˚(Tele) / V: 32.19˚(Wide) ~ 3.00˚(Tele) / D: 61.40˚(Wide) ~ 6.06˚(Tele)
Focus Control	Auto / Manual / One shot AF
Lens / Mount Type	DC Auto Iris / Board-in Type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range	0° ~ 354° / 0° ~ 75° / 0° ~ 355°
Operational
Camera Title	Off / On (Displayed up to 85 Characters)
	- W/W : English / Numeric / Special Characters
	- China : English / Numeric / Special / Chinese Characters
	- Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
	Transparency, Auto scale by Resolution
Day & Night	Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation	Off / BLC / HLC / WDR
Wide Dynamic Range	150dB
Contrast Enhancement	SSDR (Off / On)
Digital Noise Reduction	SSNRV (2D + 3D Noise filter) (Off / On)
Digital Image Stabilization	Off / On (Built-in Gyro sensor)
Defog	Off / Auto / Manual
Motion Detection	Off / On (8ea, 8Point polygonal zones), Handover
Privacy Masking	32ea, polygonal zones
	- Color: Grey/Green/Red/Blue/Black/White
	- Mosaic
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
Contrast	Level Adjusment
LDC (Lens Distortion Correction)	Off / On (5 Levels with Min / Max)
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Digital Zoom	24x
Preset	300ea
Rotate Image	Flip, Mirror, Hallway view (90˚/270˚)
Video & Audio Analytics	Tampering, Loitering, Directional detection, Defocus Detection, Fog Detection, Virtual Line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion
Video & Audio Analytics	detection, Sound Classification
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Alarm Input, Motion detection, Video & Audio Analytics, Network disconnect
Alarm Events	File upload via FTP and e-mail
	Notification via e-mail
	SD/SDHC/SDXC or NAS recording at event triggers
	Alarm output
	DPTZ preset
Pixel Counter	Support
Network
Ethernet	RJ-45 (10/100BASE-T)
Video Compression Format	H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Resolution	1920x1080, 1280x1024, 1280x960, 1280x720,
Resolution	1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate	H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps at all resolutions
Smart Codec	Manual Mode (Area-Based : 5ea)
Bitrate Control	H.264/H.265: CBR or VBR
Bitrate Control	MJPEG: VBR
Streaming Capability	Multiple streaming (Up to 10 Profiles)
Audio In	Selectable (Mic in / Line in), Supply Voltage : 2.5V DC (4mA), Input Impedance : Approx. 2K Ohm
Audio Out	Line Out (3.5mm Mono Jack), Max Output Level: 1 Vrms
Audio Compression	G.711 u-law /G.726 Selectable
	G.726 (ADPCM) 8KHz, G.711 8KHz
	G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
	AAC-LC: 48Kbps at 16KHz
Audio Communication	Bi-directional (2-way)
IP	IPv4, IPv6
Protocol	TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security	HTTPS(SSL) Login Authentication
	Digest Login Authentication
	IP Address Filtering
	User access Log
	802.1X Authentication(EAP-TLS, EAP-LEAP)
Streaming Method	Unicast / Multicast
Max. User Access	20 Users at Unicast Mode
Edge Storage	SD / SDHC / SDXC 2Slot (Up to 512GB) - Continuous Recording (1st Slot to 2nd Slot)
	- Motion Images recorded in the SD / SDHC / SDXC Memory Card Can be Downloaded.
	NAS (Network Attached Storage), Local PC for Instant Recording
Application Programming Interface	ONVIF Profile S/G
	SUNAPI (HTTP API)
	Wisenet open platform
Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10. 10.11 10.12
	Non-Plugin Web Viewer
	Supported Browser: Google Chrome 56, MS Edge 39, Mozilla Firefox 49
	(Window 64bit only), Apple Safari 10 (Mac OS X only)
	Plug-in Web Viewer
	Supported Browser: MS Explore 11, Apple Safari 10 (Mac OS X only)
Central Management Software	SmartViewer
Environmental
Operating Temperature / Humidity	-40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity	-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90%
Certification	IP67, IP66, NEMA 4X / IK10
Electrical
Input Voltage	24VAC, 12VDC, PoE (IEEE802.3af Class3)
Power Consumption	24VAC: Max 8.2W, 12VDC: Max 7W, PoE: Max 7.8W
Mechanical
Color / Material	Ivory / Aluminum
Dimensions	Ø160 x 128.45mm
Weight	985g

- Bảo hành: 24 tháng.
