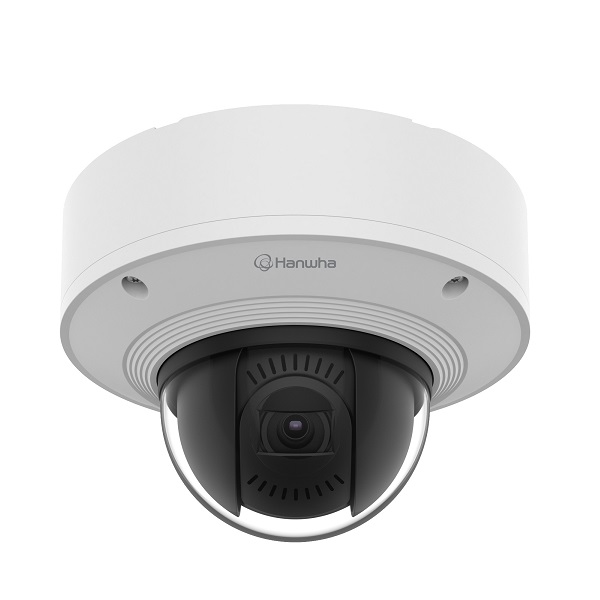

Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-6081Z

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-608
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-6081Z

- Cảm biến hình ảnh: 1/2.8 inch CMOS.

- Chuẩn nén hình ảnh: H.265, H.264. MJPEG.

- Hỗ trợ 2 khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ tối đa 512GB.

- Độ phân giải camera ip: 2.0 Megapixel.

- Độ nhạy sáng: 0.015Lux@F1.4 (Color), 0.0015 Lux@ F1.4.

- Chức năng quan sát Ngày và Đêm (ICR).

- Chức năng chống ngược sáng WDR.

- Hỗ trợ WiseStreamII.

- Tiêu chuẩn chống thấm nước: IP66, IP67 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10+.

- Chức năng cấp nguồn qua mạng PoE.

- Nguồn điện: 12VDC, 24VAC (tùy chọn).

Đặc tính kỹ thuật

VIDEO
Imaging Device	1/2.8 inch 2MP CMOS
Effective Pixels	1945(H) x 1097(V)
Min. Illumination	Color: 0.015Lux (F1.4, 1/30sec)
Min. Illumination	BW: 0.0015Lux (F1.4, 1/30sec)
Video Out	USB: Micro USB type B, 1280x720 for installation
LENS
Focal Length (Zoom Ratio)	2.8~12mm(4.3x) motorized varifocal
Max. Aperture Ratio	F1.4 (Wide) ~ F3.6 (Tele)
Angular Field of View	H: 119.5° (Wide)~27.9° (Tele)
	V: 62.8° (Wide)~15.7° (Tele)
	D: 142.1° (Wide)~32.0° (Tele)
Min. Object Distance	0.5m (1.64ft)
Focus Control	Simple focus
Lens Type	DC auto iris, P iris
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range	Remote adjustment (Max. 200cycles) ±175˚ / 0~85˚ / ±175˚
OPERATIONAL
Camera Title	Displayed up to 85 characters
Day & Night	Auto (ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range	150dB
Digital Noise Reduction	SSNR V
Digital Image Stabilization	Support
Defog	Support
Motion Detection	8ea, 8point polygonal zones
Privacy Masking	32ea, polygonal zones
	- Color : Grey/Green/Red/Blue/Black/White
	- Mosaic
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC	Support
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Digital PTZ	Support (Preset, Group)
Video Rotation	Flip, Mirror, Hallway view (90˚/270˚)
Analytics	Defocus detection, Directional detection, Fog detection, Face detection, Motion detection,
	Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line,
	Audio detection, Sound classification, Shock detection
Business Intelligence	People counting, Queue management, Heatmap
Alarm I / O	Input 1ea / Output 1ea
Alarm Triggers	Analytics, Network disconnect, Alarm input
Alarm Events	File upload via FTP and e-mail
	Notification via e-mail
	SD/SDHC/SDXC or NAS recording at event triggers
	Alarm output
	Handover
	Audio playback
Audio In	Selectable (mic in/line in),
Audio In	Supply voltage: 2.5VDC (4mA), Input impedance: 2K Ohm
Audio Out	Line out, Max.output level : 1Vrms
NETWORK
Ethernet	RJ-45 (10/100BASE-T)
Video Compression	H.265/H.264: Main / Baseline / High, MJPEG
Resolution	1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate	H.265/H.264: Max. 60fps/50fps (60Hz/50Hz)
Max. Framerate	MJPEG: Max. 30fps/25fps (60Hz/50Hz)
Smart Codec	Manual (5ea area), WiseStream II
Video Quality Adjustment	H.264/H.265 : Target bitrate level control
Video Quality Adjustment	MJPEG : Target bitrate level control
Bitrate Control	H.264/H.265 : CBR or VBR
Bitrate Control	MJPEG : VBR
Streaming	Unicast (20 users) / Multicast
Streaming	Multiple streaming (Up to 10 profiles)
Audio Compression	G.711 u-law / G.726 Selectable
	G.726 (ADPCM) 8KHz, G.711 8KHz
	G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
	AAC-LC : 48Kbps at 16KHz
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security	HTTPS (SSL) login authentication
	Digest login authentication
	IP address filtering
	User access log
	802.1X authentication (EAP-TLS, EAP-LEAP)
Edge Storage	Micro SD/SDHC/SDXC 2slot 512GB
Application Programming Interface	ONVIF Profile S/G
	SUNAPI (HTTP API)
	Wisenet open platform
Webpage Language	English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer	Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
	Recommended Browser: Google Chrome
	Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari (Mac OS X only)
Memory	1024MB RAM, 256MB Flash
ENVIRONMENTAL
Operating Temperature / Humidity	-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity	-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
Certification	IP67 / IP66 / IP6K9K, IK10+, NEMA4X
ELECTRICAL
Input Voltage	PoE (IEEE802.3af, Class3), 12VDC, 24VAC (Optional)
Power Consumption	PoE : Max 11W, typical 4.80W
	12VDC : Max 9.5W, typical 3.71W
	24VAC : Max 11W, typical 4.97W
MECHANICAL
Color / Material	White / Aluminum
RAL Code	RAL9003
Dimensions	Ø180x125mm
Weight	1.75kg

- Bảo hành: 24 tháng.
