Phatsongwifi
Hàn Quốc Thương hiệu: Hanwha

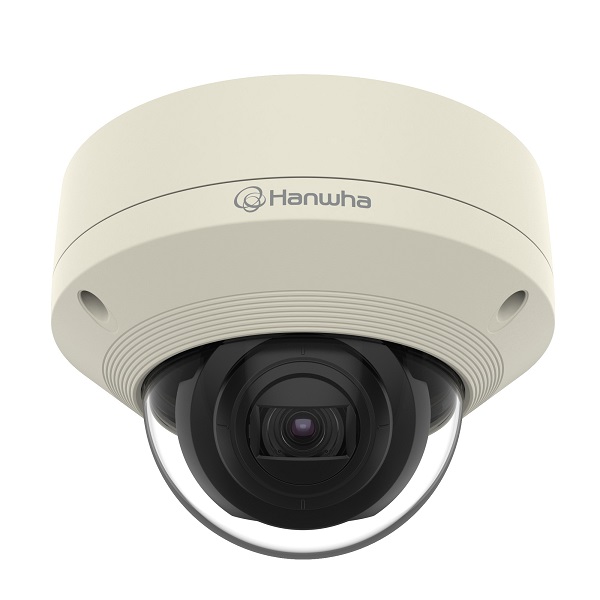

Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-6080

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-608
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-6080

- Cảm biến hình ảnh: 1/2 inch CMOS.

- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

- Hỗ trợ 2 khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ tối đa 512GB.

- Độ phân giải camera ip: 2.0 Megapixel.

- Độ nhạy sáng: 0.015 Lux@F0.94 (Màu), 0.0015 Lux@F0.94 (B / W).

- Ống kính (motorized varifocal): 2.8 ~ 12mm.

- Hỗ trợ âm thanh: 2 chiều.

- Chức năng quan sát Ngày và Đêm (ICR).

- Chức năng chống sương mù Defog.

- Chức năng báo động, phát hiện hướng, phát hiện sương mù, phát hiện âm thanh, theo dõi tự động kỹ thuật số, phân loại âm thanh, giả mạo.

- Tiêu chuẩn chống thấm nước và bụi: IP67, IP66 (thích hợp sử dụng trong nhà và ngoài).

- Tiêu chuẩn chống va đập: IK10.

- Chức năng cấp nguồn qua mạng PoE.

- Nguồn điện: 12VDC.

Đặc tính kỹ thuật

Video
Imaging Device 1/2.8 inch 2M CMOS
Total Pixels 1,945(H) x 1,109(V) 2.16M
Effective Pixels 1,945(H) x 1,097(V) 2.13M
Min. Illumination Color : 0.015Lux (F1.4, 1/30sec), B/W : 0.0015Lux (F1.4, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω Composite, 720 x 480(N), 720 x 576(P), for Installation
USB: Micro USB Type B, 1280 x 720, for Installation
Lens
Focal Length (Zoom Ratio) 2.8 ~ 12mm (4.3x) motorized varifocal
Max. Aperture Ratio F1.4(Wide) ~ F3.6(Tele)
Angular Field of View H : 119.5˚ ~ 27.9˚/ V : 62.8˚ ~ 15.7˚ / D : 142.1˚ ~ 32.0˚
Focus Control Simple focus(Motorized V/F)/ Manual, Remote control via network (Manual, Simple focus)
Lens / Mount Type DC Auto Iris / Board-in Type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67°/ 0° ~ 355°
Operational
Camera Title Off / On (Displayed up to 85 Characters)
- W/W : English / Numeric / Special Characters
- China : English / Numeric / Special / Chinese Characters
- Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
Transparency, Auto scale by Resolution
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC / HLC (Masking / Dimming) / WDR
Wide Dynamic Range 150dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRV (2D + 3D Noise filter) (Off / On)
Digital Image Stabilization Off / On
Digital PTZ 24x, Digital PTZ (Preset, Group)
Flip / Mirror Off / On, Hallway View : 90˚/270˚
Defog Off / Auto (Input from fog detection)/ Manual
Motion Detection Off / On (8ea, 8Point polygonal zones), Handover
Privacy Masking Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
Contrast Level Adjusment
LDC  (Lens Distortion Correction) Off / On (5 Levels with Min / Max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Digital Zoom 24x, Digital PTZ (Preset, Group)
Flip / Mirror Off / On, Hallway View : 90˚/270˚
Video & Audio Analytics Tampering, Loitering, Directional detection, Defocus Detection, Fog Detection, Virtual Line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motiondetection, Sound Classification
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Alarm Input, Motion detection, Video & Audio Analytics, Network disconnect
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
DPTZ preset
Pixel Counter Support
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression  Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720,
1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps at all resolutions
WiseStream II Support
Smart Codec Manual Mode (Area-Based : 5ea)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Capability Multiple streaming (Up to 10 Profiles)
Audio In Selectable (Mic in / Line in), Supply Voltage : 2.5V DC (4mA), Input Impedance : Approx. 2K Ohm
Audio Out Line out, Max output level : 1Vrms
Audio Compression G.711 u-law /G.726 Selectable
G.726 (ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Audio Communication Bi-directional (2-way)
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Max. User Access 20 Users at Unicast Mode
Edge Storage SD / SDHC / SDXC 2Slot (Up to 512GB) - Continuous Recording (1st Slot to 2nd Slot)
- Motion Images recorded in the SD / SDHC / SDXC Memory Card Can be Downloaded.
NAS (Network Attached Storage), Local PC for Instant Recording
Application Programming Interface ONVIF Profile S/G
SUNAPI (HTTP API)
Wisenet open platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10. 10.11 10.12
Non-Plugin Web Viewer
Supported Browser: Google Chrome 56, MS Edge 39, Mozilla Firefox 49
(Window 64bit only), Apple Safari 10 (Mac OS X only)
Plug-in Web Viewer
Supported Browser: MS Explore 11, Apple Safari 10 (Mac OS X only)
Central Management Software SmartViewer, SSM
Environmental
Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90%
Certification IP67, IP66, NEMA 4X / IK10
Electrical
Input Voltage 24VAC, 12VDC, PoE (IEEE802.3af Class3)
Power Consumption Max. 7W (12VDC), Max. 7.8W (PoE), Max. 8.2W (24VAC)
Mechanical
Color / Material Ivory / Aluminum
Dimensions Ø160 x 118.5mm
Weight 985g

- Bảo hành: 24 tháng.

Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-6080

- Cảm biến hình ảnh: 1/2 inch CMOS.

- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

- Hỗ trợ 2 khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ tối đa 512GB.

- Độ phân giải camera ip: 2.0 Megapixel.

- Độ nhạy sáng: 0.015 Lux@F0.94 (Màu), 0.0015 Lux@F0.94 (B / W).

- Ống kính (motorized varifocal): 2.8 ~ 12mm.

- Hỗ trợ âm thanh: 2 chiều.

- Chức năng quan sát Ngày và Đêm (ICR).

- Chức năng chống sương mù Defog.

- Chức năng báo động, phát hiện hướng, phát hiện sương mù, phát hiện âm thanh, theo dõi tự động kỹ thuật số, phân loại âm thanh, giả mạo.

- Tiêu chuẩn chống thấm nước và bụi: IP67, IP66 (thích hợp sử dụng trong nhà và ngoài).

- Tiêu chuẩn chống va đập: IK10.

- Chức năng cấp nguồn qua mạng PoE.

- Nguồn điện: 12VDC.

Đặc tính kỹ thuật

Video
Imaging Device 1/2.8 inch 2M CMOS
Total Pixels 1,945(H) x 1,109(V) 2.16M
Effective Pixels 1,945(H) x 1,097(V) 2.13M
Min. Illumination Color : 0.015Lux (F1.4, 1/30sec), B/W : 0.0015Lux (F1.4, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω Composite, 720 x 480(N), 720 x 576(P), for Installation
USB: Micro USB Type B, 1280 x 720, for Installation
Lens
Focal Length (Zoom Ratio) 2.8 ~ 12mm (4.3x) motorized varifocal
Max. Aperture Ratio F1.4(Wide) ~ F3.6(Tele)
Angular Field of View H : 119.5˚ ~ 27.9˚/ V : 62.8˚ ~ 15.7˚ / D : 142.1˚ ~ 32.0˚
Focus Control Simple focus(Motorized V/F)/ Manual, Remote control via network (Manual, Simple focus)
Lens / Mount Type DC Auto Iris / Board-in Type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67°/ 0° ~ 355°
Operational
Camera Title Off / On (Displayed up to 85 Characters)
- W/W : English / Numeric / Special Characters
- China : English / Numeric / Special / Chinese Characters
- Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White),
Transparency, Auto scale by Resolution
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC / HLC (Masking / Dimming) / WDR
Wide Dynamic Range 150dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRV (2D + 3D Noise filter) (Off / On)
Digital Image Stabilization Off / On
Digital PTZ 24x, Digital PTZ (Preset, Group)
Flip / Mirror Off / On, Hallway View : 90˚/270˚
Defog Off / Auto (Input from fog detection)/ Manual
Motion Detection Off / On (8ea, 8Point polygonal zones), Handover
Privacy Masking Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
Contrast Level Adjusment
LDC  (Lens Distortion Correction) Off / On (5 Levels with Min / Max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Digital Zoom 24x, Digital PTZ (Preset, Group)
Flip / Mirror Off / On, Hallway View : 90˚/270˚
Video & Audio Analytics Tampering, Loitering, Directional detection, Defocus Detection, Fog Detection, Virtual Line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motiondetection, Sound Classification
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Alarm Input, Motion detection, Video & Audio Analytics, Network disconnect
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
DPTZ preset
Pixel Counter Support
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression  Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720,
1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps at all resolutions
WiseStream II Support
Smart Codec Manual Mode (Area-Based : 5ea)
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Capability Multiple streaming (Up to 10 Profiles)
Audio In Selectable (Mic in / Line in), Supply Voltage : 2.5V DC (4mA), Input Impedance : Approx. 2K Ohm
Audio Out Line out, Max output level : 1Vrms
Audio Compression G.711 u-law /G.726 Selectable
G.726 (ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Audio Communication Bi-directional (2-way)
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Max. User Access 20 Users at Unicast Mode
Edge Storage SD / SDHC / SDXC 2Slot (Up to 512GB) - Continuous Recording (1st Slot to 2nd Slot)
- Motion Images recorded in the SD / SDHC / SDXC Memory Card Can be Downloaded.
NAS (Network Attached Storage), Local PC for Instant Recording
Application Programming Interface ONVIF Profile S/G
SUNAPI (HTTP API)
Wisenet open platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10. 10.11 10.12
Non-Plugin Web Viewer
Supported Browser: Google Chrome 56, MS Edge 39, Mozilla Firefox 49
(Window 64bit only), Apple Safari 10 (Mac OS X only)
Plug-in Web Viewer
Supported Browser: MS Explore 11, Apple Safari 10 (Mac OS X only)
Central Management Software SmartViewer, SSM
Environmental
Operating Temperature / Humidity -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90%
Certification IP67, IP66, NEMA 4X / IK10
Electrical
Input Voltage 24VAC, 12VDC, PoE (IEEE802.3af Class3)
Power Consumption Max. 7W (12VDC), Max. 7.8W (PoE), Max. 8.2W (24VAC)
Mechanical
Color / Material Ivory / Aluminum
Dimensions Ø160 x 118.5mm
Weight 985g

- Bảo hành: 24 tháng.
