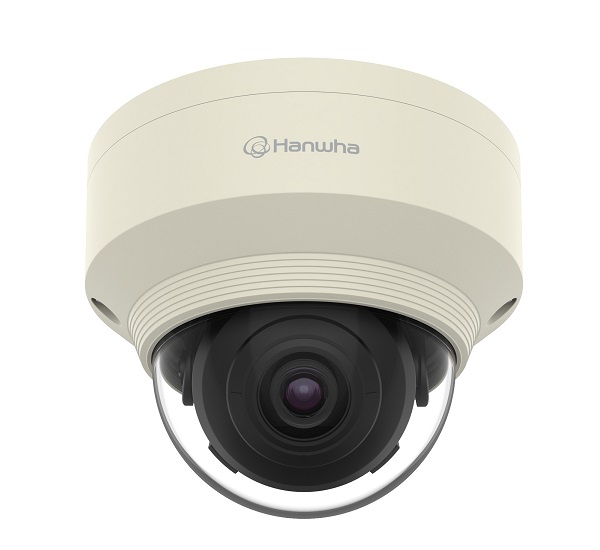

Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-6010

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-601
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-6010

- Cảm biến hình ảnh: 1/2.8 inch CMOS.

- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

- Hỗ trợ 2 khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ 512GB.

- Độ phân giải camera ip: 2.0 Megapixel.

- Độ nhạy sáng: (Color) 0.055 Lux (1/30sec, F2.0), (B/W) 0.0055 Lux (1/30sec, F2.0)

- Ống kính: 2.4mm (fixed).

- Hỗ trợ âm thanh: 2 chiều.

- Chức năng quan sát Ngày và Đêm (ICR).

- Chức năng chống sương mù Defog.

- Chức năng báo động, phát hiện hướng, phát hiện sương mù, phát hiện âm thanh, theo dõi tự động kỹ thuật số, phân loại âm thanh, giả mạo.

- Tiêu chuẩn chống thấm nước và bụi: IP67, IP66 (thích hợp sử dụng trong nhà và ngoài).

- Tiêu chuẩn chống va đập: IK10.

- Nguồn điện: 12VDC.

- Chức năng cấp nguồn qua mạng PoE.

Đặc tính kỹ thuật

VIDEO
Imaging Device 1/2.8 inch 2M CMOS
Total Pixels 1,945(H) x 1,109(V) 2.16M pixels
Effective Pixels 1,945(H) x 1,097(V) 2.13M pixels
Scanning System Progressive Scan
Min. Illumination Color : 0.055 Lux (1/30sec, F2.0)
B/W : 0.0055 Lux (1/30sec, F2.0)
S / N Ratio 50dB
Video Output CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
USB : Micro USB type B, 1280 x 720, for installation
LENS
Focal Length (Zoom Ratio) 2.4mm fixed
Max. Aperture Ratio F2.0
Angular Field of View H : 139˚ / V : 73˚ / D : 167˚
Min. Object Distance 0.4m (1.31ft)
Focus Control Manual
Lens / Mount Type Fixed / Board-in Type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67°/ 0° ~ 355°
OPERATIONAL
Camera Title Off / On (Displayed up to 85 characters)
- W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night Auto (ICR)/ Color/ B/W / External / Schedule
Backlight Compensation Off / BLC / HLC (Masking / Dimming) / WDR
Wide Dynamic Range 150dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRⅤ (2D + 3D Noise Filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto (input from fog detection) / Manual
Motion Detection  Off / On (8ea, 8point polygonal zones), Handover
Privacy Masking Off / On (32ea, polygonal zones) - Color : Grey / Green / Red / Blue / Black / White – Mosaic
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
Contrast Level adjustment
LDC Off / On (5 levels with min / max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital PTZ 24x, Digital PTZ (Preset, Group)
Flip / Mirror Off / On, Hallway view : 90˚ / 270˚
Video Analytics Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis) Appear, Face detection, Motion detection, Digital auto tracking, People counting, Heatmap, Queue management
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm Events File upload via FTP, E-mail, Notification via E-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, DPTZ preset
Pixel Counter Support
NETWORK
Ethernet RJ-45 (10/100 BASE-T)
Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240.
Max. Framerate H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps
Smart Codec Manual mode (area-based : 5ea)
WiseStreamⅡ Support
Video Quality Adjustment H.265 / H.264 / MJPEG : Target Bitrate Level Control
Bitrate Control Method H.265 / H.264 : CBR OR VBR, MJPEG : VBR
Streaming Capability Multiple Streaming (Up to 10 Profiles)
Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out, Max output level : 1Vrms
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8/16/32/48KHz
Audio Communication Bi-directional (2-way)
IP IPv4, IPv6
Protocol TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address
Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Max. User Access 20 users at Unicast Mode
Edge Storage SD/SDHC/SDXC 2slot (Up to 512GB) - Continuousrecording (1stslot to 2nd slot)
NAS (Network Attached Storage), Local PC for instant recording
Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Supported OS Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12. Non-plugin WebViewer
Supported Browser Google Chrome 54, MS Edge 38, Mozilla Firefox 49
(Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in WebViewer
- Supported Browser : MS Explore 11, Apple Safari 9 (Mac OS X only)
Central Management Software SmartViewer, SSM
ENVIRONMENTAL
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90%
Ingress Protection IP67, IP66
Vandal Resistance IK10
ELECTRICAL
Input Voltage / Current 12VDC ±10%, PoE (IEEE802.3af)
Power Consumption Max. 5.5W (12VDC), Max. 6W (PoE)
MECHANICAL
Color / Material Ivory / Metal
Dimensions Ø120.0 x 97.5mm
Weight 625g

- Bảo hành: 24 tháng.

Camera IP Dome 2.0 Megapixel Hanwha Vision XNV-6010

- Cảm biến hình ảnh: 1/2.8 inch CMOS.

- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.

- Hỗ trợ 2 khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lưu trữ 512GB.

- Độ phân giải camera ip: 2.0 Megapixel.

- Độ nhạy sáng: (Color) 0.055 Lux (1/30sec, F2.0), (B/W) 0.0055 Lux (1/30sec, F2.0)

- Ống kính: 2.4mm (fixed).

- Hỗ trợ âm thanh: 2 chiều.

- Chức năng quan sát Ngày và Đêm (ICR).

- Chức năng chống sương mù Defog.

- Chức năng báo động, phát hiện hướng, phát hiện sương mù, phát hiện âm thanh, theo dõi tự động kỹ thuật số, phân loại âm thanh, giả mạo.

- Tiêu chuẩn chống thấm nước và bụi: IP67, IP66 (thích hợp sử dụng trong nhà và ngoài).

- Tiêu chuẩn chống va đập: IK10.

- Nguồn điện: 12VDC.

- Chức năng cấp nguồn qua mạng PoE.

Đặc tính kỹ thuật

VIDEO
Imaging Device 1/2.8 inch 2M CMOS
Total Pixels 1,945(H) x 1,109(V) 2.16M pixels
Effective Pixels 1,945(H) x 1,097(V) 2.13M pixels
Scanning System Progressive Scan
Min. Illumination Color : 0.055 Lux (1/30sec, F2.0)
B/W : 0.0055 Lux (1/30sec, F2.0)
S / N Ratio 50dB
Video Output CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
USB : Micro USB type B, 1280 x 720, for installation
LENS
Focal Length (Zoom Ratio) 2.4mm fixed
Max. Aperture Ratio F2.0
Angular Field of View H : 139˚ / V : 73˚ / D : 167˚
Min. Object Distance 0.4m (1.31ft)
Focus Control Manual
Lens / Mount Type Fixed / Board-in Type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67°/ 0° ~ 355°
OPERATIONAL
Camera Title Off / On (Displayed up to 85 characters)
- W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night Auto (ICR)/ Color/ B/W / External / Schedule
Backlight Compensation Off / BLC / HLC (Masking / Dimming) / WDR
Wide Dynamic Range 150dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRⅤ (2D + 3D Noise Filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto (input from fog detection) / Manual
Motion Detection  Off / On (8ea, 8point polygonal zones), Handover
Privacy Masking Off / On (32ea, polygonal zones) - Color : Grey / Green / Red / Blue / Black / White – Mosaic
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
Contrast Level adjustment
LDC Off / On (5 levels with min / max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital PTZ 24x, Digital PTZ (Preset, Group)
Flip / Mirror Off / On, Hallway view : 90˚ / 270˚
Video Analytics Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis) Appear, Face detection, Motion detection, Digital auto tracking, People counting, Heatmap, Queue management
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm Events File upload via FTP, E-mail, Notification via E-mail, Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers, DPTZ preset
Pixel Counter Support
NETWORK
Ethernet RJ-45 (10/100 BASE-T)
Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240.
Max. Framerate H.265 / H.264: Max. 60fps at all resolutions, MJPEG: Max. 30fps
Smart Codec Manual mode (area-based : 5ea)
WiseStreamⅡ Support
Video Quality Adjustment H.265 / H.264 / MJPEG : Target Bitrate Level Control
Bitrate Control Method H.265 / H.264 : CBR OR VBR, MJPEG : VBR
Streaming Capability Multiple Streaming (Up to 10 Profiles)
Audio In Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
Audio Out Line out, Max output level : 1Vrms
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 8/16/32/48KHz
Audio Communication Bi-directional (2-way)
IP IPv4, IPv6
Protocol TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address
Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Max. User Access 20 users at Unicast Mode
Edge Storage SD/SDHC/SDXC 2slot (Up to 512GB) - Continuousrecording (1stslot to 2nd slot)
NAS (Network Attached Storage), Local PC for instant recording
Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Supported OS Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12. Non-plugin WebViewer
Supported Browser Google Chrome 54, MS Edge 38, Mozilla Firefox 49
(Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in WebViewer
- Supported Browser : MS Explore 11, Apple Safari 9 (Mac OS X only)
Central Management Software SmartViewer, SSM
ENVIRONMENTAL
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90%
Ingress Protection IP67, IP66
Vandal Resistance IK10
ELECTRICAL
Input Voltage / Current 12VDC ±10%, PoE (IEEE802.3af)
Power Consumption Max. 5.5W (12VDC), Max. 6W (PoE)
MECHANICAL
Color / Material Ivory / Metal
Dimensions Ø120.0 x 97.5mm
Weight 625g

- Bảo hành: 24 tháng.
