Phatsongwifi
Hàn Quốc Thương hiệu: Hanwha

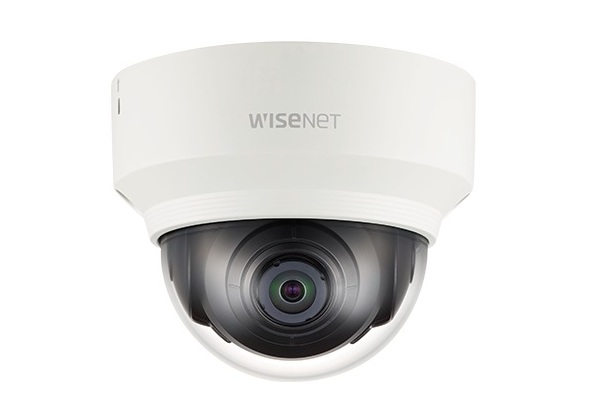

Camera IP Dome 2.0 Megapixel Hanwha Vision XND-6010

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP Dome 2.0 Megapixel Hanwha Vision XND-601
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP Dome 2.0 Megapixel Hanwha Vision XND-6010
-Cảm biến hình ảnh: 1/2.8 inch CMOS.
-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
-Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lên đến 512GB.
-Độ phân giải camera ip: 2.0 Megapixel.
-Ống kính fixed: 2.4mm.
-Góc quan sát theo chiều ngang: 139º; theo chiều dọc: 73º, theo phương chéo: 167º.
-Chức năng quan sát Ngày và Đêm (IR-CUT).
-Chức năng giảm nhiễu số SSNRV (2D + 3D).
-Chức năng chống sương mù Defog.
-Chức năng phát hiện chuyển động: Off / On (8ea, 8point polygonal zones), Handover.
-Chức năng chống ngược sáng WDR.
-1 ngõ vào báo động, 1 ngõ ra báo động.
-Hỗ trợ WiseStream II.
-Kết nối mạng: RJ-45 (10/100Base-T).
-Nguồn điện: 12VDC ±10%, PoE (IEEE802.3af).
-Chức năng cấp nguồn qua mạng PoE.
-Công suất tiêu thụ: Tối đa 5.5W (12VDC), tối đa 6W (PoE).
-Kích thước: Ø110.0 x 90.0mm.
-Trọng lượng: 365g.
Đặc tính kỹ thuật

Video
Imaging Device 1/2.8 inch 2M CMOS
Total Pixels 1,945(H) x 1,109(V)
Effective Pixels 1,945(H) x 1,097(V)
Scanning System Progressive Scan
Min. Illumination Color: 0.015Lux (F1.4, 1/30sec), B/W: 0.0015Lux (F1.4, 1/30sec)
S / N Ratio 50dB
Video Output CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
USB: micro USB type B, 1280 x 720 for installation
Lens
Focal Length (Zoom Ratio) 2.8 ~ 12mm (4.3x) motorized varifocal
Max. Aperture Ratio F1.4 (Wide) ~ F3.6 (Tele)
Angular Field of View H: 139º/ V: 73º / D: 167º
Min. Object Distance 0.4m
Focus Control Simple focus (Motorized V/F) / Manual - Remote control via network (Manual, Simple focus)
Lens Type  DC auto iris, P-Iris
Mount Type Board-in type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Operational
Camera Title Off / On (Displayed up to 85 characters)
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
Wide Dynamic Range 150dB
Contrast Enhancement (DWDR) SSNR (Off / On)
Digital Noise Reduction SSNRV (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto (Input from fog detection) / Manual
Motion Detection Off / On (8ea, 8point polygonal zones), Handover
Privacy Masking Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Contrast Level adjusment
LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker  (2 ~ 1/12,000sec)
Digital PTZ 24x, Digital PTZ (Preset, Group)
Flip / Mirror Off/On, Hallway view: 90º/270º
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm Events File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
Pixel Counter Support
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate H.264: Max. 60fps at all resolutions
MJPEG: 1280 x 1024, 1280 x 720, 1024 x 768: Max. 15fps. 800 x 600, 640 x 480, 320 x 240: Max. 30fps
Smart Codec Manual mode (Area-based: 5ea), Face detection mode
Video Quality Adjustment H.264: Compression level, Target bitrate level control, MJPEG: Quality level control
Streaming Capability Multiple streaming (Up to 10 profiles)
Bitrate Control Method H.264: CBR or VBR, MJPEG: VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in / Built in mic)
Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm
Audio Out Line out (3.5mm stereo mini jack)
Audio Compression Format G.711 u-law / G.726 selectable
G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Uni-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 20 users at unicast mode
Storage SD/SDHC/SDXC 2slot (Up to 512GB) - Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage), Local PC for instant recording
Application Programming Interface ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer Supported OS: Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X
10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
Central Management Software SmartViewer, SSM
ELECTRICAL
Input Voltage / Current PoE (IEEE802.3af, Class3)/ 12VDC
Power Consumption Max. 5.5W (12VDC), Max. 6W (PoE)
Color / Material Ivory / Metal
Dimensions Ø110 x 90mm
Weight 365g

-Bảo hành: 24 tháng.

Camera IP Dome 2.0 Megapixel Hanwha Vision XND-6010
-Cảm biến hình ảnh: 1/2.8 inch CMOS.
-Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
-Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lên đến 512GB.
-Độ phân giải camera ip: 2.0 Megapixel.
-Ống kính fixed: 2.4mm.
-Góc quan sát theo chiều ngang: 139º; theo chiều dọc: 73º, theo phương chéo: 167º.
-Chức năng quan sát Ngày và Đêm (IR-CUT).
-Chức năng giảm nhiễu số SSNRV (2D + 3D).
-Chức năng chống sương mù Defog.
-Chức năng phát hiện chuyển động: Off / On (8ea, 8point polygonal zones), Handover.
-Chức năng chống ngược sáng WDR.
-1 ngõ vào báo động, 1 ngõ ra báo động.
-Hỗ trợ WiseStream II.
-Kết nối mạng: RJ-45 (10/100Base-T).
-Nguồn điện: 12VDC ±10%, PoE (IEEE802.3af).
-Chức năng cấp nguồn qua mạng PoE.
-Công suất tiêu thụ: Tối đa 5.5W (12VDC), tối đa 6W (PoE).
-Kích thước: Ø110.0 x 90.0mm.
-Trọng lượng: 365g.
Đặc tính kỹ thuật

Video
Imaging Device 1/2.8 inch 2M CMOS
Total Pixels 1,945(H) x 1,109(V)
Effective Pixels 1,945(H) x 1,097(V)
Scanning System Progressive Scan
Min. Illumination Color: 0.015Lux (F1.4, 1/30sec), B/W: 0.0015Lux (F1.4, 1/30sec)
S / N Ratio 50dB
Video Output CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
USB: micro USB type B, 1280 x 720 for installation
Lens
Focal Length (Zoom Ratio) 2.8 ~ 12mm (4.3x) motorized varifocal
Max. Aperture Ratio F1.4 (Wide) ~ F3.6 (Tele)
Angular Field of View H: 139º/ V: 73º / D: 167º
Min. Object Distance 0.4m
Focus Control Simple focus (Motorized V/F) / Manual - Remote control via network (Manual, Simple focus)
Lens Type  DC auto iris, P-Iris
Mount Type Board-in type
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°
Operational
Camera Title Off / On (Displayed up to 85 characters)
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
Wide Dynamic Range 150dB
Contrast Enhancement (DWDR) SSNR (Off / On)
Digital Noise Reduction SSNRV (2D+3D noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto (Input from fog detection) / Manual
Motion Detection Off / On (8ea, 8point polygonal zones), Handover
Privacy Masking Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Contrast Level adjusment
LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker  (2 ~ 1/12,000sec)
Digital PTZ 24x, Digital PTZ (Preset, Group)
Flip / Mirror Off/On, Hallway view: 90º/270º
Intelligent Video Analytics Tampering, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm Events File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
Pixel Counter Support
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
Max. Framerate H.264: Max. 60fps at all resolutions
MJPEG: 1280 x 1024, 1280 x 720, 1024 x 768: Max. 15fps. 800 x 600, 640 x 480, 320 x 240: Max. 30fps
Smart Codec Manual mode (Area-based: 5ea), Face detection mode
Video Quality Adjustment H.264: Compression level, Target bitrate level control, MJPEG: Quality level control
Streaming Capability Multiple streaming (Up to 10 profiles)
Bitrate Control Method H.264: CBR or VBR, MJPEG: VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In Selectable (Mic in / Line in / Built in mic)
Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm
Audio Out Line out (3.5mm stereo mini jack)
Audio Compression Format G.711 u-law / G.726 selectable
G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Uni-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, NMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS (SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 20 users at unicast mode
Storage SD/SDHC/SDXC 2slot (Up to 512GB) - Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage), Local PC for instant recording
Application Programming Interface ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer Supported OS: Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
Supported Browser: Microsoft Internet Explorer (Ver. 8 ~ 11), Mozilla Firefox (Ver. 9 ~ 35), Google Chrome (Ver. 15 ~ 40), Apple Safari (Ver. 8.0.2(Mac OS X
10.10), 7.0.6 (Mac OS X 10.9), 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
Central Management Software SmartViewer, SSM
ELECTRICAL
Input Voltage / Current PoE (IEEE802.3af, Class3)/ 12VDC
Power Consumption Max. 5.5W (12VDC), Max. 6W (PoE)
Color / Material Ivory / Metal
Dimensions Ø110 x 90mm
Weight 365g

-Bảo hành: 24 tháng.
