Phatsongwifi
Hàn Quốc Thương hiệu: Hanwha

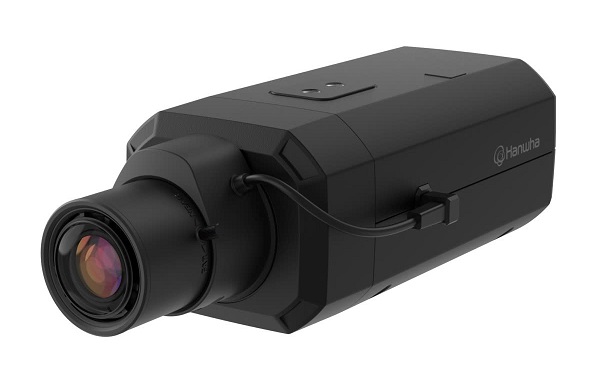

Camera IP 8.0 Megapixel Hanwha Vision XNB-9002

Hàng chính hãng
Giá: Liên hệ
Tình trạng
Hàng chính hãng, có CO CQ đầy đủ
Part Number
Camera IP 8.0 Megapixel Hanwha Vision XNB-9002
Kho hàng
Liên hệ
Mua nhiều
Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Yêu cầu báo giá
Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

Camera IP 8.0 Megapixel Hanwha Vision XNB-9002

- Cảm biến hình ảnh: 1/2.8-inch CMOS.

- Độ phân giải: 4K (3840x2160 pixel).

- Độ nhạy sáng tối thiểu: Color: 0.05Lux(F1.2, 1/30sec, 30IRE); BW: 0.005Lux(F1.2, 1/30sec, 30IRE).

- Camera hỗ trợ các chức năng: Quan sát ngày và đêm (ICR), chống ngược sáng WDR (120dB).

- Tính năng phân tích video (phát hiện mất nét, phát hiện hướng, phát hiện âm thanh, phát hiện rung động, phát hiện khuôn mặt/cơ thể trên).

- Theo dõi tự động kỹ thuật số, phân loại âm thanh.

- Tích hợp 2 khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng lên đến 1TB (512GBx2).

Thông số kỹ thuật

Video
Imaging Device 1/2.8-inch CMOS
Resolution 3840x2160, 3328x1872,3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux (F1.2, 1/30sec); B/W: 0.005Lux
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation
Lens
Focus Control Simple focus
Lens Type DC auto iris, P iris, Manual, I-CS
Mount Type C mount, CS mount
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto (ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extremeWDR (120dB)
Digital Noise Reduction SSNR V
Digital Image Stabilization Support (built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point Polygonal zones
Privacy Masking 32ea, polygonal zones
Gain Control Support
White Balance ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video Rotation Flip, Mirror, Hallway view (90°/270°)
Analytics Defocus detection, Directional detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Fog detection, Virtual line, Audio detection, Sound classification, Shock detection, Face/upper body detection
Business Intelligence People counting, Queue management, Heatmap
Serial Interface RS-485 (Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O 2 configurable I/O ports
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ Preset
Handover
Audio playback
Audio In Selectable (mic in/line in/Built-in mic)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Max.output level: 1Vrms
Network
Ethernet Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression H.265/H.264: Main/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726 (ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual (5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast (20 users) / Multicast
Multiple streaming (Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security HTTPS (SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)
CyberSecurity assuarance program UL CAP (UL 2900-1)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI (HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 1TB(512GBx2)
Memory 4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature/ Humidity -10°C ~ +55°C(+14°F ~ +131°F) / Less than 95% RH (non condensing)
Storage Temperature/ Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Input Voltage PoE (IEEE802.3af), 12VDC, 24VAC
Power Consumption PoE: Max 12.95W, typical 8.2W
12VDC: Max 11.5W, typical 7.5W
24VAC: Max 13.5W, typical 8.9W
Power redundancy failover
Mechanical
Color/ Material Black / Aluminum
Dimensions 81(W) x 67(H) x 165 (D) mm
Weight 0.88kg

- Bảo hành: 24 tháng.
