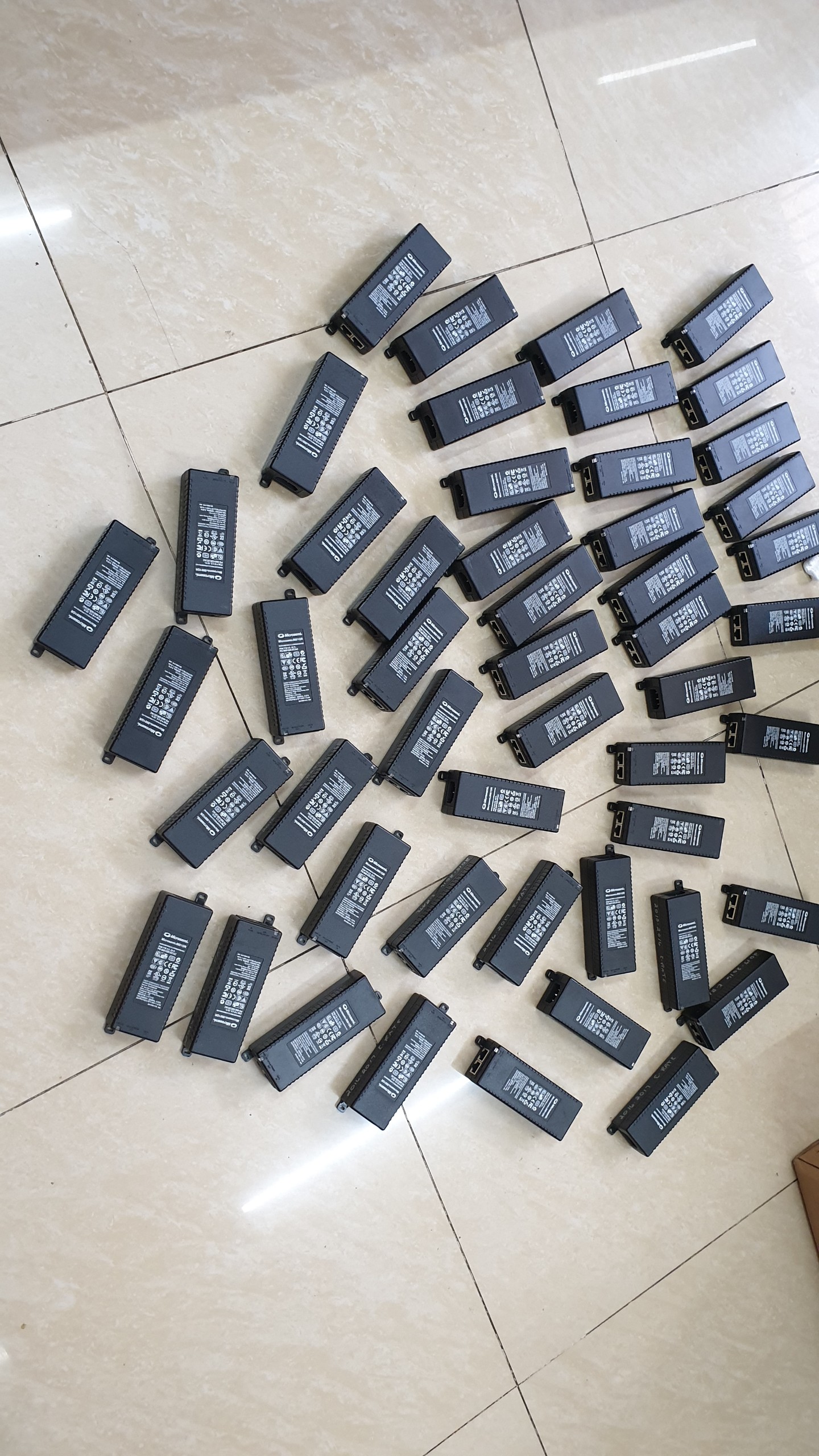

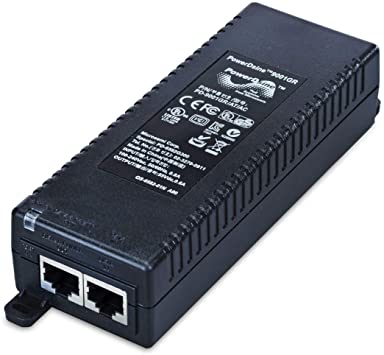

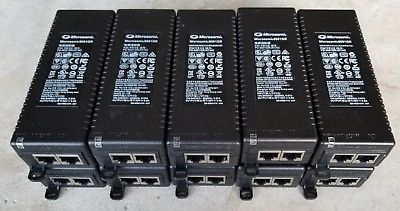

Bộ cấp nguồn POE PowerDsine PD-9001GR 802.3af PoE+ Injector (New 95%)
₫ 330.000320.000 ₫
Giảm 3%
Thời gian bảo hành: 12 tháng
Tình trạng hàng: Hàng đã qua sử dụng 98%
Tính năng: Là nguồn PoE (Power over Ethernet) sử dụng cho Aruba Access Point và camera IP hoặc Ip Phone. Công suất cao, độ bền lớn. Công suất 30Walt
Dịch vụ khuyến mãi: Khách hàng là đại lý của Muawifi.com, Phatsongwifi.com hoặc khách hàng cần mua số lượng vui lòng liên hệ 0901188385 - 0938912229 để có giá tốt.
Microsemi’s PD-9001GR is a single port, high-power solution for remote powering of current and emerging high power applications. Generating up to 30W, the PD-9001GR enables remote power for a new range of applications including 802.11ac Access Points, pan-tiltzoom (PTZ) cameras and video-phones. It complies with the IEEE 802.3at PoE+ standard and is backward compatible with IEEE802.3af. It can power both existing 10/100Base-T network devices and emerging wireless 1000Base-T devices such as wireless IEEE 802.11ac access points and IP Cameras.
Features
Single-port Gigabit PoE Midspan, 802.3at Compliant with 2-event classification
Backwards compatible with IEEE802.3af
30W output power from -20ºC to +40ºC, 25W output at +55ºC
1000Base-T compatible
Safe & reliable power over existing Ethernet infrastructure, only PoE devices receive power
Automatic detection and protection of non-standard devices
Plug-and-play installation
Guaranteed up-time.
Parameter
Description
No. of Ports
1
Pass Through Data Rates
10/100/1000 Mbps
Power over Ethernet Output
Pin Assignment and Polarity: 4/5 (+), 7/8 (–) Output Power Voltage: 55Vdc User Port Power: 36W Typ.
Input Power Requirements
AC Input Voltage: 100 to 240 Vac AC Input Current: 0.8A @100-240 Vac AC Frequency: 50 to 60 Hz
Dimensions
55 mm (W) x 32.5mm (H) x 140 mm (L)
Weight
.44 lbs (200g)
Indicator
AC Power (Yellow) Channel Power (Green)
Connectors
Shielded RJ-45, EIA 568A and 568B
Environmental Conditions
Operating Ambient Temp.:
-4°to 104°F (-20 to 40°C) @ 30W -4°to 131°F (-20 to 55°C) @ 22.5W
Operating Humidity:
Maximum 90%, non-condensing
Storage Temperature:
-4°to 158°F (-20°to 70°C)
Storage Humidity:
Maximum 95%, non-condensing
Warranty
1 year
Regulatory Compliance
IEEE 802.3at (PoE) RoHS Compliant, WEEE Compliant, CE
Electromagnetic Emissions & Immunity
FCC Part 15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI
Safety Approvals
UL/cUL Per IEC 60950-1 GS Mark Per IEC60950-1
Microsemi’s PD-9001GR is a single port, high-power solution for remote powering of current and emerging high power applications. Generating up to 30W, the PD-9001GR enables remote power for a new range of applications including 802.11ac Access Points, pan-tiltzoom (PTZ) cameras and video-phones. It complies with the IEEE 802.3at PoE+ standard and is backward compatible with IEEE802.3af. It can power both existing 10/100Base-T network devices and emerging wireless 1000Base-T devices such as wireless IEEE 802.11ac access points and IP Cameras.
Features
Single-port Gigabit PoE Midspan, 802.3at Compliant with 2-event classification
Backwards compatible with IEEE802.3af
30W output power from -20ºC to +40ºC, 25W output at +55ºC
1000Base-T compatible
Safe & reliable power over existing Ethernet infrastructure, only PoE devices receive power
Automatic detection and protection of non-standard devices
Plug-and-play installation
Guaranteed up-time.
Parameter
Description
No. of Ports
1
Pass Through Data Rates
10/100/1000 Mbps
Power over Ethernet Output
Pin Assignment and Polarity: 4/5 (+), 7/8 (–) Output Power Voltage: 55Vdc User Port Power: 36W Typ.
Input Power Requirements
AC Input Voltage: 100 to 240 Vac AC Input Current: 0.8A @100-240 Vac AC Frequency: 50 to 60 Hz
Dimensions
55 mm (W) x 32.5mm (H) x 140 mm (L)
Weight
.44 lbs (200g)
Indicator
AC Power (Yellow) Channel Power (Green)
Connectors
Shielded RJ-45, EIA 568A and 568B
Environmental Conditions
Operating Ambient Temp.:
-4°to 104°F (-20 to 40°C) @ 30W -4°to 131°F (-20 to 55°C) @ 22.5W
Operating Humidity:
Maximum 90%, non-condensing
Storage Temperature:
-4°to 158°F (-20°to 70°C)
Storage Humidity:
Maximum 95%, non-condensing
Warranty
1 year
Regulatory Compliance
IEEE 802.3at (PoE) RoHS Compliant, WEEE Compliant, CE
Electromagnetic Emissions & Immunity
FCC Part 15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity), VCCI
