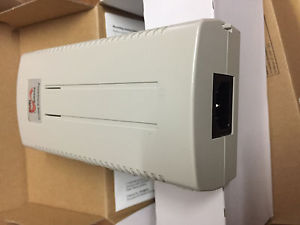

Tình trạng hàng: Hàng like new nhập trực tiếp từ USA
Tính năng: Là nguồn PoE (Power over Ethernet) sử dụng cho Aruba Access Point và camera IP hoặc Ip Phone. Công suất cao, độ bền lớn. Công suất 30Walt
Dịch vụ khuyến mãi: Khách hàng là đại lý của Muawifi.com, Phatsongwifi.com hoặc khách hàng cần mua số lượng vui lòng liên hệ 0901188385 - 0938912229 để có giá tốt.

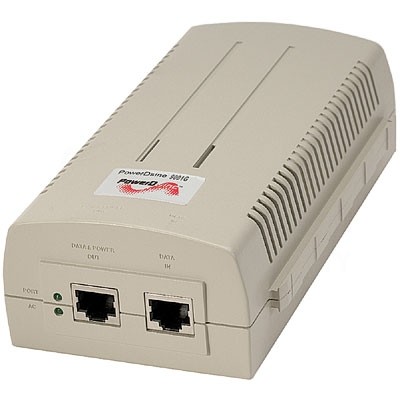

Microsemi’s PD-9001GR/SP is a single port, high-power solution for remote powering of current and emerging high power applications. The PD-9001GR/SP provides Surge Protection functionality optimal for the installation of outdoor PDs. Generating up to 30W, the PD-9001GR/SP enables remote power for a new range of applications including 802.11n access points, pan-tiltzoom (PTZ) cameras, and video-phones. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 100Base-TX network devices and emerging wireless 1000Base-T devices such as WiMAX and wireless IEEE 802.11n access points.
Features
IEEE 802.3at compliant with 2-event classification
IEEE 802.3af backward compatible
Output power of 30W is guaranteed
Supports 1000Base-T applications
Compatible with IEEE 802.3af devices and pre-standard devices
Safe: low power devices receive only the power they need
Automatic Detection and Protection of non–standard Ethernet terminals
Compact design fits easily in WLAN Access Point and IP Cameras installations
Feature
Description
No. of Ports
1
Data Rates
10/100/1000 Mbps
Power over Ethernet Output
Pin Assignment and Polarity: 4/5 (+), 7/8 (-)
Output Power Voltage: 54 Vdc
User Port Power
30 Watts (Guaranteed)
Input Power Requirements
AC Input Voltage: 100 to 240Vac
AC Input Current: 0.8A @ 100-240Vac
AC Frequency: 50 to 60Hz
Dimensions
62 mm (W) x 38 mm (H) x 151 mm (L)
2.44 in. x 1.5 in. x 5.94 in.
Weight
.75 lbs (340g)
Indicators
AC Power (Yellow)
Channel Power (Green)
Connectors
Shielded RJ-45, EIA 568A and 568B
Environmental Conditions
Operating Ambient Temperature: 14ºF to 131ºF (-10ºC to 55ºC)
Environmental Conditions
Reliability
Operating Humidity: Maximum 90%, Non-condensing
Storage Temperature: -4ºF to 158ºF (-20º to 70ºC)
Storage Humidity: Maximum 95%, Non-condensing
Operating Altitude: –1000 to 10,000 ft. (–304.8 to 3048 m)
MTBF: 240,000 hrs. @ 25ºC
Thermal Rating
20 BTU/Hr (@240VAC)
Warranty
1-year
Regulatory Compliance
IEEE 802.3af (PoE), RoHS Compliant,
WEEE Compliant, CE
Electromagnetic
Emission
& Immunity
FCC Part 15, Class B
EN 55022 Class B (Emissions)
EN 55024 (Immunity), VCCI
Surge Protection
Surge protection: EN61000-4-5
Meets surge protection as specified in: IEC61643-21
