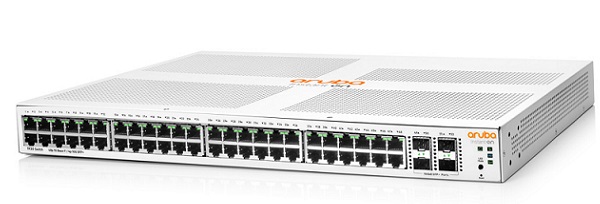

Aruba Instant On 1930 48G 4SFP/SFP+ Switch - JL685A

Hàng chính hãng

Giá: 12.650.000 ₫ 14.000.000 ₫ -10%

Tình trạng: Hàng chính hãng - New 100%
Part Number: Aruba Instant On 1930 48G 4SFP/SFP+ Switch - JL685
Kho hàng: Còn hàng
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0396827937 - 0901188385 để có giá tốt
Mô tả: Support 48 RJ-45 autosensing 10/100/1000 ports; 4 SFP/SFP+ 1000/10000 Mbps ports.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

HP Aruba Instant On 1930 48G 4SFP/SFP+ Switch JL685A

- Support 48 RJ-45 autosensing 10/100/1000 ports; 4 SFP/SFP+ 1000/10000 Mbps ports.

- CPU: ARM Cortex-A9 @ 800 MHz.

- Memory And Flash: 512MB SDRAM, 256MB flash.

- Packet buffer: 1.5MB.

- Dimensions (W x D x H): 44.25 x 28.24 x 4.39 cm (1U height).

- Weight: 3.13kg.

Model	JL685A
General
I/O Ports and Slots	48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
CPU	ARM Cortex-A9 @ 800 MHz
Memory And Flash	512 MB SDRAM 256 MB flash
Packet Buffer	1.5 MB
Safety	UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions	VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
Device Management	Aruba Instant On solution; Web browser; SNMP Manager
Performance
100Mb latency	100Mb latency: < 4.5 uSec Packet size: 64B
1000Mb latency	1000Mb latency: <2.2 uSec Packet size: 64B
10000Mb latency	10000Mb latency: <1.2 uSec Packet size: 64B
Throughput	Throughput (Mpps): 130.95 Mpps Packet size: 64B
Switching capacity	176 Gbps
Routing table size (# of static entries)	32
MAC address table size (# of entries)	16,000
Reliability MTBF (years)	114
Physical Characteristics
Dimensions (W x D x H)	44.25 x 28.24 x 4.39 cm (1U height)
Weight	3.13 kg
Environment
Operating temperature	32°F to 104°F (0°C to 40°C)
Operating relative humidity	15% to 95% @ 104°F (40°C)
Non-operating temperature	‑40°F to 158°F (‑40°C to 70°C)
Non-operating relative humidity	15% to 95% @ 140°F (60°C)
Altitude	Up to 10,000ft (3.048 Km)
Acoustic	Power: 0 dB (no fan)
Electrical Characteristics
Frequency	50-60 Hz
AC voltage	100 - 127/200 - 240 VAC
Current	0.8/0.5A
Maximum power rating	36.9 W
Idle power	16.8 W
Power supply	Internal power supply
