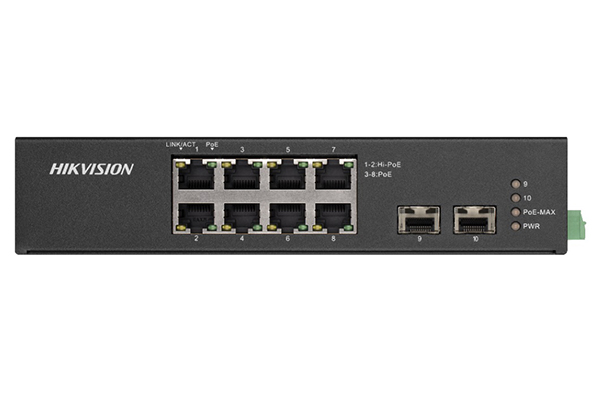

8-Port Gigabit Unmanaged Hi-PoE Switch HIKVISION DS-3T0510HP-E/HS

Hàng chính hãng

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: 8-Port Gigabit Unmanaged Hi-PoE Switch HIKVISION D
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

8-Port Gigabit Unmanaged Hi-PoE Switch HIKVISION DS-3T0510HP-E/HS

- DS-3T0510HP-E/HS switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and wider temperature (-30 to 65 °C) design on the basis of high-performance access to ensure stable data upload.

- The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.

- 6 × gigabit PoE RJ45 ports, 2 × gigabit Hi-PoE RJ45 ports and 2 × gigabit SFP fiber optical ports.

- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 90 W PoE output).

- IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).

- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.

- 6 KV surge protection for PoE ports.

- PoE output power management.

- Up to 300 m long-range transmission.

- PoE watchdog to auto detect and restart the cameras that do not respond.

- Port isolation to improve network security.

- Wider temperature (-30 to 65 °C) design.

- Wire-speed forwarding.

- Store-and-forward switching.

- Solid high-strength metal shell.

- Reliable fan-free design.

Specification

Model	DS-3T0510HP-E/HS
Network parameters
Port number	6 × gigabit PoE RJ45 ports, 2 × gigabit Hi-PoE RJ45 ports and 2 × gigabit SFP fiber optical ports
Port type	RJ45 port, full duplex, MDI/MDI-X adaptive
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
Forwarding mode	Store-and-forward switching
Working mode	Standard mode (default), Extend mode, Isolation mode, PoE watchdog mode
Ports for long-distance transmission	Ports 7 and 8
MAC address table	4 K
Switching capacity	20 Gbps
Packet forwarding rate	14.88 Mpps
Internal cache	1.5 Mbits
PoE power supply
PoE standard	Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 3 to 8: IEEE 802.3af, IEEE 802.3at
PoE power pin	Ports 1, 2, 7 and 8: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously. Ports 3 to 6: Ethernet cables 1/2/3/6 provide power supply
PoE port	Ports 3 to 8
Hi-PoE port	Ports 1 and 2
Max. port power	Ports 1 and 2: 90 W Ports 3 to 8: 30 W
PoE power budget	110 W
Dialing function
Long range	Ports 7 and 8: up to 300 m
Port isolation	Ports 1 to 8: port isolation mode to improve network security
PoE watchdog	Ports 1 to 8: auto detect and restart the cameras that do not respond
General
Shell	Metal material, fan-free design
Power supply	48 to 57 VDC, 2.5 A Max
Power consumption in idle	< 10 W
Max. power consumption	120 W
Power source	120 W
Dimension	197 × 114.2 × 42.2 mm
Weight	1.11 kg

- Bảo hành: 24 tháng.
