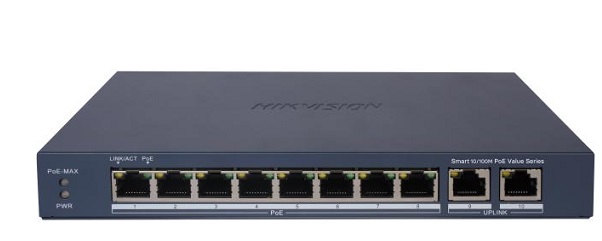

8-Port Fast Ethernet Smart PoE Switch HIKVISION DS-3E1310P-EI/M
Hàng chính hãng
Giá:
Liên hệ
- Tình trạng
- Hàng chính hãng, có CO CQ đầy đủ
- Part Number
- 8-Port Fast Ethernet Smart PoE Switch HIKVISION DS
- Kho hàng
- Liên hệ
- Mua nhiều
- Khách hàng cần mua số lượng vui lòng liên hệ 0777621381 - 0396827937 để có giá tốt.
Vận chuyển
Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.
8-Port Fast Ethernet Smart PoE Switch HIKVISION DS-3E1310P-EI/M
- 8 × 10/100M PoE port, 2 × Gigabit RJ45 port.
- Total PoE Power Budget 60W.
- Support 802.1Q VLAN.
- Support PoE watchdog to detect and restart the cameras that do not respond.
- Support STP/RSTP Loop prevention.
- Support cable detection to locate failure.
- Up to 300m Long Range PoE Transmission.
- 6kV Surge Protection.
Đặc tính kỹ thuật
| Network Parameters | |
| Ports | 8 × 10/100 Mbps PoE port, 2 × Gigabit RJ45 port |
| MAC Address Table | 4 K |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Internal Cache | 2 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 60 W |
| Software Function | |
| Long Range | Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition |
| Port Isolation | Ports 1 to 8: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond. |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. |
| System Maintenance | Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating. |
| General | |
| Shell | Metal material |
| Weight | 0.54 kg |
| Dimensions (W × H × D) | 217.6 mm × 27.6 mm × 108.5 mm |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | DC 54 V,1.2 A |
| Installation Mode | Desk-Mounted,Wall-Mounted |
| Max. Power Consumption | 65 W |
| Power Consumption in Idle | 3.2 W |
| Surge Protection | 6 kV |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
- Bảo hành: 24 tháng.
8-Port Fast Ethernet Smart PoE Switch HIKVISION DS-3E1310P-EI/M
- 8 × 10/100M PoE port, 2 × Gigabit RJ45 port.
- Total PoE Power Budget 60W.
- Support 802.1Q VLAN.
- Support PoE watchdog to detect and restart the cameras that do not respond.
- Support STP/RSTP Loop prevention.
- Support cable detection to locate failure.
- Up to 300m Long Range PoE Transmission.
- 6kV Surge Protection.
Đặc tính kỹ thuật
| Network Parameters | |
| Ports | 8 × 10/100 Mbps PoE port, 2 × Gigabit RJ45 port |
| MAC Address Table | 4 K |
| Switching Capacity | 5.6 Gbps |
| Packet Forwarding Rate | 4.17 Mpps |
| Internal Cache | 2 Mbits |
| PoE Power Supply | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| PoE Port | PoE: Ports 1 to 8 |
| Max. Port Power | 30 W |
| PoE Power Budget | 60 W |
| Software Function | |
| Long Range | Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition |
| Port Isolation | Ports 1 to 8: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond. |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. |
| System Maintenance | Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating. |
| General | |
| Shell | Metal material |
| Weight | 0.54 kg |
| Dimensions (W × H × D) | 217.6 mm × 27.6 mm × 108.5 mm |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | DC 54 V,1.2 A |
| Installation Mode | Desk-Mounted,Wall-Mounted |
| Max. Power Consumption | 65 W |
| Power Consumption in Idle | 3.2 W |
| Surge Protection | 6 kV |
| Approval | |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
- Bảo hành: 24 tháng.
