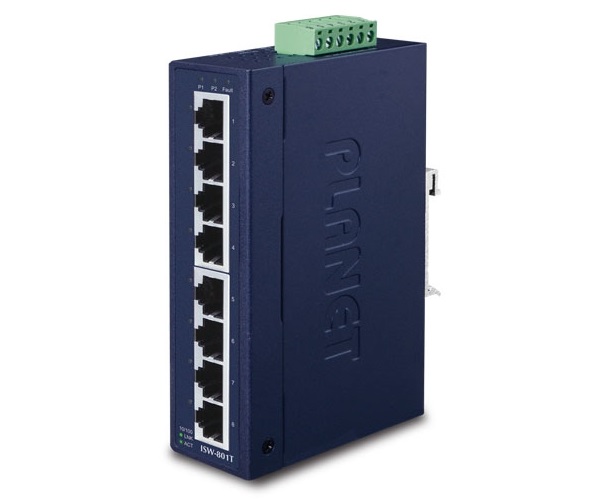

8-Port 10/100TX Fast Ethernet Switch PLANET ISW-801T

Giá sốc online

Giá: Liên hệ

Tình trạng: Hàng chính hãng, có CO CQ đầy đủ
Part Number: 8-Port 10/100TX Fast Ethernet Switch PLANET ISW-80
Kho hàng: Liên hệ
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Mô tả: Hàng chính hãng, có CO CQ đầy đủ

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

8-Port 10/100TX Fast Ethernet Switch PLANET ISW-801T

Physical Port

- 8-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function

Layer 2 Features

- Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard

- Supports auto-negotiation and 10/100Mbps half/full duplex mode

- High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth

- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)

- Backplane (switching fabric): 1.6Gbps

- Integrated address look-up engine, supporting 1K absolute MAC addresses

- Automatic address learning and address aging

Industrial Case & Installation

- IP30-rated metal case

- DIN rail and wall-mount design

- 12 to 48V DC, redundant power with polarity reverse protection function and connective removable terminal block for master and slave power, 24V AC power support

- Lower Power Consumption device in full load operation mode

- Supports EFT protection for 6000 VDC for power line

- Supports 6000 VDC Ethernet ESD protection

- -40 to 75 degrees C operating temperature

- Free fall, shock-proof and vibration-proof for industries

Specifications

Hardware
10/100BASE-TX Auto MDI/MDIX Ports	8
LED Indicators	3 x LED for System and Power Green: DC Power 1 Green: DC Power 2 Green: Power Fault 1x LED for each Copper Port Green: 10/100 LNK/ACT
Enclosure	IP30-rated metal case
Dimensions (W x D x H)	135 x 87 x 32 mm
Weight	428g
ESD Protection	6KV DC
EFT Protection	6KV DC
Power Requirements	12~48V DC, redundant power with polarity reverse protection function, 24V AC power support
Power Consumption/Dissipation	2.1 watts/7.1BTU
Installation	DIN rail kit and wall-mount ear
Alarm	Provides one relay output for power failure Alarm relay current carry ability: 3A @ DC 30V
Connector	Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Switch
Switch Processing Scheme	Store-and-Forward
Address Table	1K
Buffer Memory	Embedded 448K bits packet buffer
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Switch Fabric	1.6Gbps
Throughput (packet per second)	1.19Mpps
Network Cables	10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters
Standards Conformance
Standards Compliance	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet
Temperature	Operating: -40~75 degrees C Storage: -40~75 degrees C
Humidity	Operating: 5% to 95%, Storage: 5% to 95% (non-condensing)

- Sản xuất tại Đài Loan.

- Bảo hành: 12 tháng.
