Đài Loan Thương hiệu: Planet

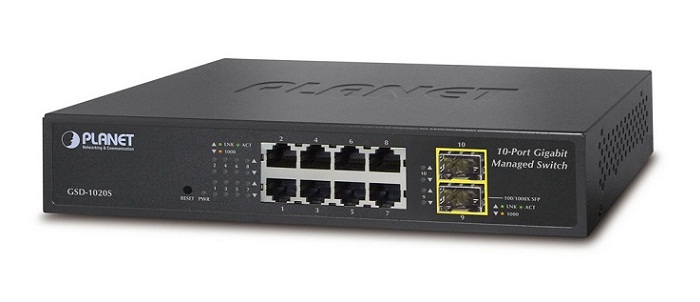

8-Port 10/100/1000Mbps + 2-Port 100/1000X SFP Managed Ethernet Switch PLANET GSD-1020S

Hàng đẹp, như mới

Giá: Liên hệ

Part Number: 8-Port 10/100/1000Mbps + 2-Port 100/1000X SFP Mana
Mua nhiều: Khách hàng cần mua số lượng vui lòng liên hệ 0396827937 - 0777621381 - 0901188385 để có giá tốt.
Mô tả: Hàng chính hãng, có CO CQ đầy đủ

Vận chuyển

Giao hàng toàn quốc. Chúng tôi sử dụng các dịch vụ giao hàng và thanh toán tại nhà (COD) của Giaohangtietkiem, Viettel Post, GHN và những dịch vụ khác để giao hàng đến quý khách hàng trong thời gian sớm nhất.

Bán hàng Mr. Đức, Mr. Thành, Mr. Quan, Mr. Thịnh, Mr. Vinh

8-Port 10/100/1000Mbps + 2-Port 100/1000X SFP Managed Ethernet Switch PLANET GSD-1020S

- 8 cổng RJ45 10/100/1000Base-T + 2 cổng 100/1000Base-X SFP.

- Các tính chất Store-and-Forward mode với các tốc độ dây và forwarding.

- Hỗ trợ 8K cho các địa chỉ MAC.

- Hỗ trợ 10K cho gói Jumbo.

- Hỗ trợ chức năng Auto-MDI/MDI-X.

- Hỗ trợ giao thức CSMA/CD.

- Thiết kế theo chuẩn A: FCC, CE.

Physical Ports

- 8 10/100/1000Mbps Gigabit Ethernet ports with auto-MDI/MDI-X supported.

- 2 100/1000Base-X mini-GBIC/SFP slots.

Layer 2 Features

- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex).

- High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth.

- Supports VLAN.

- IEEE 802.1Q tagged VLAN.

- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad).

- Protocol VLAN.

- Voice VLAN.

- Private VLAN.

- Management VLAN.

- GVRP.

- Supports Spanning Tree Protocol

- STP (Spanning Tree Protocol).

- RSTP (Rapid Spanning Tree Protocol).

- MSTP (Multiple Spanning Tree Protocol).

- STP BPDU Guard, BPDU Filtering and BPDU Forwarding.

- Supports Link Aggregation

- IEEE 802.3ad Link Aggregation Control Protocol (LACP).

- Cisco ether-channel (Static Trunk).

- Maximum 8 trunk groups, up to 8 ports per trunk group.

- Provides Port Mirror (many-to-1).

- Loop protection to avoid broadcast loops.

Quality of Service

- Ingress / Egress Rate Limit per port bandwidth control.

- Storm Control support.

- Broadcast / Unknown-Unicast / Unknown-Multicast.

- Traffic classification:

- IEEE 802.1p CoS.

- TOS / DSCP / IP Precedence of IPv4/IPv6 packets.

- Strict priority and Weighted Round Robin (WRR) CoS policies.

Multicast

- Supports IGMP Snooping v2 and v3.

- Supports MLD Snooping v1, v2.

- IGMP Querier mode support.

- IGMP Snooping port filtering.

- MLD Snooping port filtering.

Security

- Authentication

- IEEE 802.1X Port-based network access authentication.

- Built-in RADIUS client to co-operate with the RADIUS servers.

- RADIUS / TACACS+ login user access authentication.

- Access Control List

- IPv4 / IPv6 IP-based ACL.

- MAC-based ACL.

- MAC Security

- Static MAC.

- MAC Filtering.

- Port Security for Source MAC address entries filtering.

- DHCP Snooping to filter distrusted DHCP messages.

- Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding.

- IP Source Guard prevents IP spoofing attacks.

- DoS Attack Prevention.

- SSH/SSL.

Management

- IPv4 and IPv6 dual stack management.

- Switch Management Interface.

- Web switch management.

- Telnet Command Line Interface.

- SNMP v1, v2c and v3.

- SSH / SSL secure access.

- User Privilege Levels Control.

- Built-in Trivial File Transfer Protocol (TFTP) client.

- BOOTP and DHCP for IP address assignment.

- System Maintenance.

- Firmware upload / download via HTTP / TFTP.

- Configuration upload / download through Web interface.

- Hardware reset button for system reboot or reset to factory default.

- SNTP Network Time Protocol.

- Cable Diagnostics.

- Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED.

- SNMP trap for interface Link Up and Link Down notification.

- Event message logging to remote Syslog server.

- Four RMON groups (history, statistics, alarms, and events).

- PLANET Smart Discovery Utility.

Đặc tính kỹ thuật

Hardware Specifications
Copper Ports	8 x 10/100/1000Base-T RJ45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	2 100/1000Base-X SFP interfaces
SFP/mini-GBIC Slots	Supports 100/1000Mbps dual mode and DDM
Switch Architecture	Store-and-Forward
Switch Fabric	20Gbps / non-blocking
Switch Throughput @ 64Bytes	14.8Mpps
Address Table	8K entries
Shared Data Buffer	512K Bytes
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
Jumbo Frame	10K bytes
Reset Button	< 5 sec: System reboot
Reset Button	> 5 sec: Factory default
LED	System:
	Power (Green)
	10/100/1000T RJ45 Interfaces (Port 1 to Port 8):
	1000Mbps (Orange), LNK/ACT (Green)
	100/1000Mbps SFP Interfaces (Port 9 to Port 10):
	1000Mbps (Orange), LNK/ACT (Green)
Layer 2 Functions
Port Mirroring	TX / RX / Both
Port Mirroring	Many-to-1 monitor
VLAN	802.1Q Tagged-based VLAN
	Up to 256 VLAN groups, out of 4094 VLAN IDs
	802.1ad Q-in-Q tunneling
	Voice VLAN
	Protocol VLAN
	Private VLAN (Protected port)
	GVRP
Link Aggregation	IEEE 802.3ad LACP and static trunk
Link Aggregation	Supports 8 groups of 8-port trunk
Spanning Tree Protocol	STP / RSTP / MSTP
IGMP Snooping	IGMP (v2/v3) Snooping
	IGMP Querier
	Up to 256 multicast groups
MLD Snooping	MLD (v1/v2) Snooping, up to 256 multicast groups
Access Control List	IPv4/IPv6 IP-based ACL / MAC-based ACL
QoS	8 mapping ID to 8 level priority queues
	- Port Number
	- 802.1p priority
	- 802.1Q VLAN tag
	- DSCP field in IP Packet
	Traffic classification based, Strict priority and WRR
Security	IEEE 802.1X - Port-based authentication
	Built-in RADIUS client to co-operate with RADIUS server
	RADIUS / TACACS+ user access authentication
	IP-MAC port binding
	MAC Filter
	Static MAC Address
	DHCP Snooping and DHCP Option82
	STP BPDU Guard, BPDU Filtering and BPDU Forwarding
	DoS Attack Prevention<
